Plain bearing sintered bronze with collar

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Couplings Rigid couplings Keyless locking couplings Cardan joints Quick-fit couplings Bearings Seals
      - Plain bearing
        Plain bearing sintered bronze with collar

Item description/product images

DescriptionMaterial:Sintered bronze similar to SINT A50.Version:Oil impregnated (ca. 25 percent by volume oil).
Hardness min. 25 HB.Note:The sintered bronze plain bearings are oil impregnated, self-lubricating, maintenance-free and ready for installation. During rotation the oil is applied to the shaft and absorbed by the bearing through capillary effect when stationary. Additional lubrication is not required under normal operating conditions.Technical data:Static load: max. 70 N/mm²
Dynamic load: max. 20 N/mm²
Friction coefficient, dry: 0.05 to 0.10
Sliding speed: max. 6 m/s
Maximum pv value: 2,45 N/mm² * m/s

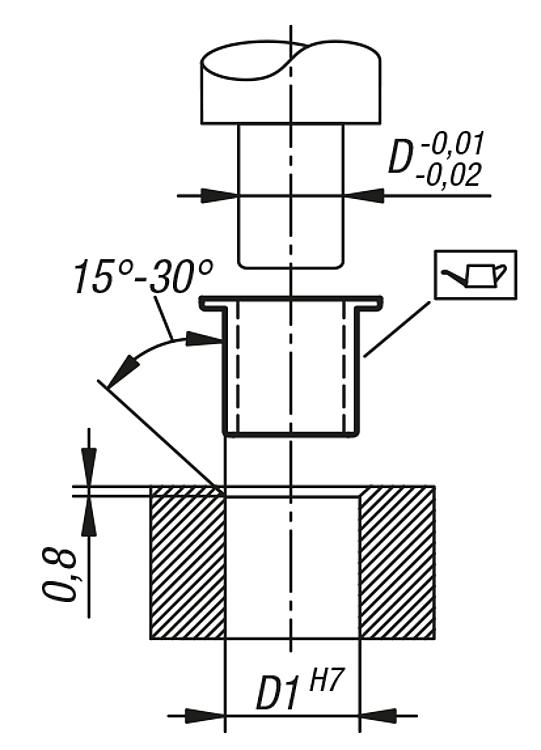

Temperature range: -20 °C to +100 °CAssembly:Press in plain bearings, do not hammer in. The use of a suitable press mandrel is advisable. Without a mandrel there is a risk that the bearing may deform during installation. After press-fitting into a housing with bore H7 the bore D has a H7 tolerance.Tolerances:Housing:
Recommended tolerance H7.

Shaft:
Recommended tolerance h6 to h9. Hardened or non-hardened ground shafts can be used (for secondary applications drawn shafts can also be used).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23761 Plain bearing sintered bronze with collar

294 kB

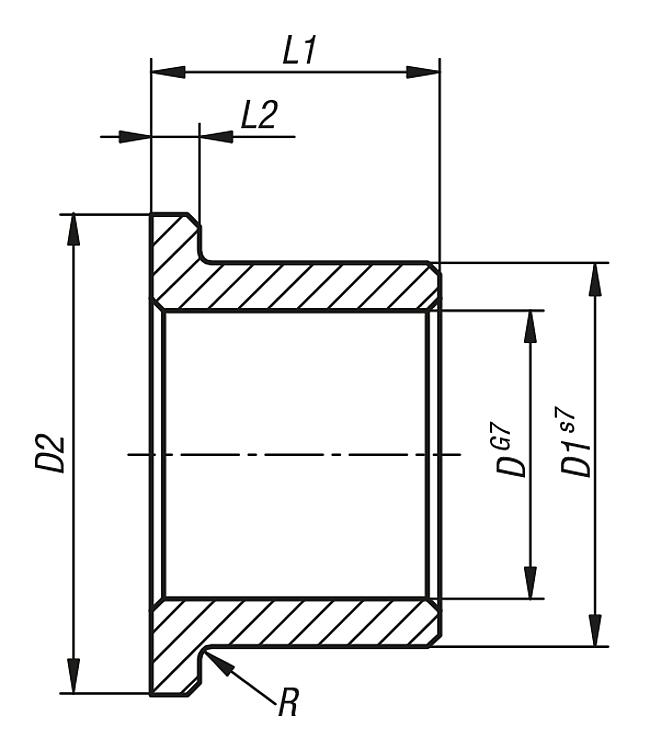

Drawings

Item selection/filter

Order No.	D	D1	D2	L1	L2	R	Price
23761-00400804	4	8	12	4	2	0,3	on request
23761-00400808	4	8	12	8	2	0,3	on request
23761-00601006	6	10	14	6	2	0,3	on request
23761-00601010	6	10	14	10	2	0,3	on request
23761-00601016	6	10	14	16	2	0,3	on request
23761-00801208	8	12	16	8	2	0,3	on request
23761-00801212	8	12	16	12	2	0,3	on request
23761-00801216	8	12	16	16	2	0,3	on request
23761-01001310	10	13	16	10	1,5	0,6	on request
23761-01001316	10	13	16	16	1,5	0,6	on request
23761-01001510	10	15	20	10	2,5	0,6	on request
23761-01001516	10	15	20	16	2,5	0,6	on request
23761-01001610	10	16	22	10	3	0,6	on request
23761-01001616	10	16	22	16	3	0,6	on request
23761-01201512	12	15	18	12	1,5	0,6	on request
23761-01201516	12	15	18	16	1,5	0,6	on request
23761-01201712	12	17	22	12	2,5	0,6	on request
23761-01201716	12	17	22	16	2,5	0,6	on request
23761-01201812	12	18	24	12	3	0,6	on request
23761-01201820	12	18	24	20	3	0,6	on request
23761-01401814	14	18	22	14	2	0,6	on request
23761-01402014	14	20	26	14	3	0,6	on request
23761-01502015	15	20	25	15	3	0,6	on request
23761-01502020	15	20	25	20	3	0,6	on request
23761-01602016	16	20	24	16	2	0,6	on request
23761-01602020	16	20	24	20	2	0,6	on request
23761-01602216	16	22	28	16	3	0,6	on request
23761-01602220	16	22	28	20	3	0,6	on request
23761-01602225	16	22	28	25	3	0,6	on request
23761-01802218	18	22	26	18	2	0,6	on request
23761-01802418	18	24	30	18	3	0,6	on request
23761-02002416	20	24	28	16	2	0,6	on request
23761-02002420	20	24	28	20	2	0,6	on request
23761-02002616	20	26	32	16	3	0,6	on request
23761-02002620	20	26	32	20	3	0,6	on request
23761-02002625	20	26	32	25	3	0,6	on request
23761-02002632	20	26	32	32	3	0,6	on request
23761-02202815	22	28	34	15	3	0,6	on request
23761-02202820	22	28	34	20	3	0,6	on request
23761-02202825	22	28	34	25	3	0,6	on request
23761-02503020	25	30	35	20	2,5	0,8	on request
23761-02503025	25	30	35	25	2,5	0,8	on request
23761-02503220	25	32	39	20	3,5	0,8	on request
23761-02503225	25	32	39	25	3,5	0,8	on request
23761-02803322	28	33	38	22	2,5	0,8	on request
23761-02803336	28	33	38	36	2,5	0,8	on request
23761-02803622	28	36	44	22	4	0,8	on request
23761-02803636	28	36	44	36	4	0,8	on request
23761-03003820	30	38	46	20	4	0,8	on request
23761-03003825	30	38	46	25	4	0,8	on request
23761-03003830	30	38	46	30	4	0,8	on request
23761-03204020	32	40	48	20	4	0,8	on request
23761-03204025	32	40	48	25	4	0,8	on request
23761-03204030	32	40	48	30	4	0,8	on request
23761-03604528	36	45	54	28	4,5	0,8	on request
23761-03604536	36	45	54	36	4,5	0,8	on request
23761-04005025	40	50	60	25	5	0,8	on request
23761-04005040	40	50	60	40	5	0,8	on request
23761-05006032	50	60	70	32	5	1	on request
23761-05006050	50	60	70	50	5	1	on request
