        Hinges weldable

Item description/product images

DescriptionMaterial:Hinge steel.
Spacer washer brass.
Hinge pin steel or brass.Version:Grease nipple DIN 71412-D, electro zinc-plated steel.
Steel parts, bright.Note:The hinges are made of weldable profile steel.
The pin is fixed into the lower part of the hinge.
The differing steel qualities of the weld and the beam onto which the hinge is welded must be at least equal to or better than:
S235 JR+AR acc. to EN 10025-2:2004-10
DIN 8563 part 3 or Fe E 235 acc. to SIA 161

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27885 Hingesweldable

219 kB

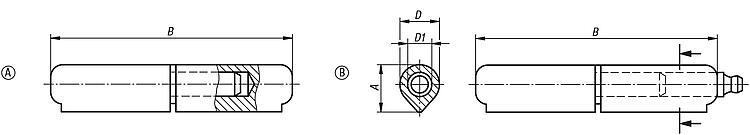

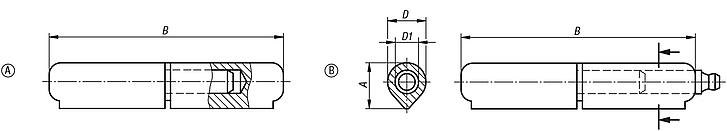

Drawings (total overview)

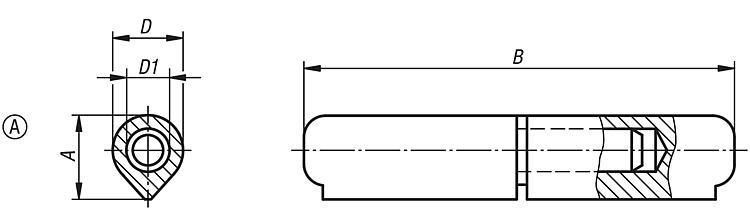

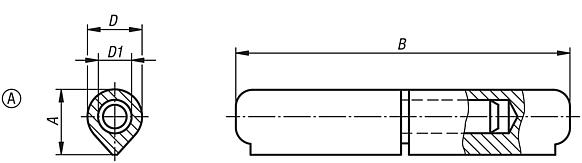

Weldable hinges, Form A

More information

Drawings

Item selection/filter

	A	steel brass	9,7 12,7 12 15,5 20 22 25 28,5	40 50 60 70 80 100 120 135 150 180 200	8 10 13 16 18 20 23	5 6 8 10 11 12 13 14 16				Reset
Order No.	Form	Component material	A	B	D	D1	CAD	Acc.	Price	Order
27885-008040012	A	steel	9,7	40	8	5			on request
27885-008050012	A	steel	9,7	50	8	5			on request
27885-010060012	A	steel	12,7	60	10	6			on request
27885-010070012	A	steel	12	70	10	6			on request
27885-013080012	A	steel	15,5	80	13	8			on request
27885-016100012	A	steel	20	100	16	10			on request
27885-016120012	A	steel	20	120	16	11			on request
27885-018135012	A	steel	22	135	18	12			on request
27885-020150012	A	steel	25	150	20	13			on request
27885-020180012	A	steel	25	180	20	14			on request
27885-023200012	A	steel	28,5	200	23	16			on request
27885-008040022	A	brass	9,7	40	8	5			on request
27885-008050022	A	brass	9,7	50	8	5			on request
27885-010060022	A	brass	12,7	60	10	6			on request
27885-010070022	A	brass	12	70	10	6			on request
27885-013080022	A	brass	15,5	80	13	8			on request
27885-016100022	A	brass	20	100	16	10			on request
27885-016120022	A	brass	20	120	16	11			on request
27885-018135022	A	brass	22	135	18	12			on request
27885-020150022	A	brass	25	150	20	13			on request
27885-020180022	A	brass	25	180	20	14			on request
27885-023200022	A	brass	28,5	200	23	16			on request

Weldable hinges, Form A

More information

Drawings

Item selection/filter

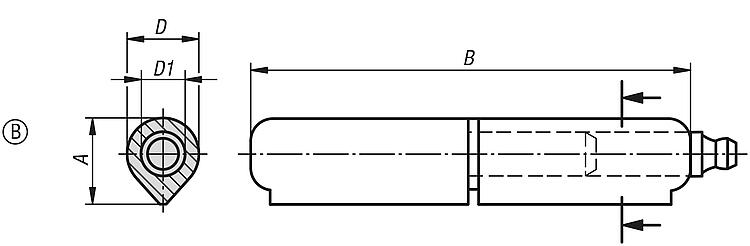

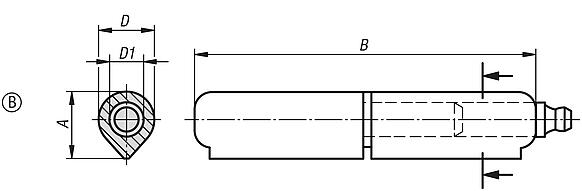

	B	steel	16 20 22,5 25,5 25 29	80 100 120 135 150 180 200	13 16 18 20 23	8 10 12 13 14 16				Reset
Order No.	Form	Component material	A	B	D	D1	CAD	Acc.	Price	Order
27885-113080012	B	steel	16	80	13	8			on request
27885-116100012	B	steel	20	100	16	10			on request
27885-116120012	B	steel	20	120	16	10			on request
27885-118135012	B	steel	22,5	135	18	12			on request
27885-120150012	B	steel	25,5	150	20	13			on request
27885-120180012	B	steel	25	180	20	14			on request
27885-123200012	B	steel	29	200	23	16			on request
