        Block hinges with fastening nuts

Item description/product images

DescriptionMaterial:

Steel.
Stainless steel 1.4305.
Stainless steel A4 1.4401.

Version:Steel electro zinc-plated.
Stainless steel bright.Note:Block hinges with fastening nuts for overlapping or inset doors.
Mounted with nuts (M6 or M8) from inside. The 3-part versions are not detachable.
The hinge can be used left or right. The opening angle is 180°. Supplied unassembled.
Fastening nuts and washers are supplied.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27890 Block hingeswith fastening nuts

238 kB

Drawings (total overview)

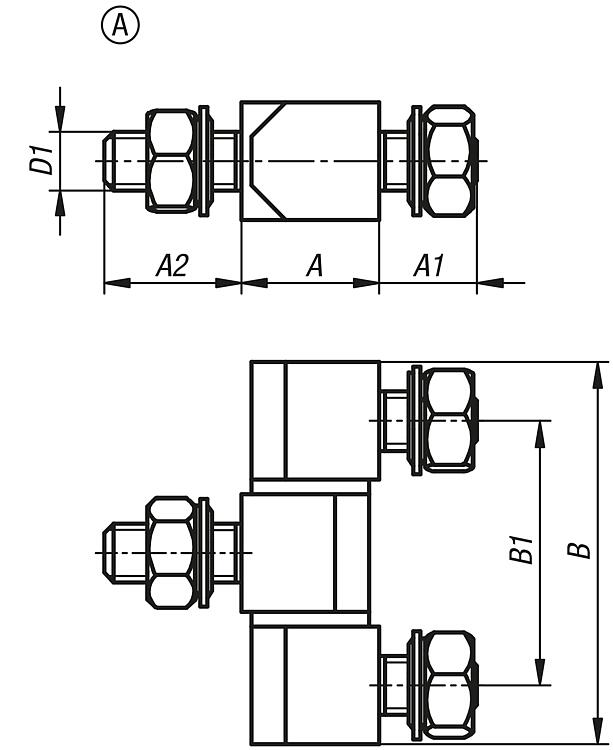

Block hinges with fastening nuts, Form A

More information

Drawings

Block hinges with fastening nuts, Form A

Item selection/filter

Order No.	Form	Main material	Steel code	A	A1	A2	B	B1	D1	Price
27890-0614027	A	steel	-	13	10	14	39	27	M6	on request
27890-0820033	A	steel	-	18	14	22	49	33	M8	on request
27890-10614027	A	stainless steel	1.4305	13	10	14	39	27	M6	on request
27890-10820033	A	stainless steel	1.4305	18	14	22	49	33	M8	on request
27890-20614027	A	stainless steel	1.4401	13	10	14	39	27	M6	on request
27890-20820033	A	stainless steel	1.4401	18	14	22	49	33	M8	on request

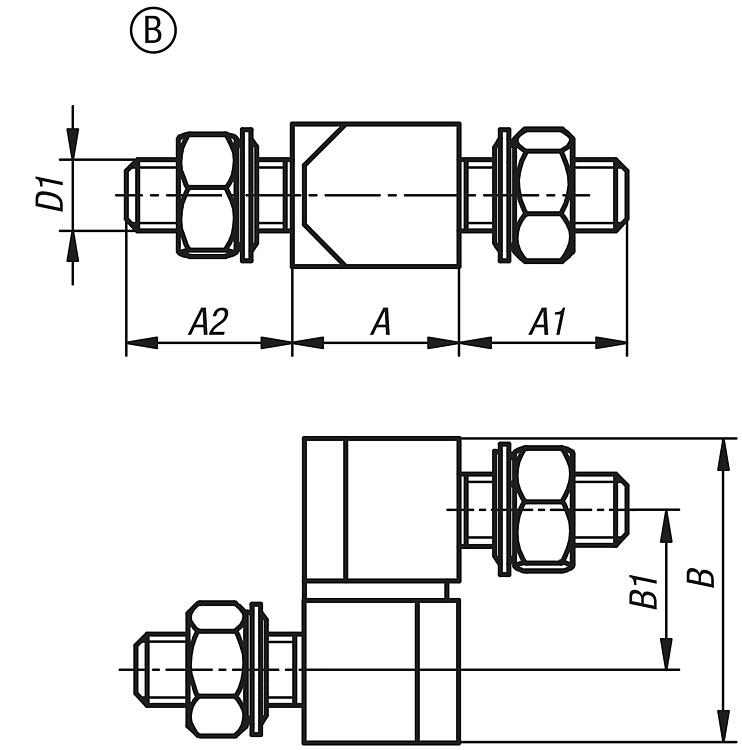

Block hinges with fastening nuts, Form B

More information

Drawings

Block hinges with fastening nuts, Form B

Item selection/filter

Order No.	Form	Main material	Steel code	A	A1	A2	B	B1	D1	Price
27890-10610135	B	steel	-	13	10	10	25,3	13,5	M6	on request
27890-10814165	B	steel	-	18	14	14	32,4	16,5	M8	on request
27890-110610135	B	stainless steel	1.4305	13	10	10	25,3	13,5	M6	on request
27890-110814165	B	stainless steel	1.4305	18	14	14	32,4	16,5	M8	on request
