27902Spring hinges steel, stainless steel or aluminium, 120 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel, 1.4301 stainless steel or 5754 aluminium.
Tension spring steel or stainless steel. Version:Steel bright or electro zinc-plated
Stainless steel and aluminium, bright.
Tension spring Zn/Al alloy.Note:Barrel hinges.
Opening angle 270°.
Opening spring torque:
M(0°) : 0.85 Nm / M(90°) : 0.56 Nm / M(180°) : 0.28 Nm
Closing spring torque:
M(0°) : 0.28 Nm / M(90°) : 0.56 Nm / M(180°) : 0.85 Nm
By the aluminium hinges, the tension springs are steel alloyed with Zn/Al.
Form A: without holes
Form B: with holes
The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

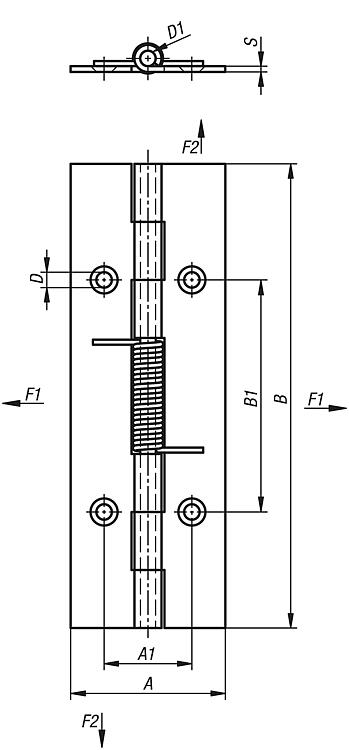

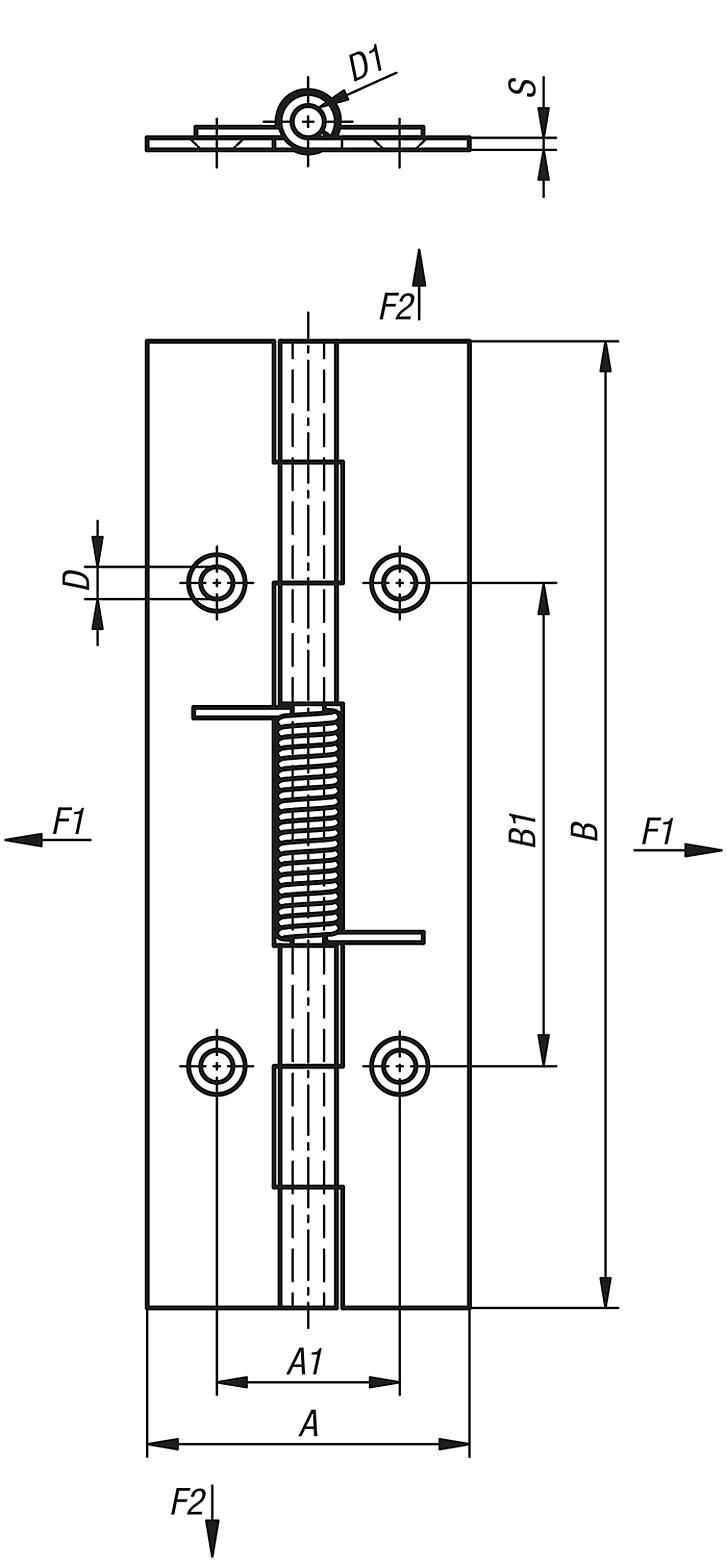

Drawings (total overview) |

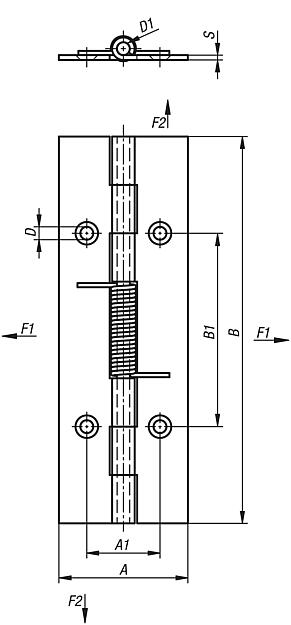

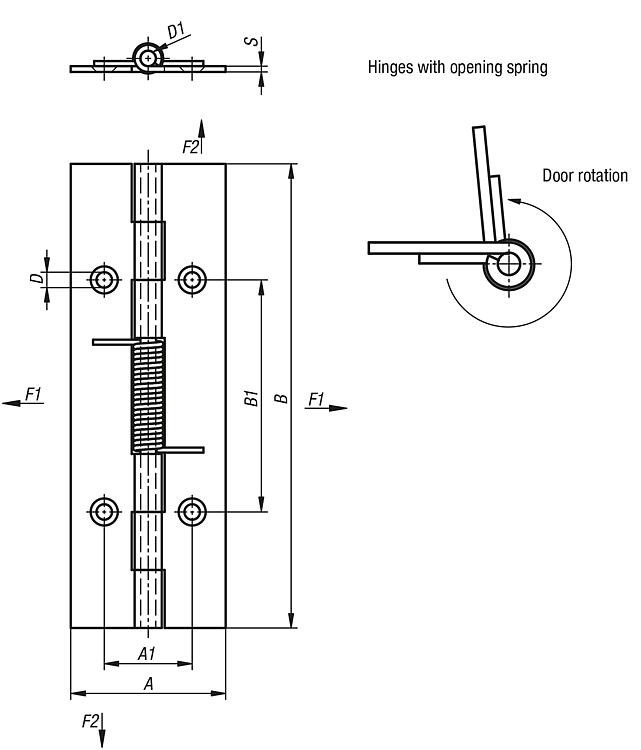

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring open |
More information |
| Order No. | Form | Version 1 | Main
material | A | A1 | B | B1 | D | D1 | S | CAD | Acc. | Price | Order |
|---|
| 27902-4012000 | A | spring open | steel | 40 | - | 120 | - | - | 4 | 1,5 |  | | on request | | | 27902-4012001 | B | spring open | steel | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | | | 27902-14012000 | A | spring open | stainless steel A2 | 40 | - | 120 | - | - | 4 | 1,5 | | | on request | | | 27902-14012001 | B | spring open | stainless steel A2 | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | | | 27902-24012000 | A | spring open | aluminium | 40 | - | 120 | - | - | 4 | 1,5 | | | on request | | | 27902-24012001 | B | spring open | aluminium | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | |
|

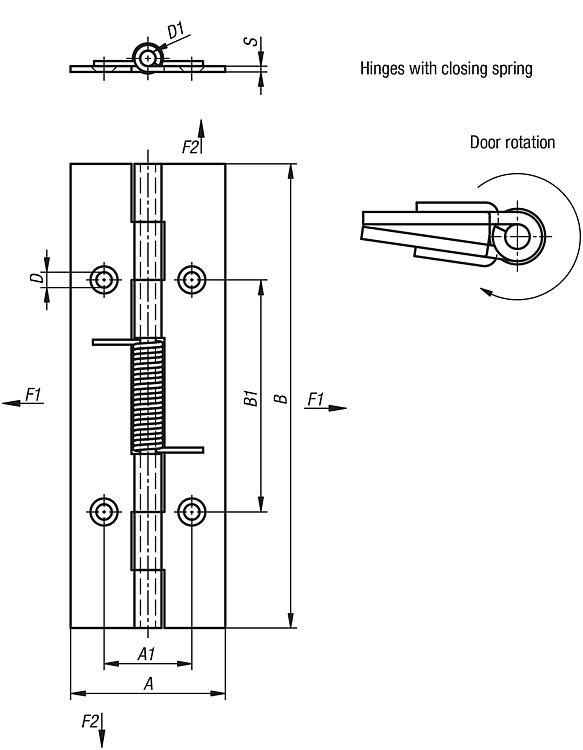

Spring hinges, steel, stainless steel or aluminium, 120 mm, spring closed |
More information |
| Order No. | Form | Version 1 | Main
material | A | A1 | B | B1 | D
| D1 | S | CAD | Acc. | Price | Order |
|---|
| 27902-4012010 | A | spring closed | steel | 40 | - | 120 | - | - | 4 | 1,5 | | | on request | | | 27902-4012011 | B | spring closed | steel | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | | | 27902-14012010 | A | spring closed | stainless steel A2 | 40 | - | 120 | - | - | 4 | 1,5 | | | on request | | | 27902-14012011 | B | spring closed | stainless steel A2 | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | | | 27902-24012010 | A | spring closed | aluminium | 40 | - | 120 | - | - | 4 | 1,5 | | | on request | | | 27902-24012011 | B | spring closed | aluminium | 40 | 22,7 | 120 | 60 | 4 | 4 | 1,5 | | | on request | |
|
