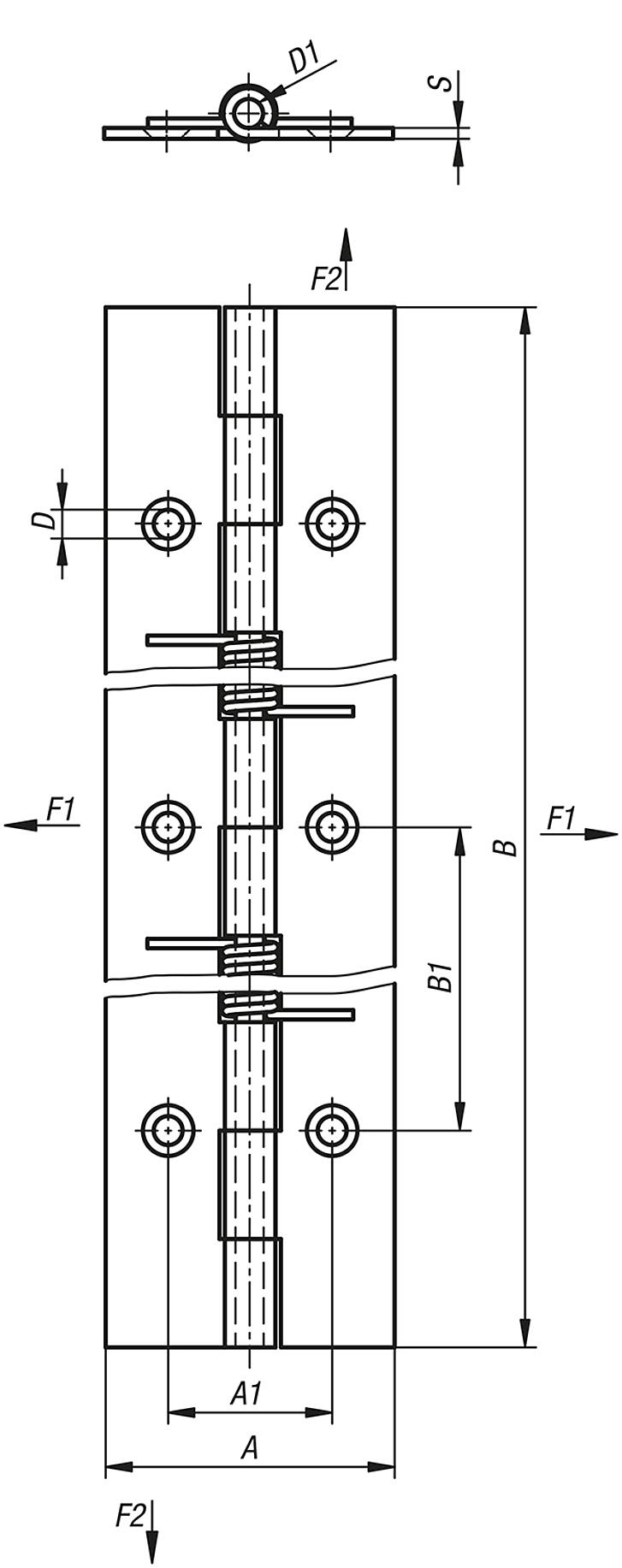

27903Spring hinges steel or stainless steel, 180 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or 1.4301 stainless steel.
Tension spring stainless steel. Version:Steel bright or electro zinc-plated.
Stainless steel bright.Note:Barrel hinges.
Opening angle 270°.

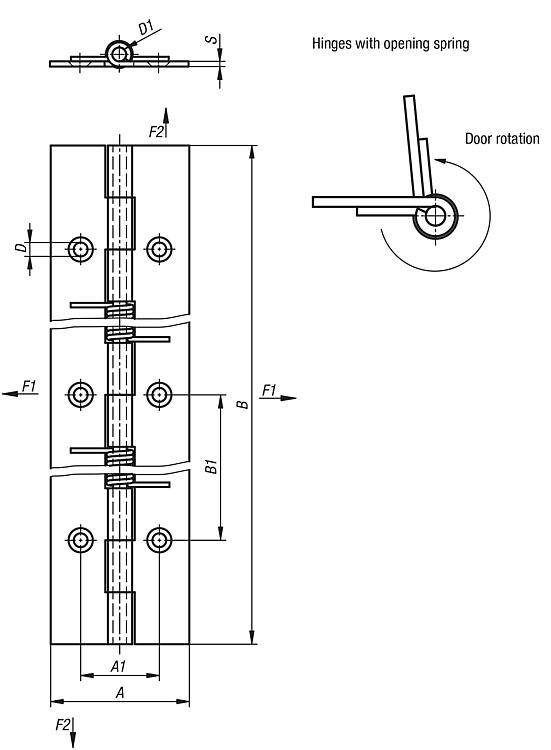

Opening spring torque:
M(0°) : 1.7 Nm / M(90°) : 1.1 Nm / M(180°) : 0.56 Nm

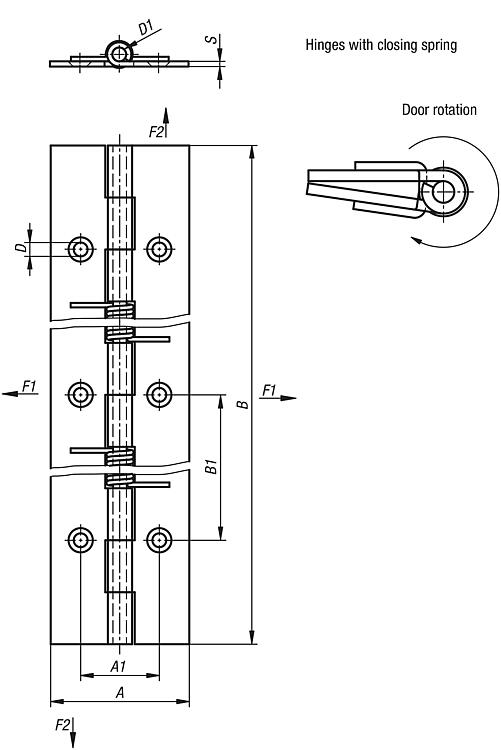

Closing spring torque:
M(0°) : 0.56 Nm / M(90°) : 1.1 Nm / M(180°) : 1.7 Nm
Form A: without holes
Form B: with holes
The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

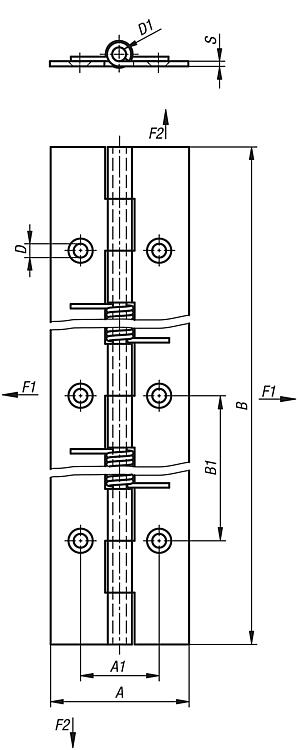

Drawings (total overview) |
