27875-04Hinges stainless steel, separable, dismountable |
go back |
|
|
DescriptionProduct description:Hinges for panel elements and aluminium profiles.
The hinge pins can be removed and refitted without tools enabling the hinge halves to be quickly separated and rejoined.
These hinges find use on hatches, covers and frames
Can be used indoors or outdoors.Material:Stainless steel 1.4401.
Hinge pin and accessories stainless steel 1.4305. Version:Hinges polished.
Hinge pin bright.
Accessories bright.Note:The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials attached to the hinge and the type of attachment used, meteorological conditions and wear can effect the calculated values.Advantages:Tool-free mounting and removalOn request:Unequal leaf length combinations.Accessory:03400 Locking pins with folding latch.
07336 Cotter pin DIN EN ISO 1234.
03199 Key ring.Supplied withTwo hinge halves.
Selected hinge pin and/or accessories.Drawing reference:Form A: with locking pin
Form B: with pin/head and key ring
Form C: with pin/head and cotter pin
2) Hinge pin
3) Cotter pin
4) Key ring DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

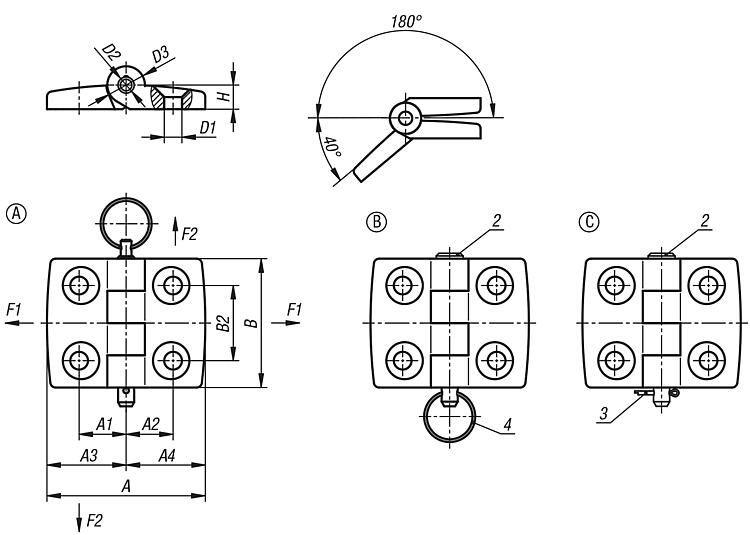

Drawings (total overview) |

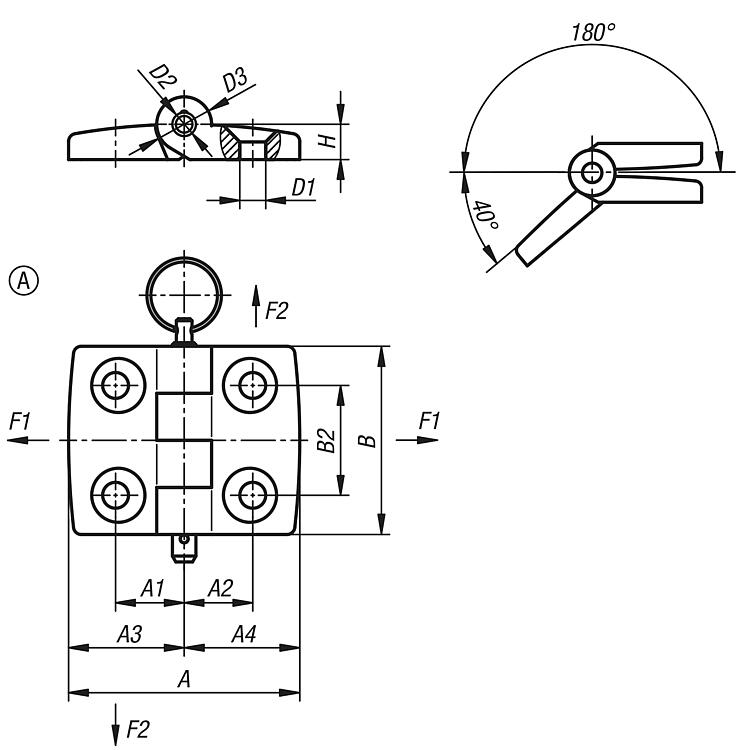

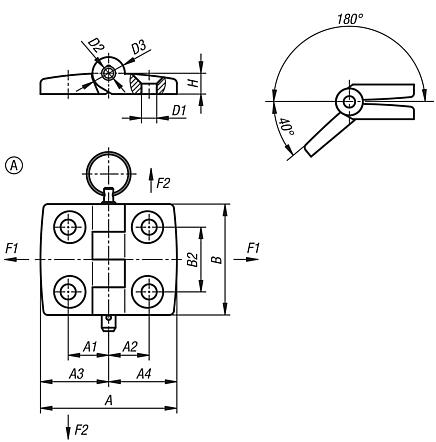

Hinges stainless steel, separable, dismountable, Form A, with locking pin |
More information |
| Order No. | Form | Form definition | A
| A1 | A2 | A3 | A4 | B | B2 | D1 | D2 | D3 | H | F1
N | F2
N
| CAD | Acc. | Price | Order |
|---|
| 27875-04-26151501 | A | - | 52 | 15 | 15 | 26 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 700 | 560 |  | | on request | | | 27875-04-30181801 | A | - | 59 | 17,5 | 17,5 | 29,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 800 | 575 | | | on request | | | 27875-04-40232301 | A | - | 77 | 22,5 | 22,5 | 38,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-45252501 | A | - | 85 | 25 | 25 | 42,5 | 42,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-60333301 | A | - | 113 | 32,5 | 32,5 | 56,5 | 56,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 260 | | | on request | |
|

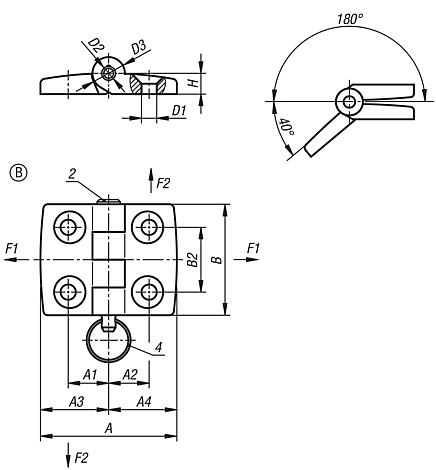

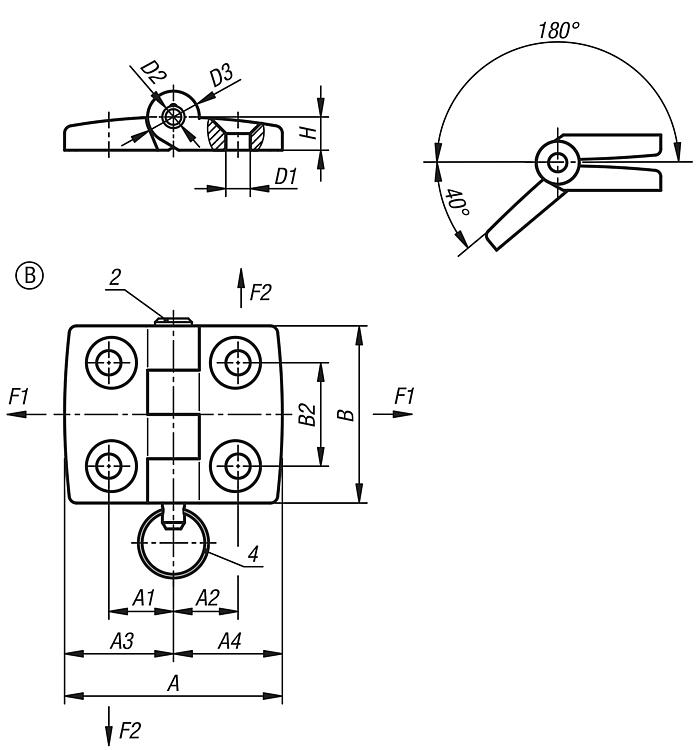

Hinges stainless steel, separable, dismountable, Form B, with bolt/head and key ring |
More information |
| Order No. | Form | Form definition | A
| A1 | A2 | A3 | A4 | B | B2 | D1 | D2 | D3 | H | F1
N | F2
N
| CAD | Acc. | Price | Order |
|---|
| 27875-04-26151502 | B | - | 52 | 15 | 15 | 26 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 700 | 560 | | | on request | | | 27875-04-30181802 | B | - | 59 | 17,5 | 17,5 | 29,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 800 | 575 | | | on request | | | 27875-04-40232302 | B | - | 77 | 22,5 | 22,5 | 38,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-45252502 | B | - | 85 | 25 | 25 | 42,5 | 42,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-60333302 | B | - | 113 | 32,5 | 32,5 | 56,5 | 56,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 260 | | | on request | |
|

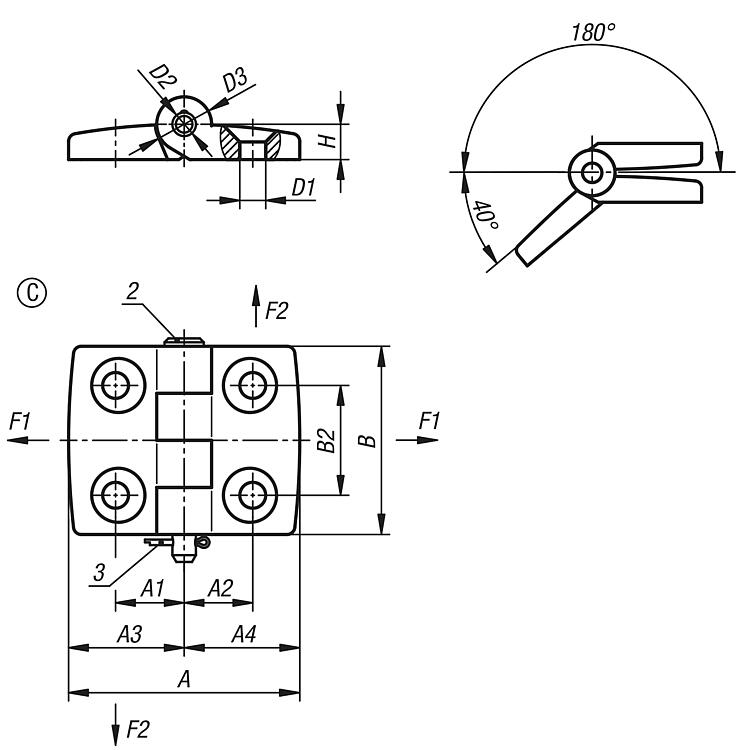

Hinges stainless steel, separable, dismountable, Form C, with bolt/head and cotter pin |
More information |
| Order No. | Form | Form definition | A
| A1 | A2 | A3 | A4 | B | B2 | D1 | D2 | D3 | H | F1
N | F2
N
| CAD | Acc. | Price | Order |
|---|
| 27875-04-26151503 | C | - | 52 | 15 | 15 | 26 | 26 | 48 | 28 | 6,6 | 6 | 14 | 9 | 700 | 560 | | | on request | | | 27875-04-30181803 | C | - | 59 | 17,5 | 17,5 | 29,5 | 29,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 800 | 575 | | | on request | | | 27875-04-40232303 | C | - | 77 | 22,5 | 22,5 | 38,5 | 38,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-45252503 | C | - | 85 | 25 | 25 | 42,5 | 42,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 675 | | | on request | | | 27875-04-60333303 | C | - | 113 | 32,5 | 32,5 | 56,5 | 56,5 | 48 | 28 | 6,6 | 6 | 14 | 9 | 900 | 260 | | | on request | |
|
