Hinges, steel, in-frame opening angle 110°
 27879-10

Hinges, steel, in-frame opening angle 110°

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:The hinges are suitable exclusively for horizontal applications.
The version with spring achieves a torque of 1.0 Nm when opening and a torque of 3.0 Nm when closing.
Opening angle 110°.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 27879-10 Hinges, steel, in-frame opening angle 110° 373 kB

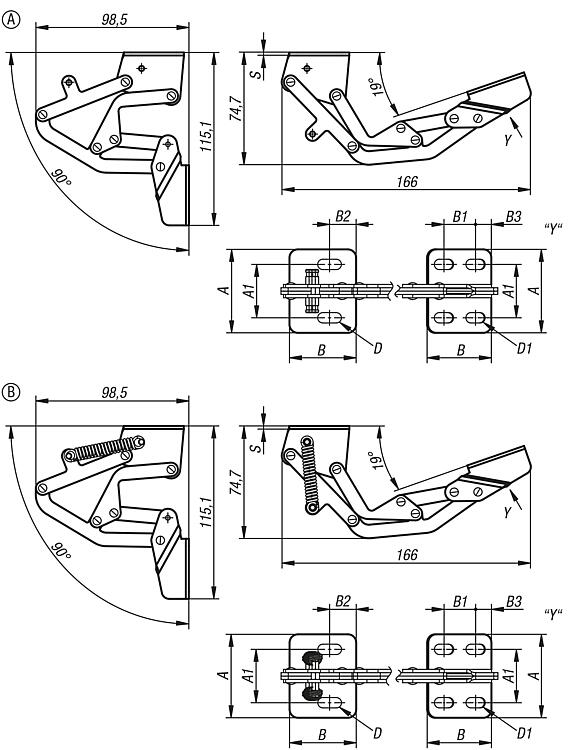

Drawings

Hinges, steel, in-frame opening angle 110°

Item selection/filter
Order No.FormProduct typeAA1BB1B2B3D

D1SCADAcc.PriceOrder
27879-10-50400Ain-frame hinge5032402016106,2x14,26,2x12,22 on request
27879-10-50401Bhinges, in-frame with spring5032402016106,2x14,26,2x12,22 on request
