        Swivel feet plates extended die-cast zinc

Item description/product images

Show/filter all items

DescriptionMaterial:Plate die-cast zinc.
Anti-slip plate thermoplastic elastomer.Version:Plate black powder-coated.Note:

Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see 27810.
For matching ball joints see 27811.

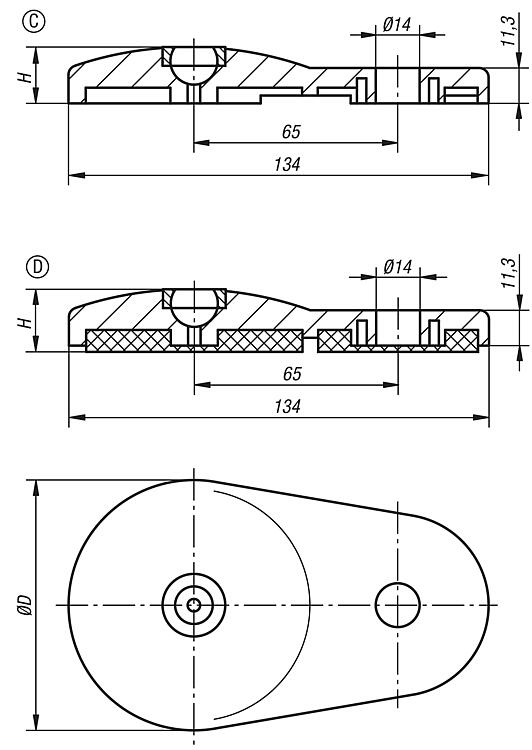

Drawing reference:

Form C with screw-on hole, without anti-slip plate

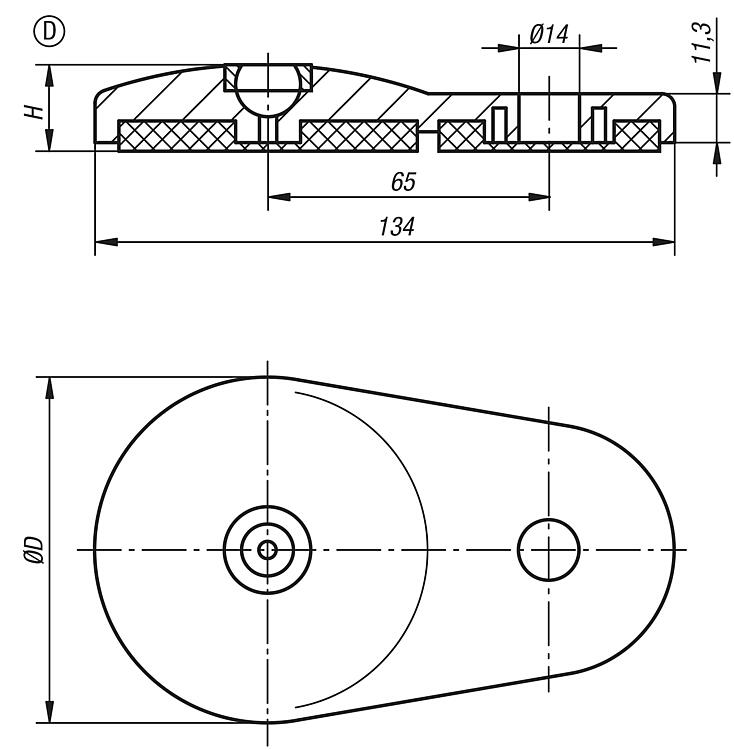

Form D with screw-on hole, with anti-slip plate

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27802 Swivel feet plates extended die-cast zinc

Drawings (total overview)

Swivel feet plates extended die-cast zinc

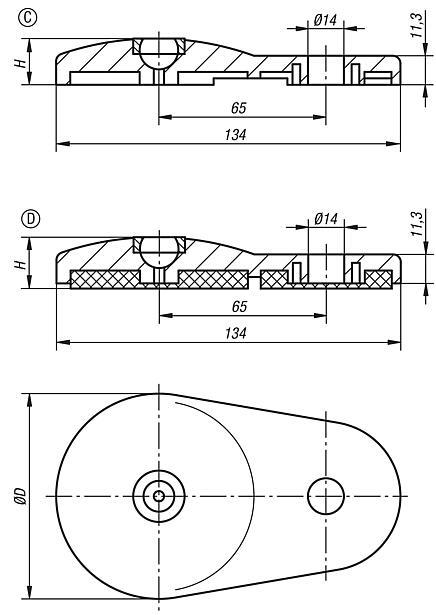

Swivel feet plates extended, die-cast zinc, Form C

More information

Drawings

Swivel feet plates extended, die-cast zinc, Form C

Item selection/filter

Order No.	Form	D	H	Load rating max. kN	CAD	Acc.	Price	Order
27802-30801	C	80	18	30			on request

Swivel feet plates extended, die-cast zinc, Form D

More information

Drawings

Swivel feet plates extended, die-cast zinc, Form D

Item selection/filter

Order No.	Form	D	H	Load rating max. kN	CAD	Acc.	Price	Order
27802-40801	D	80	20	30			on request
