29006Tube clamps T-angle, stainless steel |
go back |
|
Item description/product images |
|
|

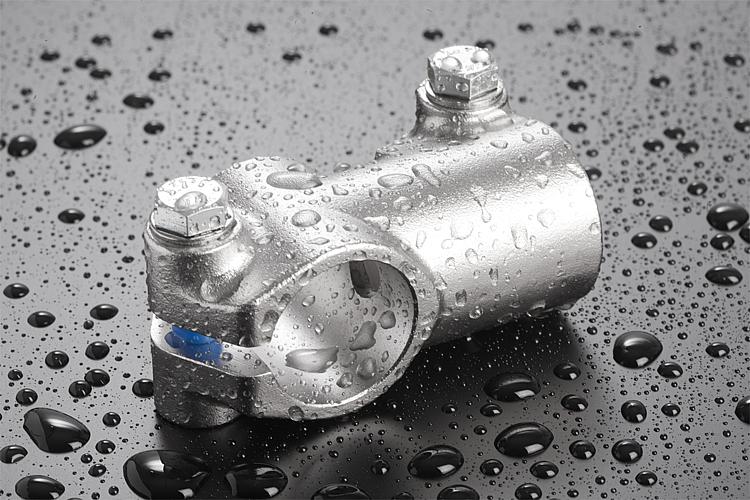

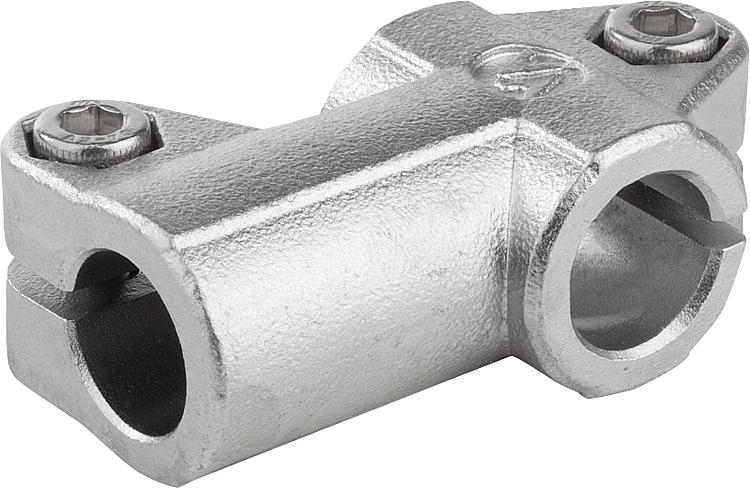

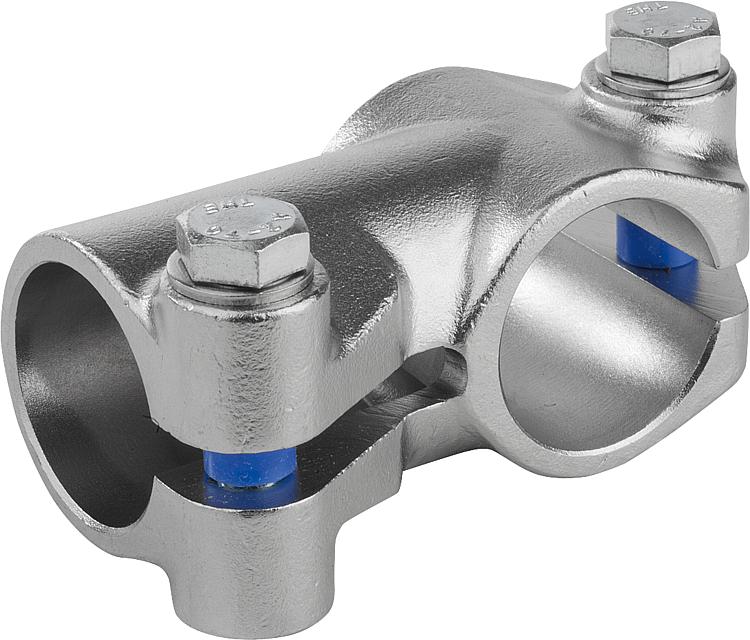

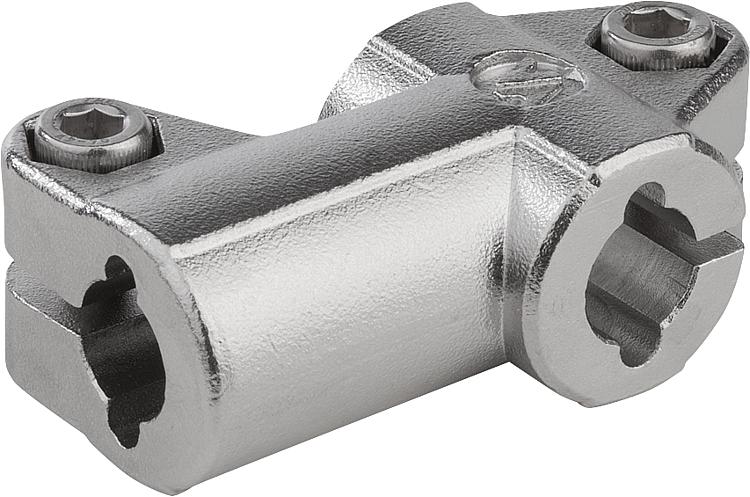

DescriptionMaterial:Investment cast 1.4308 stainless steel.
ISO 4762 cap screw and ISO 4032 hex nut, stainless steel.
From ø30 mm ISO 4017 hex head bolt, stainless steel. Version:Electropolished.Note:The tube clamps with diameters 30 and 40 mm have a silicone sleeve that protects the thread of the hex head screw from contamination and damage.On request:Clamping levers for tightening.Accessory:- Round and square tubes 29050Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

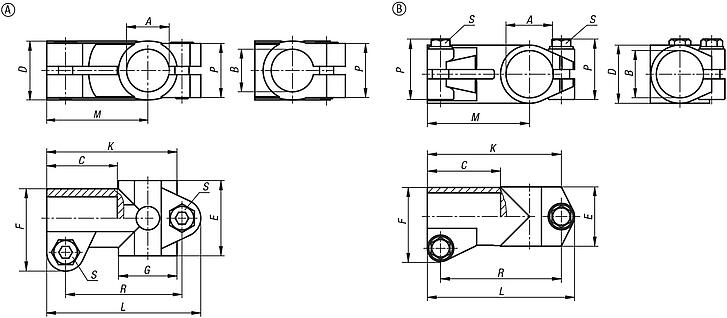

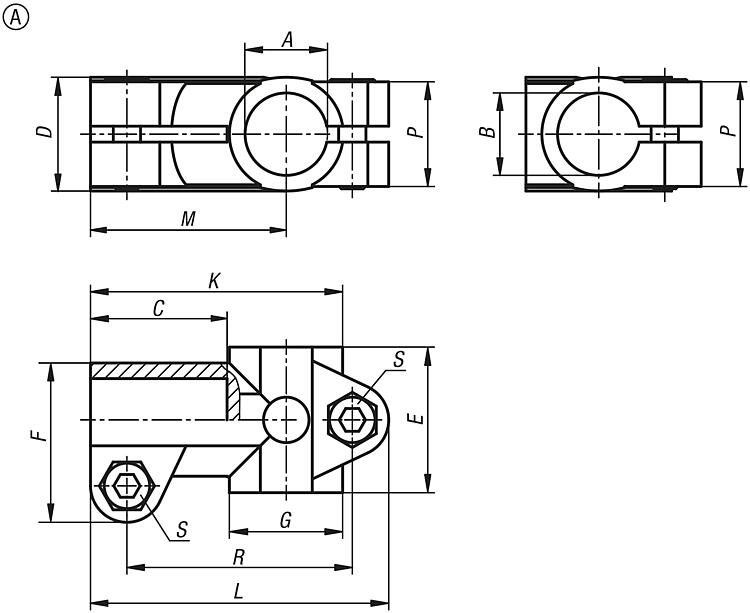

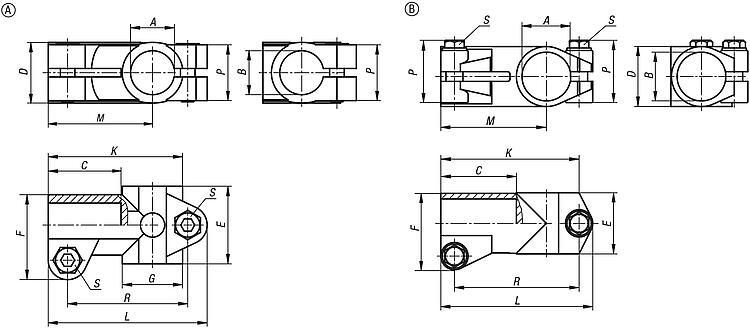

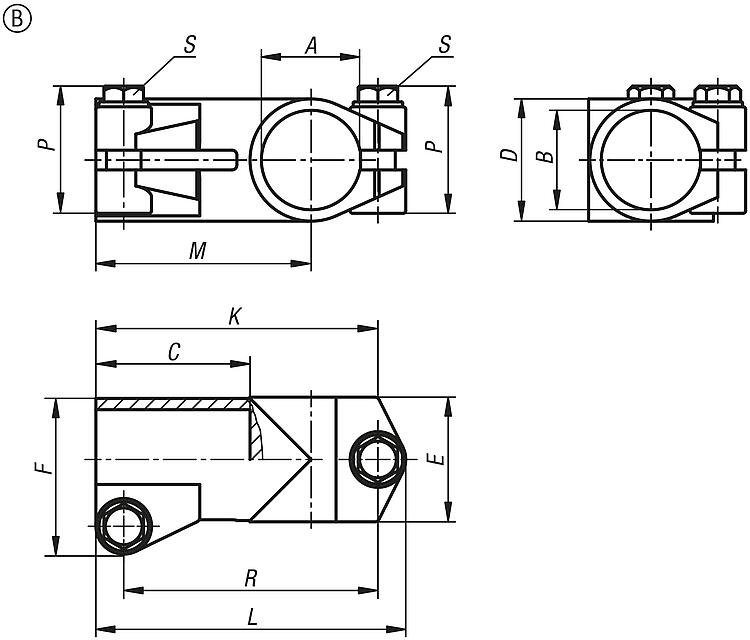

Drawings (total overview) |
| Order No. | Form | A | B | C | D
| E | F | K | L | M | P | R | S | CAD | Acc. | Price | Order |
|---|
| 29006-11212 | A | 12,1 | 12,1 | 30,5 | 25 | 32 | 35 | 55,5 | 65,5 | 43 | 23 | 49,5 | M6x18 |  | | on request | | | 29006-11414 | A | 14,1 | 14,1 | 30,5 | 25 | 32 | 35 | 55,5 | 65,5 | 43 | 23 | 49,5 | M6x18 | | | on request | | | 29006-11616 | A | 16,1 | 16,1 | 30,5 | 25 | 32 | 35 | 55,5 | 65,5 | 43 | 23 | 49,5 | M6x18 | | | on request | | | 29006-11818 | A | 18,1 | 18,1 | 30,5 | 25 | 32 | 35 | 55,5 | 65,5 | 43 | 23 | 49,5 | M6x18 | | | on request | | | 29006-12020 | A | 20,1 | 20,1 | 30,5 | 25 | 32 | 35 | 55,5 | 65,5 | 43 | 23 | 49,5 | M6x18 | | | on request | |
|
| Order No. | Form | A | B | C | D
| E | F | K | L | M | P | R | S | CAD | Acc. | Price | Order |
|---|
| 29006-13030 | B | 30,1 | 30,1 | 40 | 38,4 | 38 | 48 | 78 | 87 | 58 | 45.5 | 69 | M8x30 | | | on request | | | 29006-14040 | B | 40,17 | 40,17 | 60 | 50,4 | 50 | 63 | 112 | 124,9 | 87 | 52 | 102,5 | M10x35 | | | on request | |
|
