        Tube clamps base, stainless steel

Item description/product images

DescriptionMaterial:

Investment cast 1.4308 stainless steel.
ISO 4762 cap screw and ISO 4032 hex nut, stainless steel.
From ø30 mm ISO 4017 hex head bolt, stainless steel.

Version:Electropolished.Note:The tube clamps with diameters 30 and 40 mm have a silicone sleeve that protects the thread of the hex head screw from contamination and damage.On request:Clamping levers for tightening.Accessory:- Round and square tubes 29050Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29010 Tube clamps base, stainless steel

547 kB

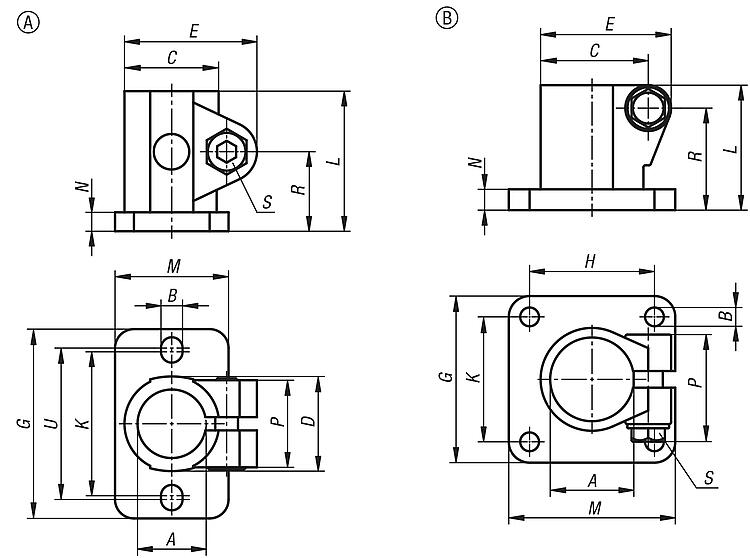

Drawings (total overview)

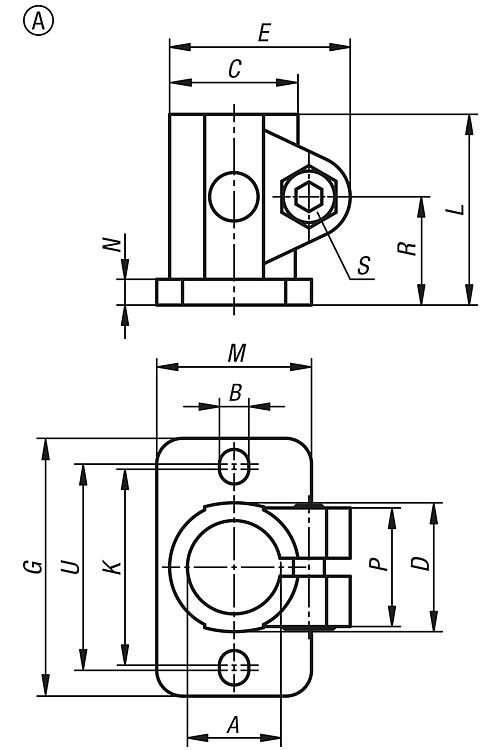

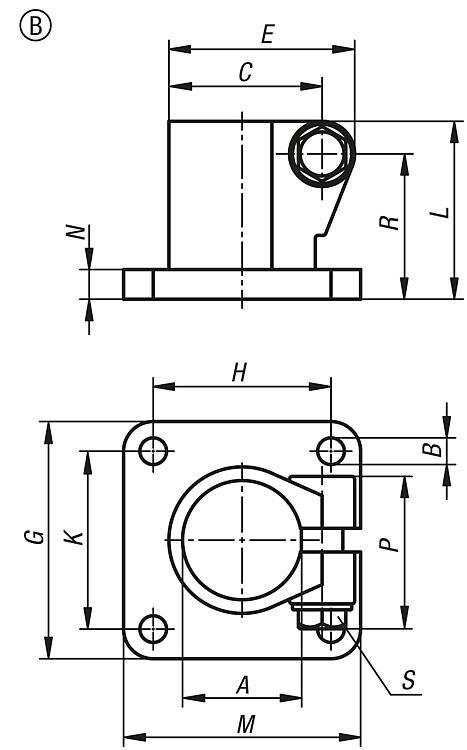

Tube clamps base, stainless steel, Form A

More information

Drawings

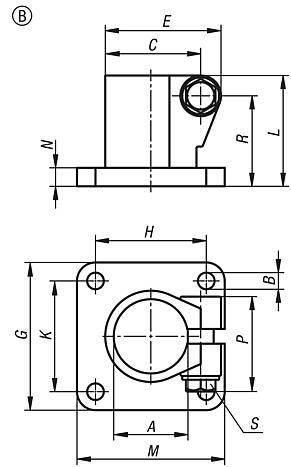

Tube clamps base, stainless steel, Form A

Item selection/filter

Order No.	Form	A	B	C	D	E	G	K	L	M	N	P	R	S	U	Price
29010-112	A	12,1	5,7	27	25	35	50	38	37	30	5	23	21	M6x18	40	on request
29010-114	A	14,1	5,7	27	25	35	50	38	37	30	5	23	21	M6x18	40	on request
29010-116	A	16,1	5,7	27	25	35	50	38	37	30	5	23	21	M6x18	40	on request
29010-118	A	18,1	5,7	27	25	35	50	38	37	30	5	23	21	M6x18	40	on request
29010-120	A	20,1	5,7	27	25	35	50	38	37	30	5	23	21	M6x18	40	on request
