        Tube clamps, swivel half aluminium, with sunken teeth

Item description/product images

DescriptionMaterial:Cast aluminium.
Screws and nuts steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:Swivel half clamps with sunken teeth can be combined with swivel half clamps with raised teeth (29026) to make a complete swivel clamp.

Max. torque when tightening the lockscrew:
M6: 10 Nm.
M8: 25 Nm.
M10: 50 Nm.On request:Clamping levers for tightening.Accessory:- Hex nut DIN 985
- Hex head bolt DIN 933
- Cap screw DIN 6912Drawing reference:

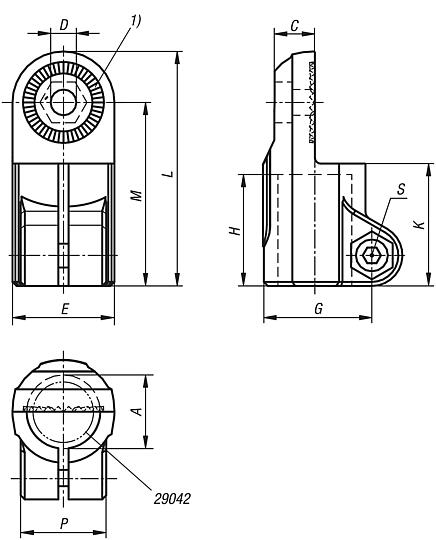

1) 15° toothing

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29024 Tube clamps, swivel half aluminium, with sunken teeth

319 kB

Drawings

Item selection/filter

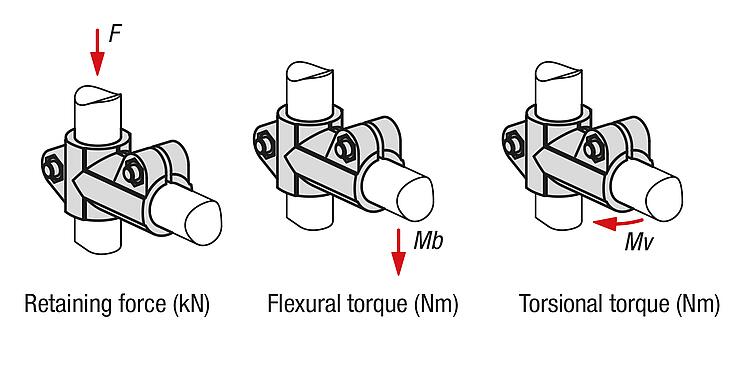

Order No.	A	C	D	E	G	H	K	L	M	P	S	F kN	Mb (Nm)	Mv (Nm)	Price
29024-512	12,1	10,5	7,5	26	29,4	25	30	57	44	21	M6	3,6	28	9	on request
29024-514	14,1	10,5	7,5	26	29,4	25	30	57	44	21	M6	3,6	28	9	on request
29024-516	16,1	10,5	7,5	26	29,4	25	30	57	44	21	M6	3,6	28	9	on request
29024-518	18,1	10,5	7,5	26	29,4	25	30	57	44	21	M6	3,6	28	9	on request
29024-520	20	16	9	40	40	45	50	93	73	33	M8	4,9	91	94	on request
29024-525	25,1	16	9	40	40	45	50	93	73	33	M8	4,9	91	94	on request
29024-530	30,1	16	9	40	40	45	50	93	73	33	M8	4,9	91	94	on request
29024-540	40,2	22	11	56	56	60	68	128	100	48	M10	6	267	181	on request
