29026Tube clamps swivel half, raised teeth, plastic |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.
DIN 7984 screws and DIN 985 nuts steel.Version:Black.
Screws and nuts electro zinc-plated.Note:Swivel half clamps with raised teeth can be combined with swivel half clamps with sunken teeth (29024, 29028 or 29030) to make a complete swivel clamp.
The standard size for round tubes is Ø18 mm or Ø30 mm. Use reducer sleeves 29042 if smaller tubes are to be clamped or a conversion from round to square tubes is required.On request:Plastic clamping levers for tightening.Accessory:- Reducer sleeves 29042
- Round and square tubes 29050Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

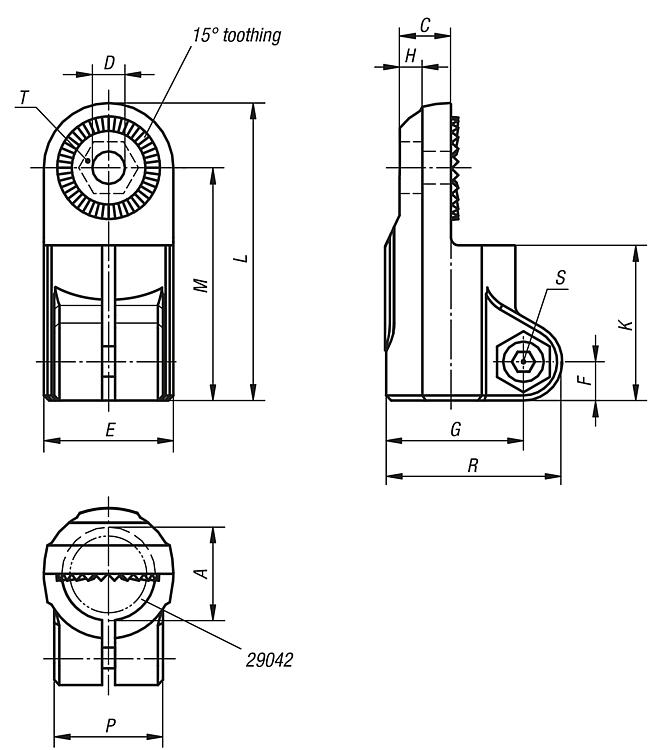

| Order No. | A
| C | D | E | F | G | H | K | L | M | P | R | S | T | CAD | Acc. | Price | Order |
|---|
| 29026-18 | 18 | 9,9 | 6,1 | 25 | 7,5 | 26,5 | 5,9 | 30 | 57,5 | 45 | 21 | 34 | M6x18 | M6-DIN 985 |  |  | on request | | | 29026-30 | 30 | 16,5 | 8,1 | 40 | 11 | 41,5 | 6,5 | 45 | 88 | 68 | 28,5 | 52,5 | M8x25 | M8-DIN 985 | | | on request | |
