29030Tube clamps swivel base aluminium, with sunken teeth |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Cast aluminium.
Nut, steel.Version:Vibratory ground.
Nut electro zinc-plated.Note:Swivel half clamps with sunken teeth can be combined with swivel half clamps with raised teeth (29026) to make a complete swivel clamp.
Max. torque when tightening the lockscrew:
M6: 10 Nm.
M8: 25 Nm.
M10: 50 Nm.On request:Clamping levers for tightening.Accessory:- Hex nut DIN 985
- Hex head bolt DIN 933

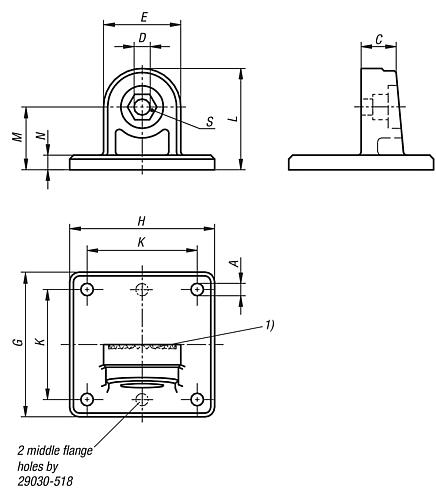

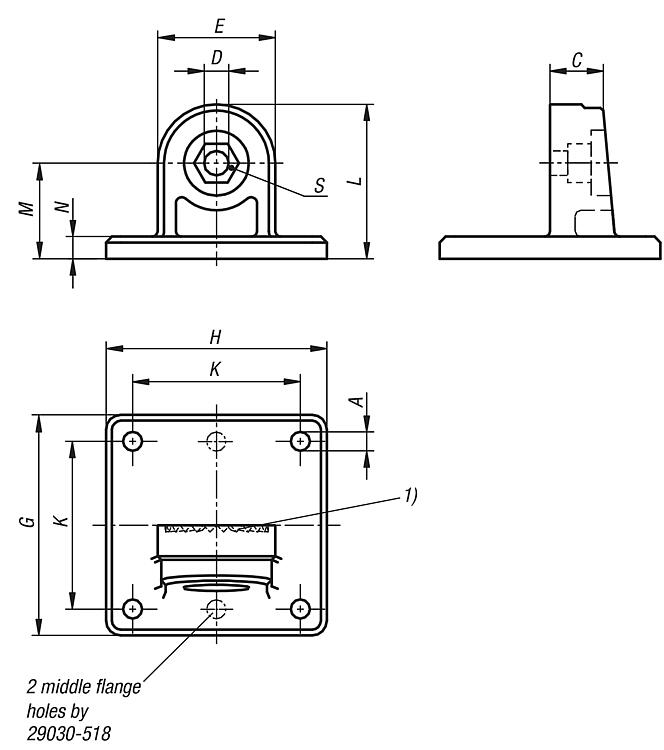

- Cap screw DIN 6912Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
