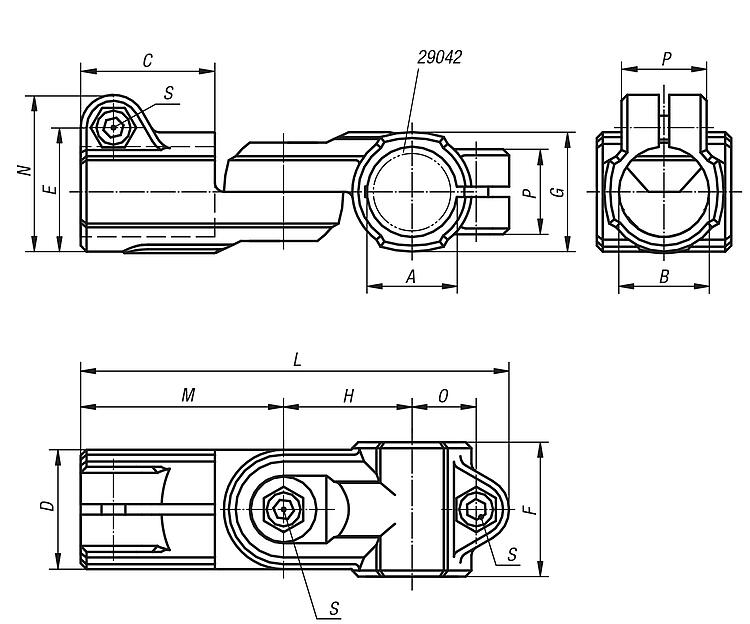

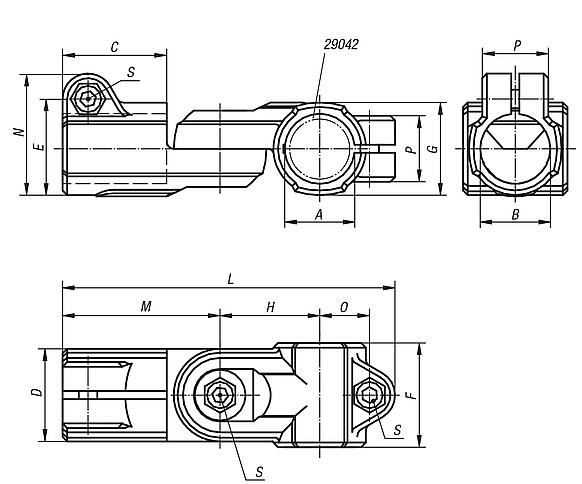

29032Tube clamps swivel, plastic |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.
DIN 7984 screws and DIN 985 nuts steel.Version:Black.
Screws and nuts electro zinc-plated.Note:Tube swivel clamps can be seamlessly rotated through 180°.
The standard size for round tubes is Ø18 mm or Ø30 mm. Use reducer sleeves 29042 if smaller tubes are to be clamped or a conversion from round to square tubes is required.On request:Plastic clamping levers for tightening.Accessory:- Reducer sleeves 29042
- Round and square tubes 29050Note:Tightening torque for clamping screws:
M6: 10 Nm
M8: 25 Nm
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
