29040Reducer sleeves square |
go back |
|
|
DescriptionMaterial:Thermoplastic.Version:Black.Note:Reducer sleeves are for clamping smaller tubes or where a conversion of square to round tubes is required.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

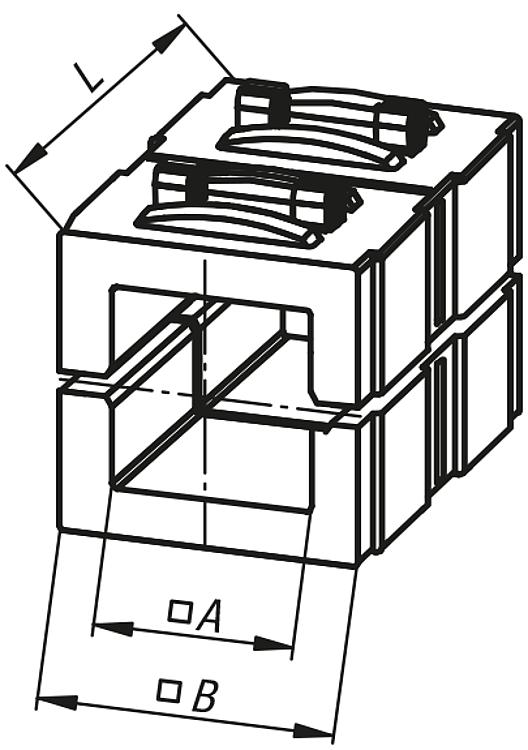

Drawings (total overview) |
|
| Order No. | Version 2 | A
| B | L | CAD | Acc. | Price | Order |
|---|
| 29040-13020 | for square tubes | 20,5 | 30,3 | 45 |  | | on request | | | 29040-13025 | for square tubes | 25,5 | 30,3 | 45 | | | on request | |
|
