        Reducer sleeves round

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoplastic.Version:black.Note:Reducer sleeves are for clamping smaller tubes or where a conversion of round to square tubes is required.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29042 Reducer sleeves round

203 kB

Drawings (total overview)

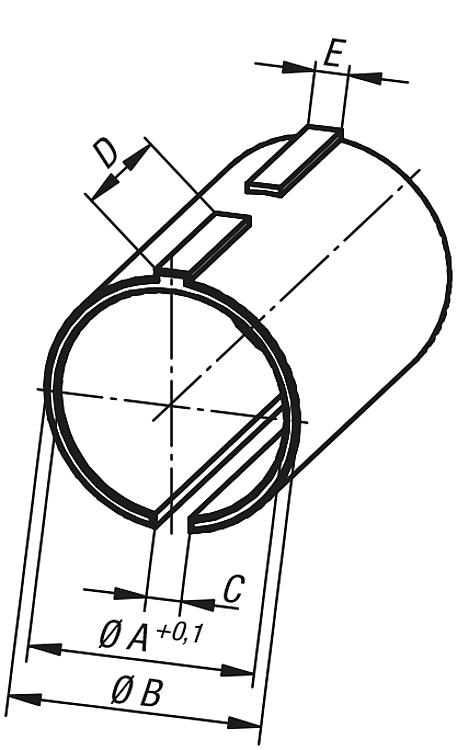

Reducer sleeves for round tubes

More information

Drawings

Item selection/filter

	for round tubes	12,25 14,25 15,25 16,25 20,25 25,25	18 30	2,5 3,5	11,9 18,9	2,4 3,4	30 45				Reset
Order No.	Version 2	A	B	C	D	E	L	CAD	Acc.	Price	Order
29042-01812	for round tubes	12,25	18	2,5	11,9	2,4	30			on request
29042-01814	for round tubes	14,25	18	2,5	11,9	2,4	30			on request
29042-01815	for round tubes	15,25	18	2,5	11,9	2,4	30			on request
29042-01816	for round tubes	16,25	18	2,5	11,9	2,4	30			on request
29042-03020	for round tubes	20,25	30	3,5	18,9	3,4	45			on request
29042-03025	for round tubes	25,25	30	3,5	18,9	3,4	45			on request

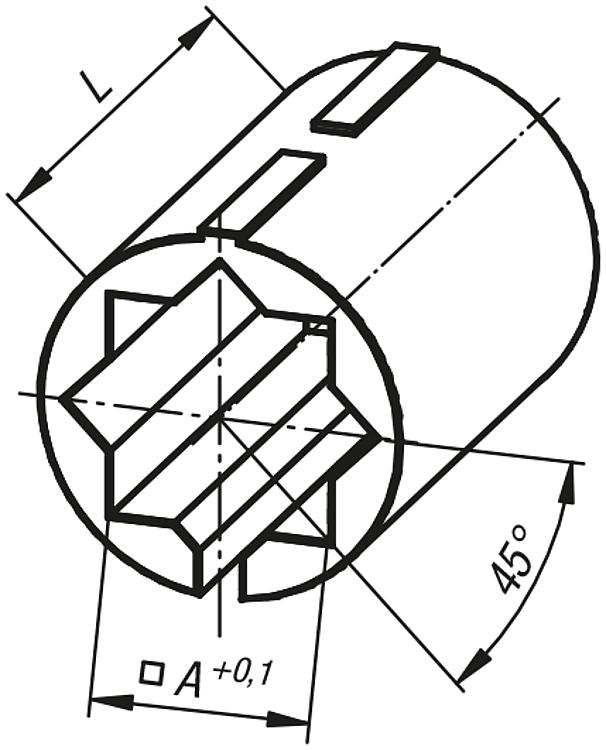

Reducer sleeves for square tubes

More information

Drawings

Item selection/filter

	for square tubes	20,25 10,25	30 18	3,5 2,5	18,9 11,9	3,4 2,4	45 30				Reset
Order No.	Version 2	A	B	C	D	E	L	CAD	Acc.	Price	Order
29042-13020	for square tubes	20,25	30	3,5	18,9	3,4	45			on request
29042-11810	for square tubes	10,25	18	2,5	11,9	2,4	30			on request
