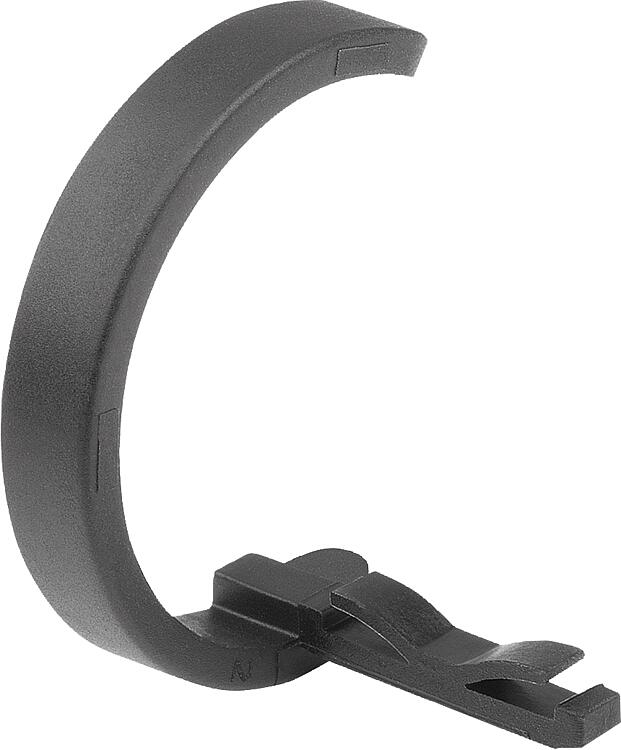

29050-06Rotation locks plastic for tube clamps |
go back |
|
Item description/product images |
|
|

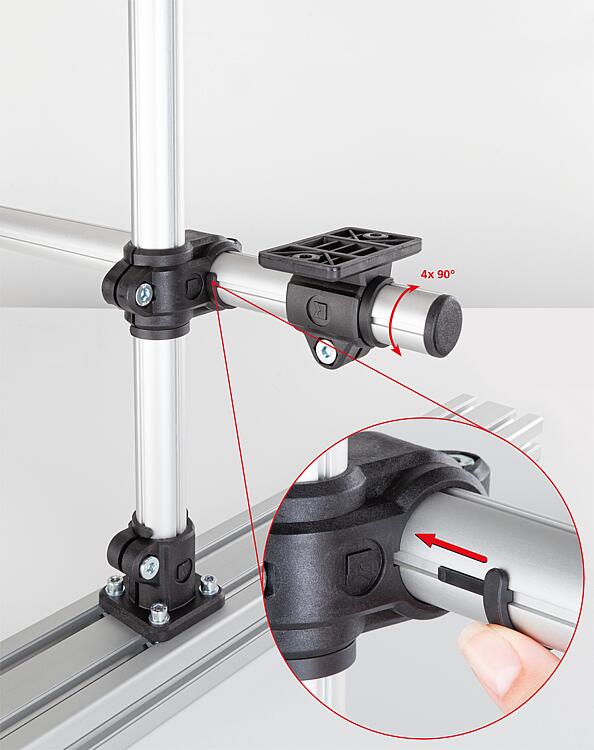

DescriptionProduct description:The rotation lock, when used in conjunction with plastic tube clamps and round tubes with slots, ensures a secure fastening.Material:PlasticVersion:Black.Accessory:29000-3030 / 29004-3030 / 29006-3030 / 29010-30 / 29014-30 / 29022-30 / 29024-30 / 29026-30 / 29028-30 / 29032-30 / 29034-30 / 29036-30 tube clamps, plastic.
29050-05 round tube with slot.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

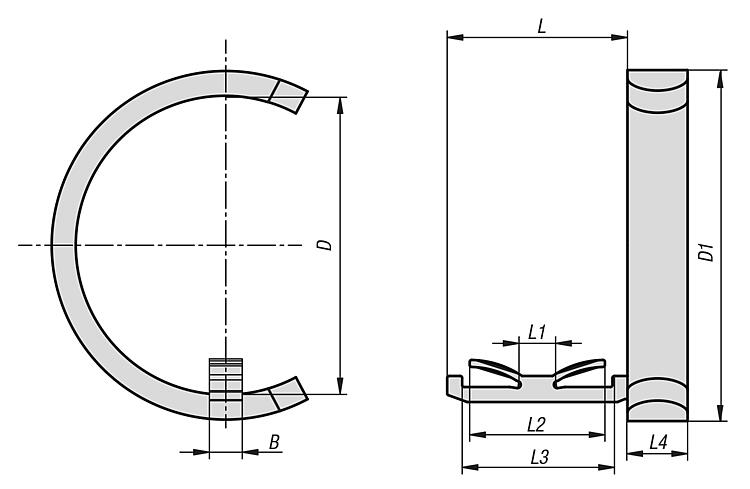

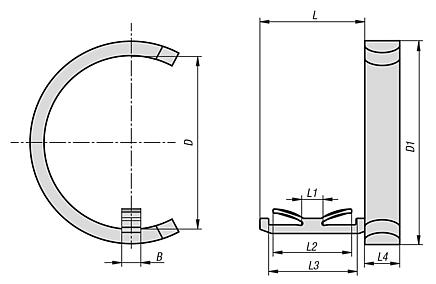

| B | D | D1 | L | L1 | L2 | L3 | L4 | CAD | Acc. | Price | Order |
|---|
| 29050-06-30 | 3,3 | 30 | 35 | 18 | 4 | 13,5 | 15 | 6 |  | | on request | |
