        Round and square tubes
        Square tubes

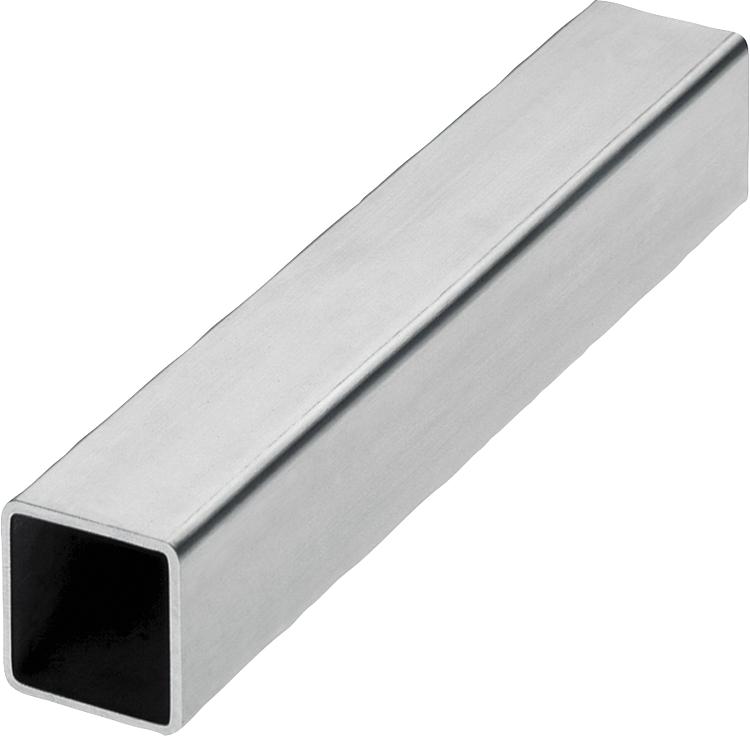

Item description/product images

DescriptionMaterial:Steel 1.0037.
Aluminium EN AW-6060.Version:Steel electro zinc-plated.
Aluminium clear anodised.Note:The production tolerances for square tubes are adapted to the tube clamping system.

* Solid materials.On request:- stainless steel tubes
- customer specific lengthsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29050_V Square tubes

126 kB

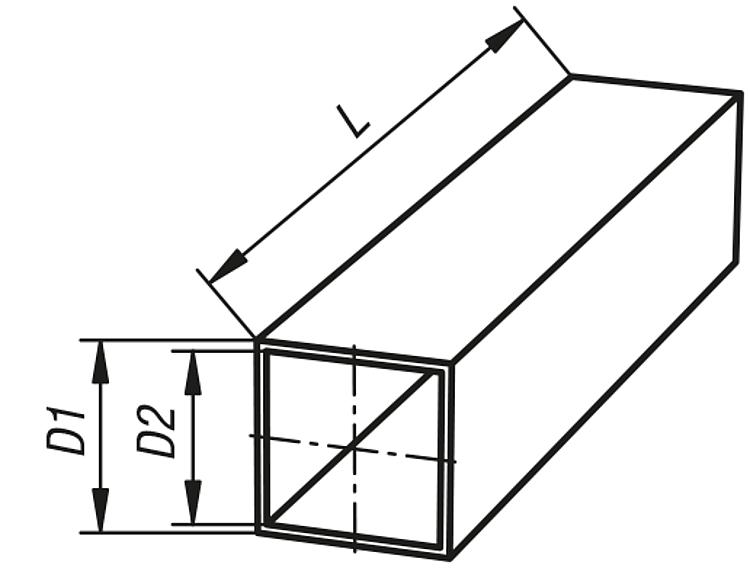

Drawings

Item selection/filter

Order No.	Main material	Description	D1	D2	L	Price
29050-4120X500	steel	20 x 20 x 1	20 ±0,3	18	500	on request
29050-4120X1000	steel	20 x 20 x 1	20 ±0,3	18	1000	on request
29050-4120X2000	steel	20 x 20 x 1	20 ±0,3	18	2000	on request
29050-4125X500	steel	25 x 25 x 1,5	25 ±0,3	22	500	on request
29050-4125X1000	steel	25 x 25 x 1,5	25 ±0,3	22	1000	on request
29050-4125X2000	steel	25 x 25 x 1,5	25 ±0,3	22	2000	on request
29050-4130X500	steel	30 x 30 x 2	30 ±0,3	26	500	on request
29050-4130X1000	steel	30 x 30 x 2	30 ±0,3	26	1000	on request
29050-4130X2000	steel	30 x 30 x 2	30 ±0,3	26	2000	on request
29050-4140X500	steel	40 x 40 x 3	40 ±0,4	34	500	on request
29050-4140X1000	steel	40 x 40 x 3	40 ±0,4	34	1000	on request
29050-4140X2000	steel	40 x 40 x 3	40 ±0,4	34	2000	on request
29050-4210X500	aluminium	10 x 10	10*	-	500	on request
29050-4210X1000	aluminium	10 x 10	10*	-	1000	on request
29050-4210X2000	aluminium	10 x 10	10*	-	2000	on request
29050-4220X500	aluminium	20 x 20 x 1,5	20 ±0,2	17	500	on request
29050-4220X1000	aluminium	20 x 20 x 1,5	20 ±0,2	17	1000	on request
29050-4220X2000	aluminium	20 x 20 x 1,5	20 ±0,2	17	2000	on request
29050-4230X500	aluminium	30 x 30 x 2	30 ±0,2	26	500	on request
29050-4230X1000	aluminium	30 x 30 x 2	30 ±0,2	26	1000	on request
29050-4230X2000	aluminium	30 x 30 x 2	30 ±0,2	26	2000	on request
29050-4240X500	aluminium	40 x 40 x 4	40 ±0,3	32	500	on request
29050-4240X1000	aluminium	40 x 40 x 4	40 ±0,3	32	1000	on request
29050-4240X2000	aluminium	40 x 40 x 4	40 ±0,3	32	2000	on request
