Round tubes

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Tube connectors Tube clamps Tube joints Tubes Columns
      - Tubular connection system
        Round and square tubes
        Round tubes

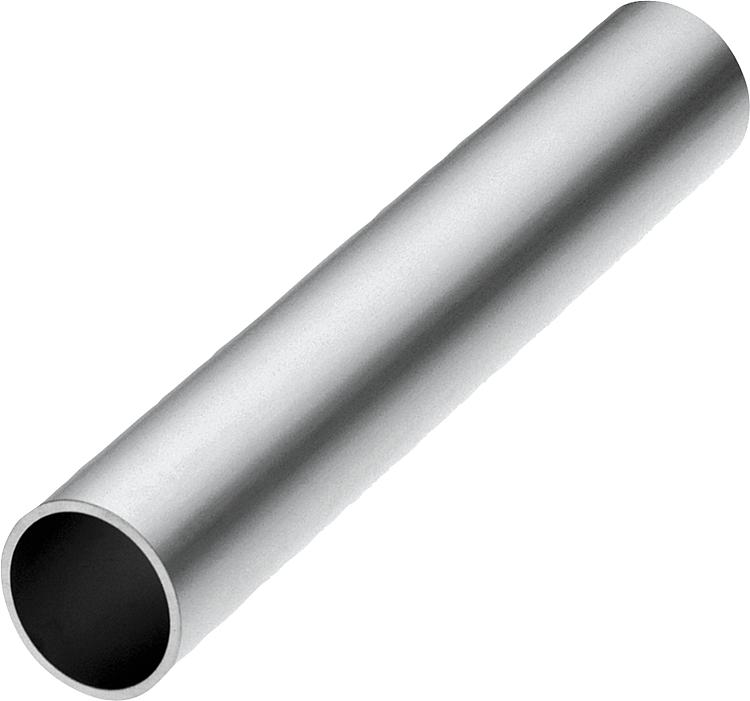

Item description/product images

DescriptionMaterial:Steel 1.0037.
Aluminium EN AW-6060.Version:Steel electro zinc-plated.
Aluminium clear anodised.Note:The production tolerances for round tubes are adapted to the tube clamping system.On request:- stainless steel tubes
- customer specific lengthsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29050_R Round tubes

128 kB

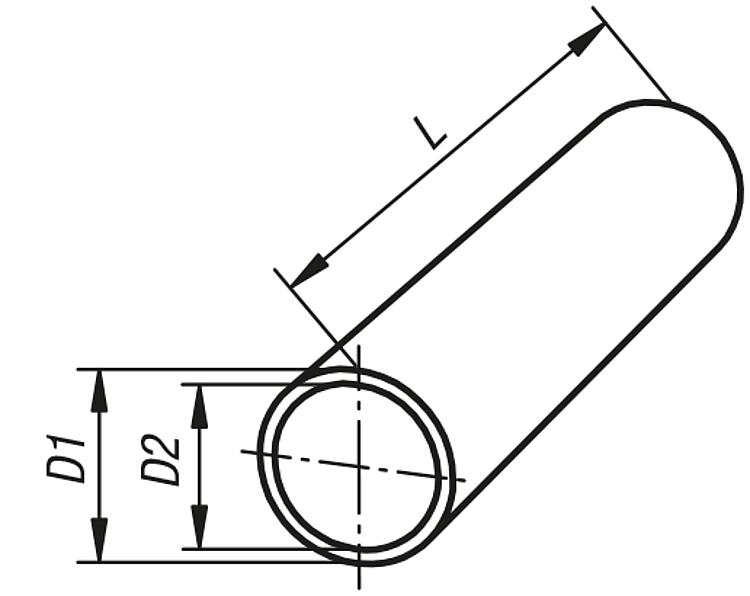

Drawings

Item selection/filter

	steel aluminium	Ø12 x 1,5 Ø14 x 1,5 Ø15 x 1,5 Ø16 x 1,5 Ø18 x 1,5 Ø20 x 2 Ø25 x 2 Ø30 x 2 Ø40 x 4 Ø50 x 4 Ø20 x 3 Ø40 x 3 Ø50 x 3	12 ±0,1 14 ±0,1 15 ±0,1 16 ±0,1 18 ±0,1 20 ±0,1 25 ±0,1 30 ±0,1 40 ±0,15 50 ±0,2	9 11 12 13 15 16 21 26 32 42 14 34 44	500 1000 2000				Reset
Order No.	Main material	Description	D1	D2	L	CAD	Acc.	Price	Order
29050-0112X500	steel	Ø12 x 1,5	12 ±0,1	9	500			on request
29050-0112X1000	steel	Ø12 x 1,5	12 ±0,1	9	1000			on request
29050-0112X2000	steel	Ø12 x 1,5	12 ±0,1	9	2000			on request
29050-0114X500	steel	Ø14 x 1,5	14 ±0,1	11	500			on request
29050-0114X1000	steel	Ø14 x 1,5	14 ±0,1	11	1000			on request
29050-0114X2000	steel	Ø14 x 1,5	14 ±0,1	11	2000			on request
29050-0115X500	steel	Ø15 x 1,5	15 ±0,1	12	500			on request
29050-0115X1000	steel	Ø15 x 1,5	15 ±0,1	12	1000			on request
29050-0115X2000	steel	Ø15 x 1,5	15 ±0,1	12	2000			on request
29050-0116X500	steel	Ø16 x 1,5	16 ±0,1	13	500			on request
29050-0116X1000	steel	Ø16 x 1,5	16 ±0,1	13	1000			on request
29050-0116X2000	steel	Ø16 x 1,5	16 ±0,1	13	2000			on request
29050-0118X500	steel	Ø18 x 1,5	18 ±0,1	15	500			on request
29050-0118X1000	steel	Ø18 x 1,5	18 ±0,1	15	1000			on request
29050-0118X2000	steel	Ø18 x 1,5	18 ±0,1	15	2000			on request
29050-0120X500	steel	Ø20 x 2	20 ±0,1	16	500			on request
29050-0120X1000	steel	Ø20 x 2	20 ±0,1	16	1000			on request
29050-0120X2000	steel	Ø20 x 2	20 ±0,1	16	2000			on request
29050-0125X500	steel	Ø25 x 2	25 ±0,1	21	500			on request
29050-0125X1000	steel	Ø25 x 2	25 ±0,1	21	1000			on request
29050-0125X2000	steel	Ø25 x 2	25 ±0,1	21	2000			on request
29050-0130X500	steel	Ø30 x 2	30 ±0,1	26	500			on request
29050-0130X1000	steel	Ø30 x 2	30 ±0,1	26	1000			on request
29050-0130X2000	steel	Ø30 x 2	30 ±0,1	26	2000			on request
29050-0140X500	steel	Ø40 x 4	40 ±0,15	32	500			on request
29050-0140X1000	steel	Ø40 x 4	40 ±0,15	32	1000			on request
29050-0140X2000	steel	Ø40 x 4	40 ±0,15	32	2000			on request
29050-0150X500	steel	Ø50 x 4	50 ±0,2	42	500			on request
29050-0150X1000	steel	Ø50 x 4	50 ±0,2	42	1000			on request
29050-0150X2000	steel	Ø50 x 4	50 ±0,2	42	2000			on request
29050-0220X500	aluminium	Ø20 x 3	20 ±0,1	14	500			on request
29050-0220X1000	aluminium	Ø20 x 3	20 ±0,1	14	1000			on request
29050-0220X2000	aluminium	Ø20 x 3	20 ±0,1	14	2000			on request
29050-0230X500	aluminium	Ø30 x 2	30 ±0,1	26	500			on request
29050-0230X1000	aluminium	Ø30 x 2	30 ±0,1	26	1000			on request
29050-0230X2000	aluminium	Ø30 x 2	30 ±0,1	26	2000			on request
29050-0240X500	aluminium	Ø40 x 3	40 ±0,15	34	500			on request
29050-0240X1000	aluminium	Ø40 x 3	40 ±0,15	34	1000			on request
29050-0240X2000	aluminium	Ø40 x 3	40 ±0,15	34	2000			on request
29050-0250X500	aluminium	Ø50 x 3	50 ±0,2	44	500			on request
29050-0250X1000	aluminium	Ø50 x 3	50 ±0,2	44	1000			on request
29050-0250X2000	aluminium	Ø50 x 3	50 ±0,2	44	2000			on request
