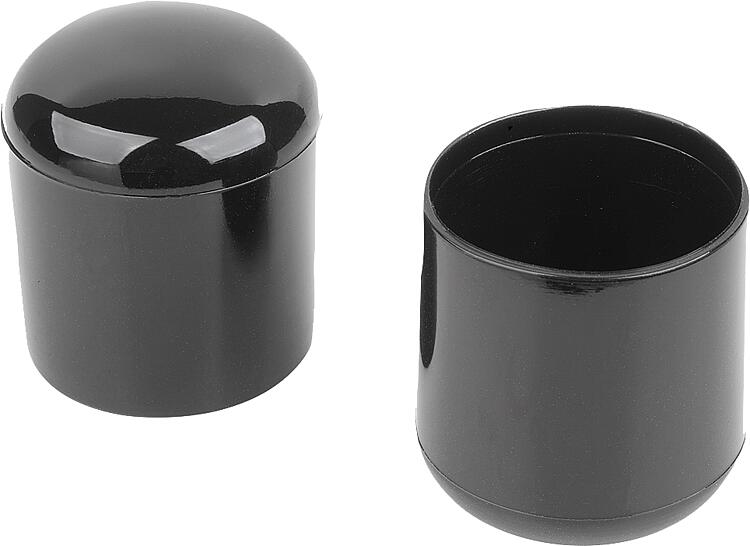

        Protective caps, plastic for round tubes

Item description/product images

DescriptionMaterial:Body soft PVC.Version:Body black.Note:Hardness Shore 92A.
UV-resistant.

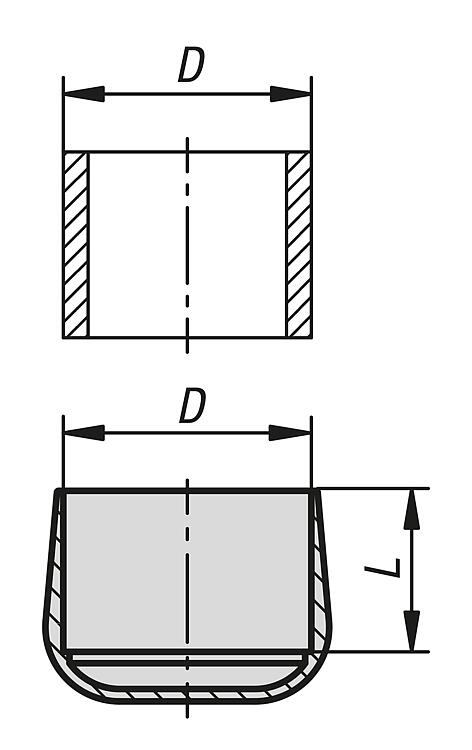

ØD = Tube outside diameter onto which the the respective cap fits.Application:The caps serve as protection against sharp edges on pipes.Temperature range:Cold tolerant down to approx. -15 °C under load.Assembly:Slight heating to ca. 40 °C simplifies the installation, the adhesion is increased and larger pipe tolerances can be compensated for.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29056-05 Protective caps, plastic for round tubes

132 kB

Drawings

Item selection/filter

	5,8-6,2 7,9-8,5 9,8-10,2 11,8-12,8 15,5-16,5 17,8-18,8 18,8-19,4 19,4-20,8 21,8-23 24,5-26 26,5-28 27,5-29 29,5-31,5 31,5-33,5 33-35,5 37-39 39-41 41-43 42-44,5 44-46 47-49,5 48,5-51	10 11 13 15 22,5 21 22 21,5 24 26 25 27				Reset
Order No.	D	L	CAD	Acc.	Price	Order
29056-05-06	5,8-6,2	10			on request
29056-05-08	7,9-8,5	11			on request
29056-05-10	9,8-10,2	13			on request
29056-05-12	11,8-12,8	15			on request
29056-05-16	15,5-16,5	22,5			on request
29056-05-18	17,8-18,8	21			on request
29056-05-19	18,8-19,4	22			on request
29056-05-20	19,4-20,8	21,5			on request
29056-05-22	21,8-23	22			on request
29056-05-25	24,5-26	24			on request
29056-05-27	26,5-28	26			on request
29056-05-28	27,5-29	25			on request
29056-05-30	29,5-31,5	26			on request
29056-05-32	31,5-33,5	26			on request
29056-05-34	33-35,5	26			on request
29056-05-38	37-39	27			on request
29056-05-40	39-41	26			on request
29056-05-42	41-43	26			on request
29056-05-43	42-44,5	26			on request
29056-05-45	44-46	26			on request
29056-05-48	47-49,5	27			on request
29056-05-50	48,5-51	27			on request
