Tube end plugs, plastic for round and square tubes

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Tube connectors Tube clamps Tube joints Tubes Columns
      - Tubular connection system
        Tube end plugs, plastic for round and square tubes

Item description/product images

Show/filter all items

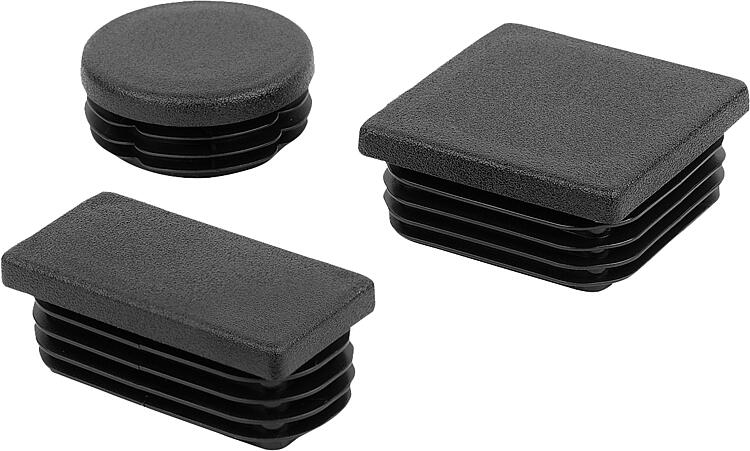

DescriptionMaterial:Body polyethylene.Version:Body black.Note:*The article exhibits longitudinal distortion due to the material behaviour and geometry - well suited for gliders and foot plugs.

The lamellar are closed or interrupted. For technical production reasons, cast residues may exceed the shaft length.
The number of laminates per plug varies between 2 and 4.

The information after the name of the matching tubes in the table under ID refers to the wall thickness of the tubes.
Application:These plugs are for corner protection and plugging the tube ends.Assembly:They can be pushed in by hand or tapped in with a plastic hammer.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29056 Tube end plugs, plastic for round and square tubes

243 kB

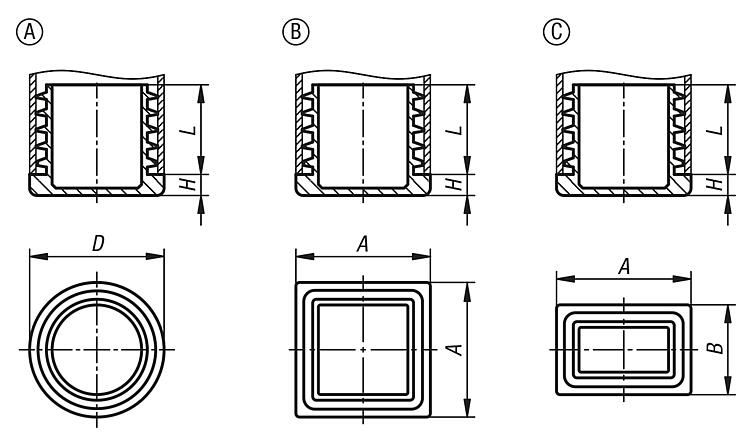

Drawings (total overview)

Tube end plugs, plastic for round and square tubes, Form A, round

More information

Drawings

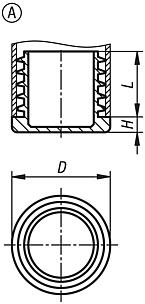

Tube end plugs, plastic for round and square tubes, Form A, round

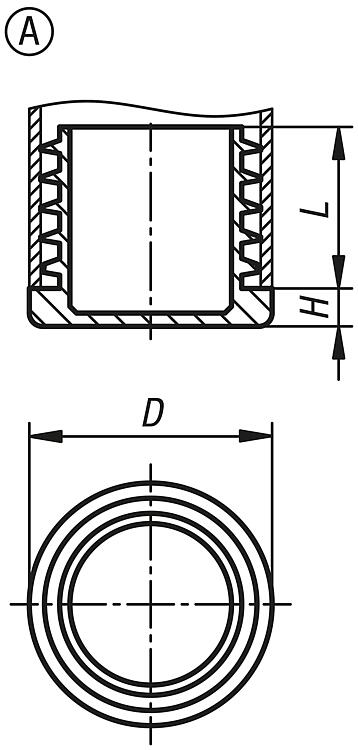

Item selection/filter

Order No.	Form	Form definition	D	H	L	Suitable for	Price
29056-000100815	A	round	10	3,5	10	Ø10x0.8-1.5	on request
29056-000120820	A	round	12	3,5	10	Ø12x0.8-2	on request
29056-000130820	A	round	13	4	10,5	Ø13x0.8-2	on request
29056-000140820	A	round	14	5	11,5	Ø14x0.8-2	on request
29056-000150820	A	round	15	3	11,5	Ø15x0.8-2	on request
29056-000160820	A	round	16	5	11,5	Ø16x0.8-2	on request
29056-018150	A	round	18	5	11,5	Ø18x0,8-2	on request
29056-000182535	A	round	18	5	11,5	Ø18x2.5-3.5	on request
29056-000190825	A	round	19	5	11,5	Ø19x0.8-2.5	on request
29056-020200	A	round	20	5	11,5	Ø20x0,8-2,5	on request
29056-000210825	A	round	21	5	11,5	Ø21x0.8-2.5	on request
29056-000220830	A	round	22	5	11,5	Ø22x0.8-3	on request
29056-000230830	A	round	23	5	11,5	Ø23x0.8-3	on request
29056-000240825	A	round	24	5	11,5	Ø24x0.8-2.5	on request
29056-025200	A	round	25	5	11,5	Ø25x1-3	on request
29056-000253050	A	round	25	5	11,5	Ø25x3-5	on request
29056-000260830	A	round	26	5	11,5	Ø26x0.8-3	on request
29056-000270830	A	round	27	5	11,5	Ø27x0.8-3	on request
29056-000280825	A	round	28	5	11,5	Ø28x0.8-2.5	on request
29056-030200	A	round	30	5	11,5	Ø30x0,8-2,5	on request
29056-000302545	A	round	30	5	11,5	Ø30x2.5-4.5	on request
29056-000320830	A	round	32	5	11,5	Ø32x0.8-3	on request
29056-000322545	A	round	32	5	11,5	Ø32x2.5-4.5	on request
29056-000340830	A	round	34	5	11,5	Ø34x0.8-3	on request
29056-000343540	A	round	34	5	11,5	Ø34x3.5-4	on request
29056-000351030	A	round	35	5	11,5	Ø35x1-3	on request
29056-000353050	A	round	35	5	11,5	Ø35x3-5	on request
29056-000361030	A	round	36	5	11,5	Ø36x1-3	on request
29056-000371030	A	round	37	5	11,5	Ø37x1-3	on request
29056-000381030	A	round	38	5	11,5	Ø38x1-3	on request
29056-000383050	A	round	38	5	11,5	Ø38x3-5	on request
29056-040300	A	round	40	5	11,5	Ø40x1-3	on request
29056-040400	A	round	40	5	11,5	Ø40x3-5	on request
29056-000420825	A	round	42	5	11,5	Ø42x0.8-2.5	on request
29056-000422550	A	round	42	5	11,5	Ø42x2.5-5	on request
29056-000432025	A	round	43	5	11,5	Ø43x2-2.5	on request
29056-000433035	A	round	43	5	11,5	Ø43x3-3.5	on request
29056-000441232	A	round	44,5	5	11,5	Ø44.5x1.2-3.2	on request
29056-000450830	A	round	45	5	11,5	Ø45x0.8-3	on request
29056-000453050	A	round	45	5	11,5	Ø45x3-5	on request
29056-000461535	A	round	46	5	11,5	Ø46x1.5-3.5	on request
29056-000481236	A	round	48,4	6	11,5	Ø48.4x1.2-3.6	on request
29056-000482552	A	round	48,4	6	11,5	Ø48.4x2.5-5.2	on request
29056-000501025	A	round	50	5	11,5	Ø50x1-2.5	on request
29056-050400	A	round	50	5	11,5	Ø50x2,5-4,5	on request
29056-000521535	A	round	52	5	14,5	Ø52x1.5-3.5	on request
29056-000551030	A	round	55	5	14,5	Ø55x1-3	on request
29056-000553050	A	round	55	5	14,5	Ø55x3-5	on request
29056-000601030	A	round	60	5	18	Ø60x1-3	on request
29056-000603050	A	round	60	5	18	Ø60x3-5	on request
29056-000631535	A	round	63,5	5	21	Ø63.5x1.5-3.5	on request
29056-000651535	A	round	65	5	21	Ø65x1.5-3.5	on request
29056-000653050	A	round	65	5	21	Ø65x3-5	on request
29056-000701035	A	round	70	5	21	Ø70x1-3.5	on request
29056-000751035	A	round	75	6	21	Ø75x1-3.5	on request
29056-000753050	A	round	75	6	21	Ø75x3-5	on request
29056-000761540	A	round	76,2	6	21	Ø76.2x1.5-4	on request
29056-000803055	A	round	80	6	21	Ø80x3-5.5	on request
29056-000851540	A	round	85	6	21	Ø85x1.5-4	on request
29056-000891840	A	round	88,9	6	21	Ø88.9x1.8-4	on request
29056-000901540	A	round	90	6	21	Ø90x1.5-4	on request
29056-000951540	A	round	95	6	21	Ø95x1.5-4	on request
29056-001001540	A	round	100	6	28	Ø100x1.5-4	on request

Tube end plugs, plastic for round and square tubes, Form B, square

More information

Drawings

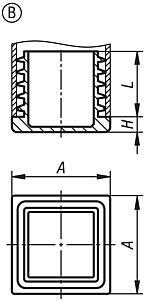

Tube end plugs, plastic for round and square tubes, Form B, square

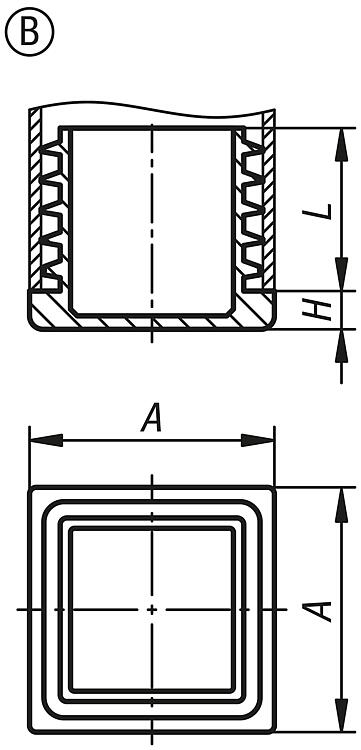

Item selection/filter

Order No.	Form	Form definition	A	H	L	Suitable for	Price
29056-413130520	B	-	13	4	11,5	-	on request
29056-415150820	B	-	15	3	11,5	-	on request
29056-416160820	B	-	16	5	11,5	-	on request
29056-418181530	B	-	18	5	11,5	-	on request
29056-420100	B	-	20	5	11,5	20 x 20 x 0,8-3	on request
29056-422220830	B	-	22	5	11,5	-	on request
29056-425150	B	-	25	5	11,5	25 x 25 x 1-3	on request
29056-428281030	B	-	28	5	11,5	28x28x1-3	on request
29056-430200	B	-	30	5	11,5	30 x 30 x 1-2,5	on request
29056-430302550	B	-	30	5	11,5	-	on request
29056-432321035	B	-	32	5	11,5	-	on request
29056-434341030	B	-	34	5	14,5	34x34x1-3	on request
29056-435350830	B	-	35	5	14,5	-	on request
29056-438381035	B	-	38	5	14,5	-	on request
29056-440300	B	-	40	5	11,5	40 x 40 x 1-3	on request
29056-440400	B	-	40	5	11,5	40 x 40 x 3-5	on request
29056-445451030	B	-	45	5	14,5	45x45x1-3	on request
29056-445453050	B	-	45	5	14,5	45x45x3-5	on request
29056-448482545	B	-	48	5	14,5	-	on request
29056-450500830	B	-	50	5	14,5	-	on request
29056-450503050	B	-	50	5	14,5	50x50x3-5	on request
29056-452521535	B	-	52	5	14,5	-	on request
29056-455552045	B	-	55	5	14,5	-	on request
29056-460601540	B	-	60	5	21	-	on request
29056-465652045	B	-	65	5	21	-	on request
29056-470702045	B	-	70	5	18,7	-	on request
29056-475752045	B	-	75	6	21	-	on request
29056-480802045	B	-	80	6	21	-	on request
29056-490903050	B	-	90	6	21	90x90x3-5	on request
29056-495953555	B	-	95	6	21	-	on request
29056-400001040	B	-	100	7	24	100x100x1-4	on request

Tube end plugs, plastic for round and square tubes, Form C, rectangular

More information

Drawings

Tube end plugs, plastic for round and square tubes, Form C, rectangular

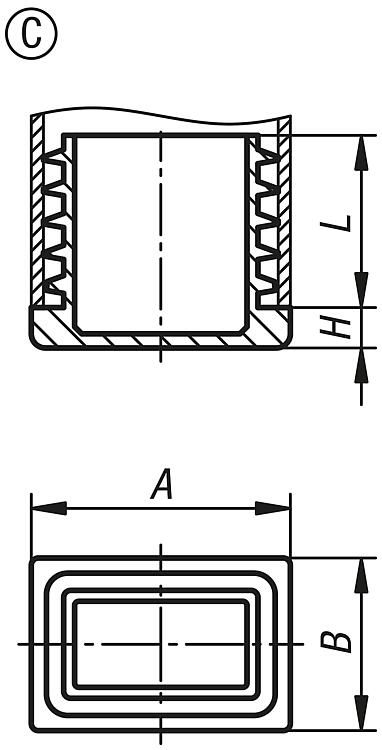

Item selection/filter

Order No.	Form	Form definition	A	B	H	L	Suitable for	Price
29056-220100820	C	-	20	10	3	11,5	-	on request
29056-220151020	C	-	20	15	5	11,5	20x15x1-2	on request
29056-225100820	C	-	25	10	3	11,5	-	on request
29056-225150825	C	-	25	15	5	11,5	-	on request
29056-225201030	C	-	25	20	5	11,5	25x20x1-3	on request
29056-230100820	C	-	30	10	3	11,5	-	on request
29056-230150825	C	-	30	15	5	11,5	-	on request
29056-230201030	C	-	30	20	5	11,5	30x20x1-3	on request
29056-230250830	C	-	30	25	5	11,5	-	on request
29056-235100820	C	-	35	10	3,5	11,5	-	on request
29056-235151030	C	-	35	15	5	11,5	35x15x1-3	on request
29056-235200830	C	-	35	20	5	11,5	-	on request
29056-235250830	C	-	35	25	5	11,5	-	on request
29056-240151020	C	-	40	15	5	11,7	40x15x1-2	on request
29056-240200830	C	-	40	20	5	11,5	-	on request
29056-240251035	C	-	40	25	5	11,5	-	on request
29056-240301030	C	-	40	30	5	11,5	40x30x1-3	on request
29056-240351030	C	-	40	35	5	11,5	40x35x1-3	on request
29056-245201030	C	-	45	20	5	11,5	45x20x1-3	on request
29056-245250830	C	-	45	25	5	11,5	-	on request
29056-245300830	C	-	45	30	5	11,5	-	on request
29056-245351035	C	-	45	35	5	11,5	-	on request
29056-250100820	C	-	50	10	3,5	11,5	-	on request
29056-250200830	C	-	50	20	5	14,5	-	on request
29056-250250830	C	-	50	25	5	14,5	-	on request
29056-250301030	C	-	50	30	5	14,5	50x30x1-3	on request
29056-250351035	C	-	50	35	5	14,5	-	on request
29056-250400830	C	-	50	40	5	14,5	-	on request
29056-255401540	C	-	55	40	5	14,5	-	on request
29056-260151020	C	-	60	15	5	14,5	60x15x1-2	on request
29056-260201030	C	-	60	20	5	14,5	60x20x1-3	on request
29056-260250830	C	-	60	25	5	14,5	-	on request
29056-260301030	C	-	60	30	5	14,5	60x30x1-3	on request
29056-260351535	C	-	60	35	5	14,5	-	on request
29056-260401030	C	-	60	40	5	14,5	60x40x1-3	on request
29056-260451540	C	-	60	45	5	14,5	-	on request
29056-260501535	C	-	60	50	5	14,5	-	on request
29056-270301030	C	-	70	30	5	14,5	70x30x1-3	on request
29056-270351535	C	-	70	35	5	14,5	-	on request
29056-270401030	C	-	70	40	5	14,5	70x40x1-3	on request
29056-270502040	C	-	70	50	5	14,5	70x50x2-4	on request
29056-275251025	C	-	75	25	5	14,5	-	on request
29056-275500825	C	-	75	50	5	14,5	-	on request
29056-280251030	C	-	80	25	5	14,5	*80x25x1-3	on request
29056-280301025	C	-	80	30	5	14,5	-	on request
29056-280401030	C	-	80	40	5	14,5	80x40x1-3	on request
29056-280451535	C	-	80	45	5	14,5	-	on request
29056-280501535	C	-	80	50	5	21,5	-	on request
29056-280601545	C	-	80	60	5	24	-	on request
29056-290402040	C	-	90	40	5	14,5	*90x40x2-4	on request
29056-290502045	C	-	90	50	5	21,5	-	on request
29056-290703055	C	-	90	70	6	21,5	-	on request
29056-200301535	C	-	100	30	5	14,5	-	on request
29056-200401535	C	-	100	40	5	14,5	-	on request
29056-200501545	C	-	100	50	5	24	-	on request
29056-200602545	C	-	100	60	6	24,5	-	on request
29056-200803055	C	-	100	80	6	24	-	on request
