        Indexing plungers, steel or stainless steel without collar, with threaded pin, inch

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel version
Indexing pin hardened:
grade 5.8.

Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.

Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged.
Special grips can be fitted on the projecting threaded pin. This pin is also suitable for automatic actuation by e.g. program controlled pneumatic cylinder or by remote control using bowden cables.
A washer is available to aid screwing in the indexing plungers. The washer is placed on the threaded sleeve so that the carrier pins engage in the slot.On request:Special versions.Accessory:Spacer rings 03089.

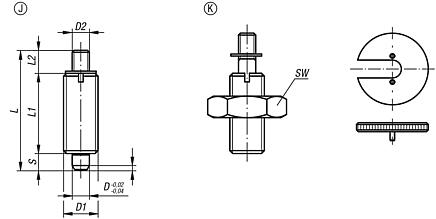

fastening sets for thin-walled parts 03094-10.Drawing reference:

Form J: with threaded pin, without locknut
Form K: with threaded pin, with locknut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096 inch Indexing plungers without collar, inch

212 kB

Drawings (total overview)

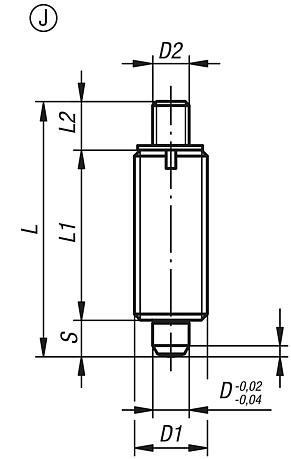

Indexing plungers, steel or stainless steel, without collar, with threaded pin, no locknut, inch

More information

Drawings

Indexing plungers, steel or stainless steel, without collar, with threaded pin, no locknut, inch

Item selection/filter

	9 0 1 2 3 4 5	steel stainless steel	hardened not hardened	J	3 4 5 6 8 10 12 16	1/4-28 5/16-24 3/8-24 1/2-13 5/8-11 3/4-10 3/4-16 1-8	M2 M3 M4 M6 M8 M10	24 32 37 42 56 62 66 80	17 21 24 28 36 40 42 50	3,5 7 8 12 14	3,5 4 5 6 8 10 12 16	0,8 1 1,3 1,8 2,3 2,8 3,2	4,5 6 5 15 20	10 12 14 35 34 39 46					Reset
Order No.	Size	Main material	Surface finish body	Form	D	D1	D2	L	L1	L2	Travel S	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No.	CAD	Acc.	Price	Order
03096-1903AJ	9	steel	hardened	J	3	1/4-28	M2	24	17	3,5	3,5	0,8	4,5	10	03094-99			on request
03096-1004AK	0	steel	hardened	J	4	5/16-24	M3	32	21	7	4	1	6	12	03094-90			on request
03096-1105AL	1	steel	hardened	J	5	3/8-24	M4	37	24	8	5	1,3	5	12	03094-91			on request
03096-1206A5	2	steel	hardened	J	6	1/2-13	M6	42	28	8	6	1,8	6	14	03094-92			on request
03096-1308A6	3	steel	hardened	J	8	5/8-11	M8	56	36	12	8	2,3	15	35	03094-93			on request
03096-1410A7	4	steel	hardened	J	10	3/4-10	M8	62	40	12	10	2,8	15	34	03094-94			on request
03096-1412AO	4	steel	hardened	J	12	3/4-16	M8	66	42	12	12	2,8	15	39	03094-94			on request
03096-1516A8	5	steel	hardened	J	16	1-8	M10	80	50	14	16	3,2	20	46	03094-95			on request
03096-01903AJ	9	stainless steel	hardened	J	3	1/4-28	M2	24	17	3,5	3,5	0,8	4,5	10	03094-99			on request
03096-01004AK	0	stainless steel	hardened	J	4	5/16-24	M3	32	21	7	4	1	6	12	03094-90			on request
03096-01105AL	1	stainless steel	hardened	J	5	3/8-24	M4	37	24	8	5	1,3	5	12	03094-91			on request
03096-01206A5	2	stainless steel	hardened	J	6	1/2-13	M6	42	28	8	6	1,8	6	14	03094-92			on request
03096-01308A6	3	stainless steel	hardened	J	8	5/8-11	M8	56	36	12	8	2,3	15	35	03094-93			on request
03096-01410A7	4	stainless steel	hardened	J	10	3/4-10	M8	62	40	12	10	2,8	15	34	03094-94			on request
03096-01412AO	4	stainless steel	hardened	J	12	3/4-16	M8	66	42	12	12	2,8	15	39	03094-94			on request
03096-01516A8	5	stainless steel	hardened	J	16	1-8	M10	80	50	14	16	3,2	20	46	03094-95			on request
03096-11903AJ	9	stainless steel	not hardened	J	3	1/4-28	M2	24	17	3,5	3,5	0,8	4,5	10	03094-99			on request
03096-11004AK	0	stainless steel	not hardened	J	4	5/16-24	M3	32	21	7	4	1	6	12	03094-90			on request
03096-11105AL	1	stainless steel	not hardened	J	5	3/8-24	M4	37	24	8	5	1,3	5	12	03094-91			on request
03096-11206A5	2	stainless steel	not hardened	J	6	1/2-13	M6	42	28	8	6	1,8	6	14	03094-92			on request
03096-11308A6	3	stainless steel	not hardened	J	8	5/8-11	M8	56	36	12	8	2,3	15	35	03094-93			on request
03096-11410A7	4	stainless steel	not hardened	J	10	3/4-10	M8	62	40	12	10	2,8	15	34	03094-94			on request
03096-11412AO	4	stainless steel	not hardened	J	12	3/4-16	M8	66	42	12	12	2,8	15	39	03094-94			on request
03096-11516A8	5	stainless steel	not hardened	J	16	1-8	M10	80	50	14	16	3,2	20	46	03094-95			on request

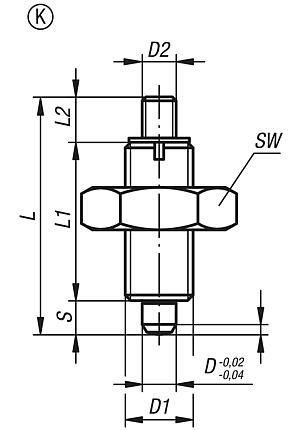

Indexing plungers, steel or stainless steel, without collar, with threaded pin and locknut, inch

More information

Drawings

Indexing plungers, steel or stainless steel, without collar, with threaded pin and locknut, inch

Item selection/filter

	K	steel stainless steel	hardened not hardened	3 4 5 6 8 10 12 16	1/4-28 5/16-24 3/8-24 1/2-13 5/8-11 3/4-10 3/4-16 1-8	M2 M3 M4 M6 M8 M10	24 32 37 42 56 62 66 80	17 21 24 28 36 40 42 50	3,5 7 8 12 14	3,5 4 5 6 8 10 12 16	7/16 1/2 9/16 3/4 15/16 1-1/8 -	0,8 1 1,3 1,8 2,3 2,8 3,2	4,5 6 5 15 20	10 12 14 35 34 39 46					Reset
Order No.	Form	Main material	Surface finish body	D	D1	D2	L	L1	L2	Travel S	SW	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No. screw-in washer	CAD	Acc.	Price	Order
03096-2903AJ	K	steel	hardened	3	1/4-28	M2	24	17	3,5	3,5	7/16	0,8	4,5	10	03094-99			on request
03096-2004AK	K	steel	hardened	4	5/16-24	M3	32	21	7	4	1/2	1	6	12	03094-90			on request
03096-2105AL	K	steel	hardened	5	3/8-24	M4	37	24	8	5	9/16	1,3	5	12	03094-91			on request
03096-2206A5	K	steel	hardened	6	1/2-13	M6	42	28	8	6	3/4	1,8	6	14	03094-92			on request
03096-2308A6	K	steel	hardened	8	5/8-11	M8	56	36	12	8	15/16	2,3	15	35	03094-93			on request
03096-2410A7	K	steel	hardened	10	3/4-10	M8	62	40	12	10	1-1/8	2,8	15	34	03094-94			on request
03096-2412AO	K	steel	hardened	12	3/4-16	M8	66	42	12	12	1-1/8	2,8	15	39	03094-94			on request
03096-2516A8	K	steel	hardened	16	1-8	M10	80	50	14	16	-	3,2	20	46	03094-95			on request
03096-02903AJ	K	stainless steel	hardened	3	1/4-28	M2	24	17	3,5	3,5	7/16	0,8	4,5	10	03094-99			on request
03096-02004AK	K	stainless steel	hardened	4	5/16-24	M3	32	21	7	4	1/2	1	6	12	03094-90			on request
03096-02105AL	K	stainless steel	hardened	5	3/8-24	M4	37	24	8	5	9/16	1,3	5	12	03094-91			on request
03096-02206A5	K	stainless steel	hardened	6	1/2-13	M6	42	28	8	6	3/4	1,8	6	14	03094-92			on request
03096-02308A6	K	stainless steel	hardened	8	5/8-11	M8	56	36	12	8	15/16	2,3	15	35	03094-93			on request
03096-02410A7	K	stainless steel	hardened	10	3/4-10	M8	62	40	12	10	1-1/8	2,8	15	34	03094-94			on request
03096-02412AO	K	stainless steel	hardened	12	3/4-16	M8	66	42	12	12	1-1/8	2,8	15	39	03094-94			on request
03096-02516A8	K	stainless steel	hardened	16	1-8	M10	80	50	14	16	-	3,2	20	46	03094-95			on request
03096-12903AJ	K	stainless steel	not hardened	3	1/4-28	M2	24	17	3,5	3,5	7/16	0,8	4,5	10	03094-99			on request
03096-12004AK	K	stainless steel	not hardened	4	5/16-24	M3	32	21	7	4	1/2	1	6	12	03094-90			on request
03096-12105AL	K	stainless steel	not hardened	5	3/8-24	M4	37	24	8	5	9/16	1,3	5	12	03094-91			on request
03096-12206A5	K	stainless steel	not hardened	6	1/2-13	M6	42	28	8	6	3/4	1,8	6	14	03094-92			on request
03096-12308A6	K	stainless steel	not hardened	8	5/8-11	M8	56	36	12	8	15/16	2,3	15	35	03094-93			on request
03096-12410A7	K	stainless steel	not hardened	10	3/4-10	M8	62	40	12	10	1-1/8	2,8	15	34	03094-94			on request
03096-12412AO	K	stainless steel	not hardened	12	3/4-16	M8	66	42	12	12	1-1/8	2,8	15	39	03094-94			on request
03096-12516A8	K	stainless steel	not hardened	16	1-8	M10	80	50	14	16	-	3,2	20	46	03094-95			on request
