03010 inchSpring plungers with slot and ball, stainless steel, inch |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. Version:Bright. Ball hardened.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

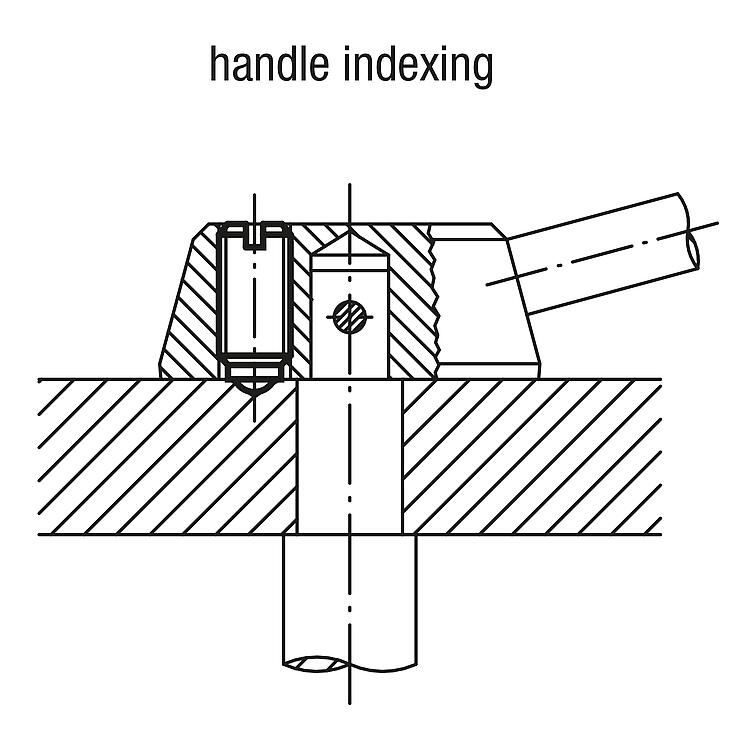

Drawings (total overview) |
Spring plungers with slot and ball, stainless steel, standard spring force, inch |
More information |
| | -
- 6-32
- 8-32
- 8-36
- 10-32
- 1/4-20
- 1/4-28
- 5/16-18
- 3/8-16
- 1/2-13
- 5/8-11
| | | | | | | | | | Reset |
|---|
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03010-AD | 6-32 | 1,5 | 7 | 0,4 | 0,4 | 1,5 | 3 |  | | on request | | | 03010-AE | 8-32 | 2,5 | 9 | 0,8 | 0,6 | 4 | 10 | | | on request | | | 03010-AG | 8-36 | 2,5 | 9 | 0,8 | 0,6 | 4 | 10 | | | on request | | | 03010-A1 | 10-32 | 3 | 12 | 0,9 | 0,8 | 6 | 11 | | | on request | | | 03010-A2 | 1/4-20 | 3,5 | 14 | 1 | 1 | 9 | 13 | | | on request | | | 03010-AJ | 1/4-28 | 3,5 | 14 | 1 | 1 | 9 | 13 | | | on request | | | 03010-A3 | 5/16-18 | 5 | 16 | 1,5 | 1,2 | 15 | 30 | | | on request | | | 03010-A4 | 3/8-16 | 6 | 19 | 2 | 1,6 | 20 | 35 | | | on request | | | 03010-A5 | 1/2-13 | 8 | 22 | 2,5 | 2 | 30 | 55 | | | on request | | | 03010-A6 | 5/8-11 | 10 | 24 | 3,5 | 2,5 | 65 | 125 | | | on request | |
|
Spring plungers with slot and ball, stainless steel, strong spring force, inch |
More information |
| | -
- 10-32
- 1/4-20
- 1/4-28
- 5/16-18
- 3/8-16
- 1/2-13
- 5/8-11
| | | | | | | | | | Reset |
|---|
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03010-2A1 | 10-32 | 3 | 12 | 0,9 | 0,8 | 19 | 30 | | | on request | | | 03010-2A2 | 1/4-20 | 3,5 | 14 | 1 | 1 | 28 | 40 | | | on request | | | 03010-2AJ | 1/4-28 | 3,5 | 14 | 1 | 1 | 28 | 40 | | | on request | | | 03010-2A3 | 5/16-18 | 5 | 16 | 1,5 | 1,2 | 47 | 73 | | | on request | | | 03010-2A4 | 3/8-16 | 6 | 19 | 2 | 1,6 | 66 | 100 | | | on request | | | 03010-2A5 | 1/2-13 | 8 | 22 | 2,5 | 2 | 66 | 120 | | | on request | | | 03010-2A6 | 5/8-11 | 10 | 24 | 3,5 | 2,5 | 90 | 180 | | | on request | |
|
