03036 inchSpring plungers with hex socket and ball, stainless steel, with... |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

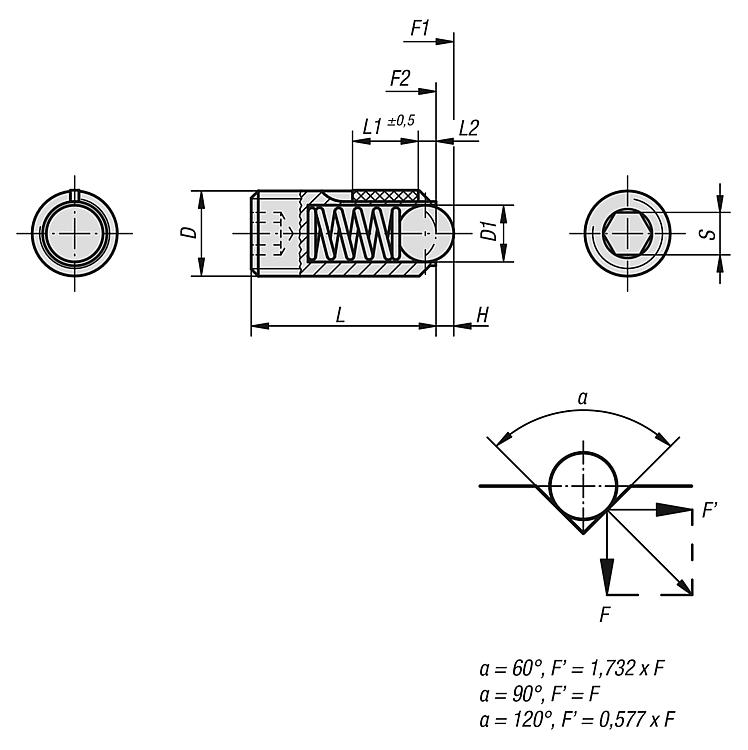

Thread lock nylon. Version:Bright. Ball hardened.Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with hex socket and ball, standard spring force, with thread lock, inch |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| 03036-AJ | 1/4-28 | 3,5 | 1 | 15 | 7 | 1/8 | 9 | 13 | 0,44 | 0,21 |  | | on request | | | 03036-A2 | 1/4-20 | 3,5 | 1 | 15 | 7 | 1/8 | 9 | 13 | 0,44 | 0,21 | | | on request | | | 03036-A3 | 5/16-18 | 5 | 1,5 | 18 | 8 | 5/32 | 15 | 30 | 1,1 | 0,38 | | | on request | | | 03036-A4 | 3/8-16 | 6 | 2 | 23 | 9 | 3/16 | 20 | 35 | 1,3 | 0,6 | | | on request | | | 03036-A5 | 1/2-13 | 8 | 2,5 | 26 | 10 | 7/32 | 30 | 55 | 2 | 1,3 | | | on request | | | 03036-A6 | 5/8-11 | 10 | 3,5 | 33 | 14 | 5/16 | 65 | 125 | 3,9 | 3 | | | on request | |
|
Spring plungers with hex socket and ball, heavy spring force, with thread lock, inch |
More information |
Order No.
| D | D1 | H | L | L1 | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| 03036-2AJ | 1/4-28 | 3,5 | 1 | 15 | 7 | 1/8 | 28 | 40 | 0,44 | 0,21 | | | on request | | | 03036-2A2 | 1/4-20 | 3,5 | 1 | 15 | 7 | 1/8 | 28 | 40 | 0,44 | 0,21 | | | on request | | | 03036-2A3 | 5/16-18 | 5 | 1,5 | 18 | 8 | 5/32 | 47 | 73 | 1,1 | 0,38 | | | on request | | | 03036-2A4 | 3/8-16 | 6 | 2 | 23 | 9 | 3/16 | 66 | 100 | 1,3 | 0,6 | | | on request | | | 03036-2A5 | 1/2-13 | 8 | 2,5 | 26 | 10 | 7/32 | 66 | 120 | 2 | 1,3 | | | on request | | | 03036-2A6 | 5/8-11 | 10 | 3,5 | 33 | 14 | 5/16 | 90 | 180 | 3,9 | 3 | | | on request | |
|
