03040 inchSpring plungers with hexagon socket and thrust pin, steel, inch |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.

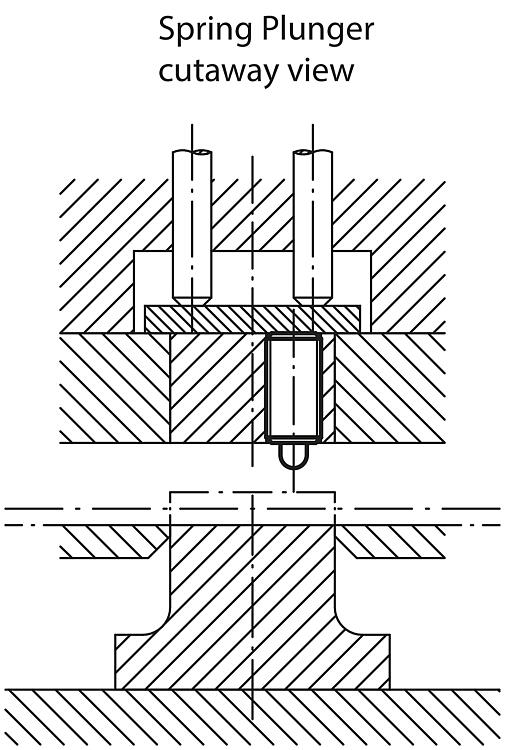

Thrust pin hardened.Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with hexagon socket and thrust pin, standard spring force, inch |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| 03040-AD | 6-32 | 1 | 1,5 | 10 | 1 | 0,4 | 0,7 | 0,5 | 3 | 03040-903 |  | | on request | | | 03040-AG | 8-36 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | 03040-904 | | | on request | | | 03040-AE | 8-32 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 5 | 16 | 03040-904 | | | on request | | | 03040-A1 | 10-32 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 6 | 20 | 03040-905 | | | on request | | | 03040-AJ | 1/4-28 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 7 | 20 | 03040-906 | | | on request | | | 03040-A2 | 1/4-20 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 7 | 20 | 03040-906 | | | on request | | | 03040-A3 | 5/16-18 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 9 | 35 | 03040-908 | | | on request | | | 03040-A4 | 3/8-16 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 9 | 35 | 03040-910 | | | on request | | | 03040-A5 | 1/2-13 | 6 | 4 | 28 | 2 | 2 | 4 | 12 | 55 | 03040-912 | | | on request | | | 03040-A6 | 5/8-11 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 45 | 100 | 03040-916 | | | on request | |
|
Spring plungers with hexagon socket and thrust pin, light spring force, inch |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| 03040-1AG | 8-36 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 2 | 7 | 03040-904 | | | on request | | | 03040-1AE | 8-32 | 1,5 | 1,5 | 15 | 0,6 | 0,6 | 1,3 | 2 | 7 | 03040-904 | | | on request | | | 03040-1A1 | 10-32 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 3 | 10 | 03040-905 | | | on request | | | 03040-1AJ | 1/4-28 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 3 | 9 | 03040-906 | | | on request | | | 03040-1A2 | 1/4-20 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 3 | 9 | 03040-906 | | | on request | | | 03040-1A3 | 5/16-18 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 4 | 16 | 03040-908 | | | on request | | | 03040-1A4 | 3/8-16 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 4 | 16 | 03040-910 | | | on request | | | 03040-1A5 | 1/2-13 | 6 | 4 | 28 | 2 | 2 | 4 | 5 | 27 | 03040-912 | | | on request | | | 03040-1A6 | 5/8-11 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 20 | 45 | 03040-916 | | | on request | |
|
Spring plungers with hexagon socket and thrust pin, strong spring force, inch |
More information |
Order No.
| D | D1 | H | L | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| 03040-2A1 | 10-32 | 2,4 | 2,3 | 18 | 0,8 | 0,8 | 1,5 | 11 | 29 | 03040-905 | | | on request | | | 03040-2AJ | 1/4-28 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 14 | 37 | 03040-906 | | | on request | | | 03040-2A2 | 1/4-20 | 2,7 | 2,5 | 20 | 1 | 1 | 2 | 14 | 37 | 03040-906 | | | on request | | | 03040-2A3 | 5/16-18 | 3,5 | 3 | 22 | 1,4 | 1,2 | 2,5 | 22 | 65 | 03040-908 | | | on request | | | 03040-2A4 | 3/8-16 | 4 | 3 | 22 | 1,4 | 1,6 | 3 | 19 | 70 | 03040-910 | | | on request | | | 03040-2A5 | 1/2-13 | 6 | 4 | 28 | 2 | 2 | 4 | 25 | 85 | 03040-912 | | | on request | | | 03040-2A6 | 5/8-11 | 7,5 | 5 | 32 | 2,5 | 2,5 | 5 | 60 | 150 | 03040-916 | | | on request | |
|
