        Spring plungers with hex socket and POM thrust pin, stainless steel, with thread lock, inch

Item description/product images

DescriptionMaterial:

Sleeve stainless steel 1.4305.
Thrust pin POM.
Spring stainless steel 1.4310.

Thread lock nylon.

Version:Bright.Note:The following are the equivalent inch spring plunger sizes with which the keys can be used.
M3 = 6-32
M4 = 8-32 and 8-36
M5 = 10-32
M6 = 1/4-20
M8 = 5/16-18
M10 = 3/8-16
M12 = 5/32

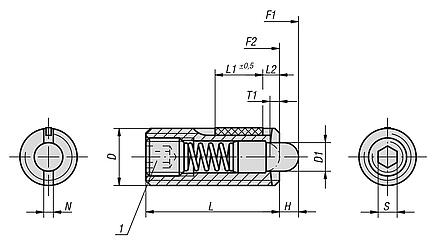

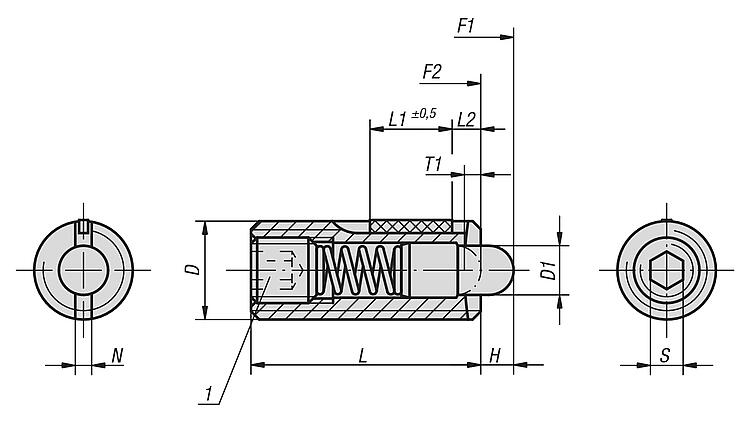

M16 = 5/8-11Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03059 inch Spring plungers with hexagon socket and POM thrust pin, stainless steel, LONG-LOK secured, inch

209 kB

Datasheet 03059 inch Spring plungers with hex socket and POM thrust pin, stainless steel, with thread lock, inch

209 kB

Drawings

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
03059-A1	10-32	2,4	2,3	18	7	0,8	0,8	1,5	5	17	0,12	0,08	03040-905	on request
03059-AJ	1/4-28	2,7	2,5	20	7	1	1	2	6	17	0,45	0,22	03040-906	on request
03059-A2	1/4-20	2,7	2,5	20	7	1	1	2	6	17	0,45	0,22	03040-906	on request
03059-A3	5/16-18	3,5	3	22	8	1,4	1,2	2,5	7	29	1,05	0,37	03040-908	on request
03059-A4	3/8-16	4	3	22	9	1,4	1,6	3	8	31	1,3	0,6	03040-910	on request
03059-A5	1/2-13	6	4	28	10	2	2	4	10	47	2	1,3	03040-912	on request
03059-A6	5/8-11	7,5	5	32	14	2,5	2,5	5	45	100	3,9	3	03040-916	on request
