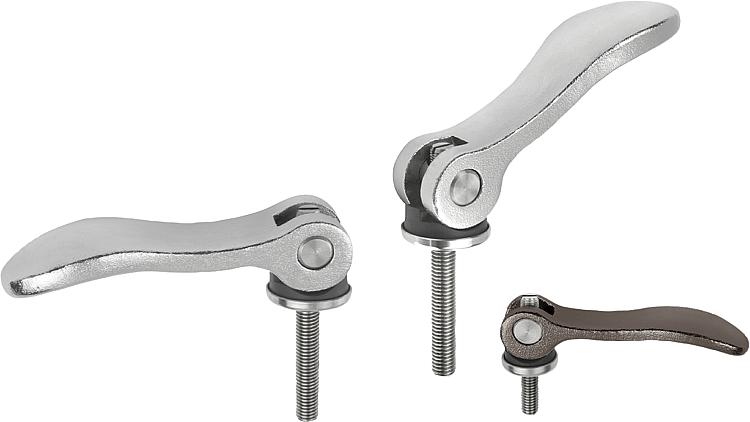

        Cam levers, stainless steel, adjustable with external thread, plastic thrust washer and stainless steel stud, inch

Item description/product images

DescriptionMaterial:

Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel.

Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04233_AG inch Cam levers, adjustable, with external thread, stainless steel, inch

196 kB

Datasheet 04233 inch Cam levers, stainless steel, adjustable with external thread, plastic thrust washer and stainless steel stud, inch

196 kB

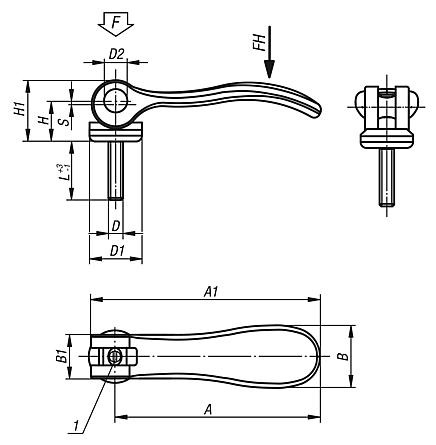

Drawings

Item selection/filter

	electropolished blasted	6-32 8-32 10-24 10-32 1/4-20 5/16-18 3/8-16	12 15,4 18,1 27,1	6 8 9 11	14,4 18 21,5 33,3	11,5 13 15 24	9 11,2 14,5 18	13 17 22 28,5	36,2 52,3 70,4 96	41,7 59,1 79,2 108	10 15 30 20 40 50 25	1 1,2 1,5	1,5 2,5 4 8	90 100 120 350				Reset
Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	CAD	Acc.	Price	Order
04233-95120ADX10	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90			on request
04233-95120ADX15	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90			on request
04233-95120ADX30	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90			on request
04233-95120AEX10	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90			on request
04233-95120AEX15	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90			on request
04233-95120AEX30	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90			on request
04233-05120AEX15	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100			on request
04233-05120AEX20	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05120AEX30	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05120A0X20	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05120A0X30	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05120A0X40	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100			on request
04233-05120A0X50	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100			on request
04233-05120A1X20	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05120A1X30	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05120A1X40	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100			on request
04233-05120A1X50	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100			on request
04233-15120A1X20	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120			on request
04233-15120A1X30	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120			on request
04233-15120A1X40	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120			on request
04233-15120A1X50	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120			on request
04233-15120A2X20	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120			on request
04233-15120A2X30	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120			on request
04233-15120A2X40	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120			on request
04233-15120A2X50	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120			on request
04233-25120A3X25	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350			on request
04233-25120A3X30	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350			on request
04233-25120A3X40	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350			on request
04233-25120A3X50	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350			on request
04233-25120A4X25	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350			on request
04233-25120A4X30	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350			on request
04233-25120A4X40	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350			on request
04233-25120A4X50	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350			on request
04233-95123ADX10	blasted	6-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90			on request
04233-95123ADX15	blasted	6-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90			on request
04233-95123ADX30	blasted	6-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90			on request
04233-95123AEX10	blasted	8-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90			on request
04233-95123AEX15	blasted	8-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90			on request
04233-95123AEX30	blasted	8-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90			on request
04233-05123AEX15	blasted	8-32	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100			on request
04233-05123AEX20	blasted	8-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05123AEX30	blasted	8-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05123A0X20	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05123A0X30	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05123A0X40	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100			on request
04233-05123A0X50	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100			on request
04233-05123A1X20	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100			on request
04233-05123A1X30	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100			on request
04233-05123A1X40	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100			on request
04233-05123A1X50	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100			on request
04233-15123A1X20	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120			on request
04233-15123A1X30	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120			on request
04233-15123A1X40	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120			on request
04233-15123A1X50	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120			on request
04233-15123A2X20	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120			on request
04233-15123A2X30	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120			on request
04233-15123A2X40	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120			on request
04233-15123A2X50	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120			on request
04233-25123A3X25	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350			on request
04233-25123A3X30	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350			on request
04233-25123A3X40	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350			on request
04233-25123A3X50	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350			on request
04233-25123A4X25	blasted	3/8-16	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350			on request
04233-25123A4X30	blasted	3/8-16	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350			on request
04233-25123A4X40	blasted	3/8-16	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350			on request
04233-25123A4X50	blasted	3/8-16	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350			on request
