Handwheels 2-spoke plastic, with folding grip, inch

go back

Products
- Product overview
  - norelem inch
    - Operating parts - inch
      - Handwheels, crank handles and screw-in grips - inch
        Handwheels 2-spoke plastic, with folding grip, inch

Item description/product images

DescriptionMaterial:Handwheel, reinforced and stabilised polyamide.
Centre caps, polyamide.
Centre bush and tapped insert for cylinder grip, steel.Version:Handwheel, oil and grease resistant, black (RAL 9011), satin finish.
Centre caps, grey (RAL 7035).
Centre bush and tapeed insert for folding grip, black oxidised.Note:The H7 tolerance for the bore D2 in the drawing only applies to metric handwheels. For inch handwheels the tolerance is H10.On request:Other cap colours.
Special versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06255 inch Handwheels 2-spoke plastic, with folding grip, inch

195 kB

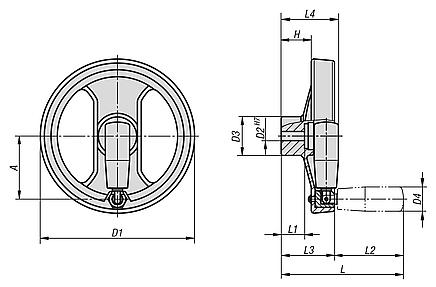

Drawings

Item selection/filter

Order No.	Version 1	D1	D2	D3	D4	A	H	L	L1	L2	L3	L4	Price
06255-6130XCN	reamed hole	129	0,312	32	20	51	29	111	20	59	52	53	on request
06255-6130XCO	reamed hole	129	0,375	32	20	51	29	111	20	59	52	53	on request
06255-6160XCO	reamed hole	159	0,375	40	25	65	31	126	24	71	55	59	on request
06255-6160XCP	reamed hole	159	0,5	40	25	65	31	126	24	71	55	59	on request
06255-6200XCP	reamed hole	200	0,5	54,5	27	80	33	160	28	91	69	69	on request
