        Handwheels DIN 950, aluminium, inch

Item description/product images

DescriptionMaterial:Handwheel aluminium.
Fixed grip aluminium, centre pin black oxidised steel.
Revolving grip aluminium, centre pin trivalent blue passivated steel.Version:Wheel rim turned and polished.
Note:For the inch series, dimension D2 is in inches, all other dimensions are in mm.On request:Hubs with square socket or powder-coated handwheels.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06273 inch Handwheels DIN 950, aluminium, inch

207 kB

Handwheels DIN 950, aluminium, without grip, inch

More information

Drawings

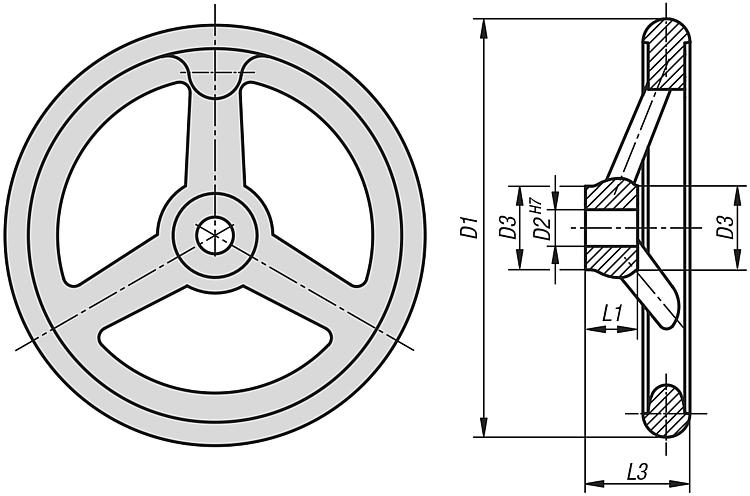

Handwheels DIN 950, aluminium, without grip, inch

Item selection/filter

Order No.	D1	D2	D3	L1	L3	No. of spokes	Price
06273-0080XCN	80	0,312	24	16	29	3	on request
06273-0080XCO	80	0,375	24	16	29	3	on request
06273-0100XCO	100	0,375	26	17	33	3	on request
06273-0100XCP	100	.500	26	17	33	3	on request
06273-0125XCO	125	0,375	28	18	36	3	on request
06273-0125XCP	125	0,5	28	18	36	3	on request
06273-0140XCP	140	0,5	30	19	39	3	on request
06273-0140XCQ	140	0,625	30	19	39	3	on request
06273-0160XCP	160	0,5	32	20	40	3	on request
06273-0160XCQ	160	0,625	32	20	40	3	on request
06273-0180XCP	180	0,5	37	22	43	3	on request
06273-0180XCQ	180	0,625	37	22	43	3	on request
06273-0200XCQ	200	0,625	38	24	45	3	on request
06273-0200XCR	200	0,75	38	24	45	3	on request
06273-0250XCR	250	0,75	45	28	50	5	on request
06273-0250XCV	250	0,875	45	28	50	5	on request
06273-0315XCV	315	0,875	54	33	56	5	on request
06273-0315XCS	315	1	54	33	56	5	on request
06273-0400XCS	400	1	65	38	63	5	on request
06273-0500XCS	500	1	78	45	72	5	on request

Handwheels DIN 950, aluminium, with fixed grip, inch

More information

Drawings

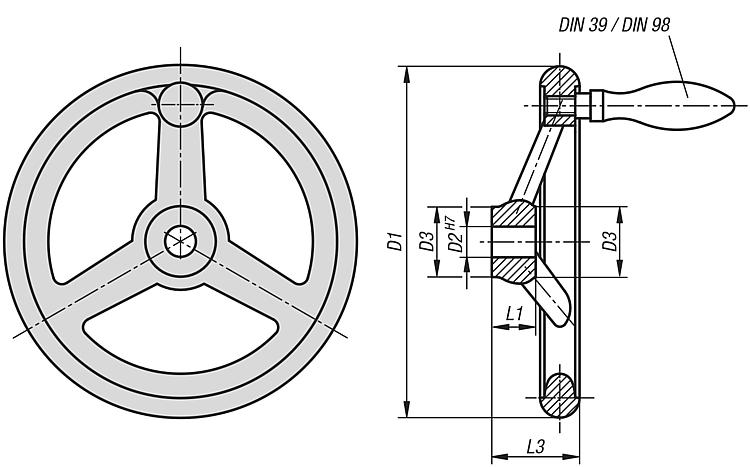

Handwheels DIN 950, aluminium, with fixed grip, inch

Item selection/filter

Order No.	D1	D2	D3	L1	L3	No. of spokes	fixed grip DIN 39 Form E	Price
06273-2080XCN	80	0,312	24	16	29	3	ø16 x M6 x 50	on request
06273-2080XCO	80	0,375	24	16	29	3	ø16 x M6 x 50	on request
06273-2100XCO	100	0,375	26	17	33	3	ø16 x M6 x 50	on request
06273-2100XCP	100	0,5	26	17	33	3	ø16 x M6 x 50	on request
06273-2125XCO	125	0,375	28	18	36	3	ø20 x M8 x 64	on request
06273-2125XCP	125	0,5	28	18	36	3	ø20 x M8 x 64	on request
06273-2140XCP	140	0,5	30	19	39	3	ø20 x M8 x 64	on request
06273-2140XCQ	140	0,625	30	19	39	3	ø20 x M8 x 64	on request
06273-2160XCP	160	0,5	32	20	40	3	ø25 x M10 x 80	on request
06273-2160XCQ	160	0,625	32	20	40	3	ø25 x M10 x 80	on request
06273-2180XCP	180	0,5	37	22	43	3	ø25 x M10 x 80	on request
06273-2180XCQ	180	0,625	37	22	43	3	ø25 x M10 x 80	on request
06273-2200XCQ	200	0,625	38	24	45	3	ø25 x M10 x 80	on request
06273-2200XCR	200	0,75	38	24	45	3	ø25 x M10 x 80	on request
06273-2250XCR	250	0,75	45	28	50	5	ø32 x M12 x 100	on request
06273-2250XCV	250	0,875	45	28	50	5	ø32 x M12 x 100	on request
06273-2315XCV	315	0,875	54	33	56	5	ø32 x M12 x 100	on request
06273-2315XCS	315	1	53	33	56	5	ø32 x M12 x 100	on request
06273-2400XCS	400	1	65	38	63	5	ø36 x M16 x 112	on request
06273-2500XCS	500	1	78	45	72	5	ø36 x M16 x 112	on request

Handwheels DIN 950, aluminium, with revolving grip, inch

More information

Drawings

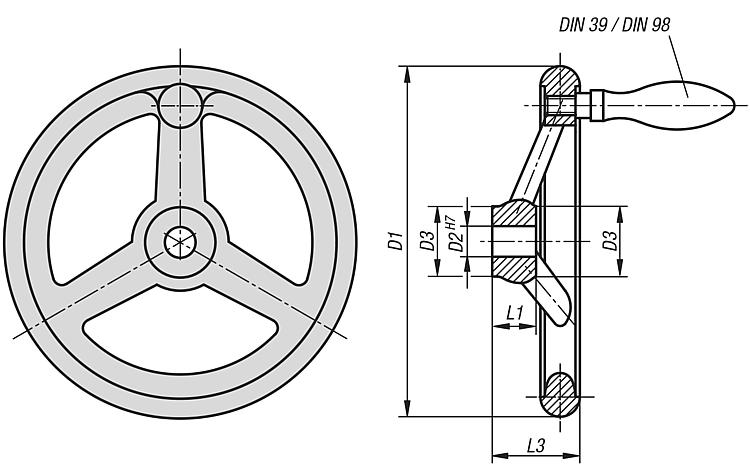

Handwheels DIN 950, aluminium, with revolving grip, inch

Item selection/filter

Order No.	D1	D2	D3	L1	L3	No. of spokes	revolving grip DIN 98 Form E	Price
06273-4080XCN	80	0,312	24	16	29	3	ø16 x M6 x 54.5	on request
06273-4080XCO	80	0,375	24	16	29	3	ø16 x M6 x 54.5	on request
06273-4100XCO	100	0,375	26	17	33	3	ø16 x M6 x 54.5	on request
06273-4100XCP	100	0,5	26	17	33	3	ø16 x M6 x 54.5	on request
06273-4125XCO	125	0,375	28	18	36	3	ø20 x M8 x 67	on request
06273-4125XCP	125	0,5	28	18	36	3	ø20 x M8 x 67	on request
06273-4140XCP	140	0,5	30	19	39	3	ø20 x M8 x 67	on request
06273-4140XCQ	140	0,625	30	19	39	3	ø20 x M8 x 67	on request
06273-4160XCP	160	0,5	32	20	40	3	ø25 x M10 x 83	on request
06273-4160XCQ	160	0,625	32	20	40	3	ø25 x M10 x 83	on request
06273-4180XCP	180	0,5	37	22	43	3	ø25 x M10 x 83	on request
06273-4180XCQ	180	0,625	37	22	43	3	ø25 x M10 x 83	on request
06273-4200XCQ	200	0,625	38	24	45	3	ø25 x M10 x 83	on request
06273-4200XCR	200	0,75	38	24	45	3	ø25 x M10 x 83	on request
06273-4250XCR	250	0,75	45	28	50	5	ø32 x M12 x 105,5	on request
06273-4250XCV	250	0,875	45	28	50	5	ø32 x M12 x 105,5	on request
06273-4315XCV	315	0,875	53	33	56	5	ø32 x M12 x 105,5	on request
06273-4315XCS	315	1	53	33	56	5	ø32 x M12 x 105,5	on request
06273-4400XCS	400	1	65	38	63	5	ø36 x M16 x 117	on request
06273-4500XCS	500	1	78	45	72	5	ø36 x M16 x 117	on request
