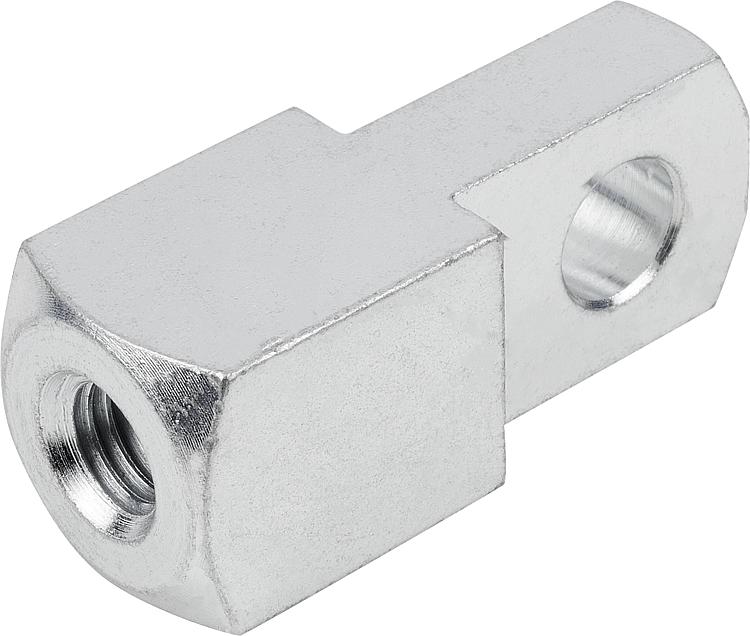

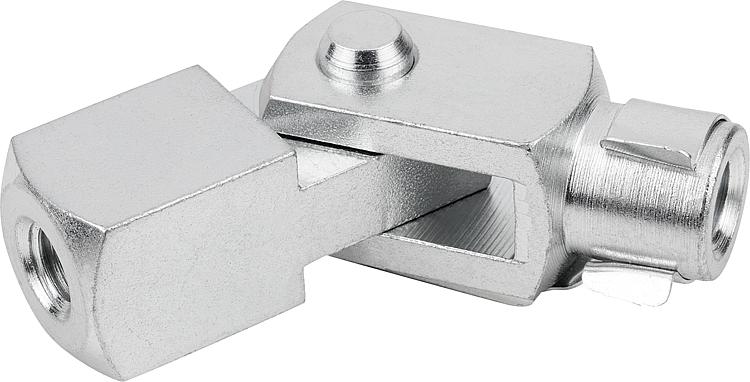

产品说明材料:钢或不锈钢 1.4305。 规格:钢制镀锌。亮色不锈钢。提示:叉头配合件可与叉头和 DIN 71752 叉形接头组合使用。通常用于那些需要连接时可以平衡一个方向上发生的方向偏移的产品。 下载此处为收集信息的 PDF:
查找 CAD 数据?请直接在产品列表中查找。
|

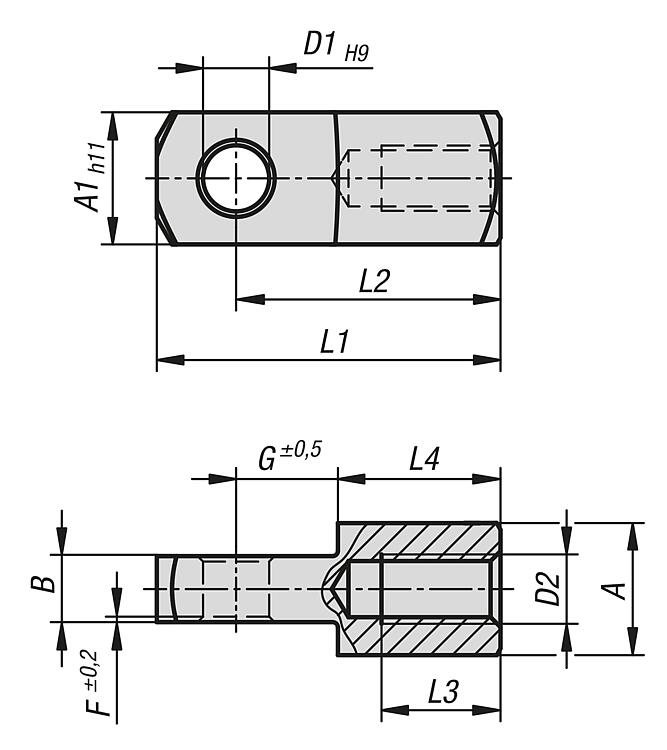

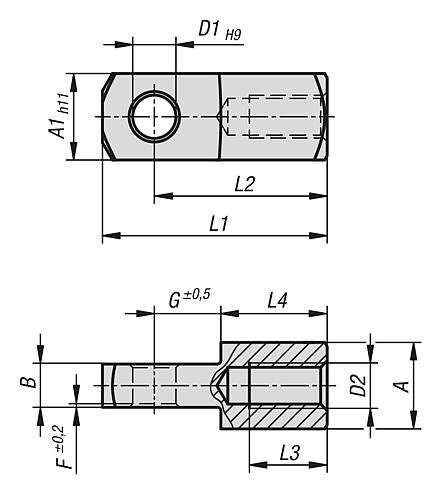

订货号 | 主体 材料 | A | A1 | B | D1 | D2 | F | G | L1 | L2 | L3 | L4 | CAD | 配件 | 价格 | 订购 |
---|
27624-10-0406 | 易切削钢 | 8 | 8 | 4 | 4 | M4 | 0,5 | 6 | 21 | 16 | 6 | 10 |  | | 根据要求 | | 27624-10-0507 | 易切削钢 | 10 | 10 | 5 | 5 | M5 | 0,5 | 7,5 | 26 | 20 | 8 | 12,5 |  | | 根据要求 | | 27624-10-0609 | 易切削钢 | 12 | 12 | 6 | 6 | M6 | 0,5 | 9 | 31 | 24 | 11 | 15 |  | | 根据要求 | | 27624-10-0812 | 易切削钢 | 16 | 16 | 8 | 8 | M8 | 0,5 | 12 | 42 | 32 | 14 | 20 |  | | 根据要求 | | 27624-10-1015 | 易切削钢 | 20 | 20 | 10 | 10 | M10 | 0,5 | 15 | 52 | 40 | 18 | 25 |  | | 根据要求 | | 27624-10-1218 | 易切削钢 | 24 | 24 | 12 | 12 | M12 | 0,5 | 18 | 62 | 48 | 22 | 30 |  | | 根据要求 | | 27624-10-1421 | 易切削钢 | 27 | 27 | 14 | 14 | M14 | 1 | 21 | 72 | 56 | 25 | 35 |  | | 根据要求 | | 27624-10-1624 | 易切削钢 | 32 | 32 | 16 | 16 | M16 | 1 | 24 | 83 | 64 | 30 | 40 |  | | 根据要求 | | 27624-10-2030 | 易切削钢 | 40 | 40 | 20 | 20 | M20 | 1 | 30 | 105 | 80 | 38 | 50 |  | | 根据要求 | | 27624-10-10406 | 不锈钢 A2 | 8 | 8 | 4 | 4 | M4 | 0,5 | 6 | 21 | 16 | 6 | 10 |  | | 根据要求 | | 27624-10-10507 | 不锈钢 A2 | 10 | 10 | 5 | 5 | M5 | 0,5 | 7,5 | 26 | 20 | 8 | 12,5 |  | | 根据要求 | | 27624-10-10609 | 不锈钢 A2 | 12 | 12 | 6 | 6 | M6 | 0,5 | 9 | 31 | 24 | 11 | 15 |  | | 根据要求 | | 27624-10-10812 | 不锈钢 A2 | 16 | 16 | 8 | 8 | M8 | 0,5 | 12 | 42 | 32 | 14 | 20 |  | | 根据要求 | | 27624-10-11015 | 不锈钢 A2 | 20 | 20 | 10 | 10 | M10 | 0,5 | 15 | 52 | 40 | 18 | 25 |  | | 根据要求 | | 27624-10-11218 | 不锈钢 A2 | 24 | 24 | 12 | 12 | M12 | 0,5 | 18 | 62 | 48 | 22 | 30 |  | | 根据要求 | | 27624-10-11421 | 不锈钢 A2 | 27 | 27 | 14 | 14 | M14 | 1 | 21 | 72 | 56 | 25 | 35 |  | | 根据要求 | | 27624-10-11624 | 不锈钢 A2 | 32 | 32 | 16 | 16 | M16 | 1 | 24 | 83 | 64 | 30 | 40 |  | | 根据要求 | | 27624-10-12030 | 不锈钢 A2 | 40 | 40 | 20 | 20 | M20 | 1 | 30 | 105 | 80 | 38 | 50 |  | | 根据要求 | |
|
|
