41102-10Attachment step jaws for centric vice, jaw width 80–125 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Hardened.Note:Attachment step jaws serve as a base for screwing on jaw plates. They are screwed directly onto the centric vice. They allow various jaw plates to be exchanged quickly.
Suitable for 41102Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

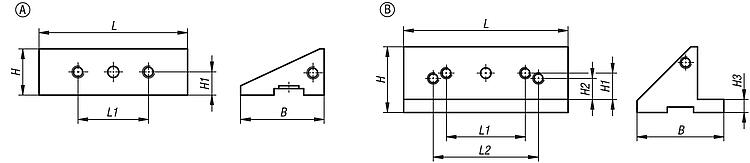

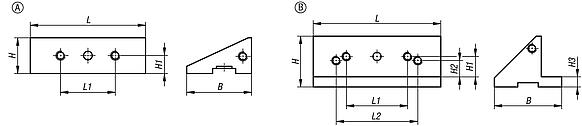

Drawings (total overview) |

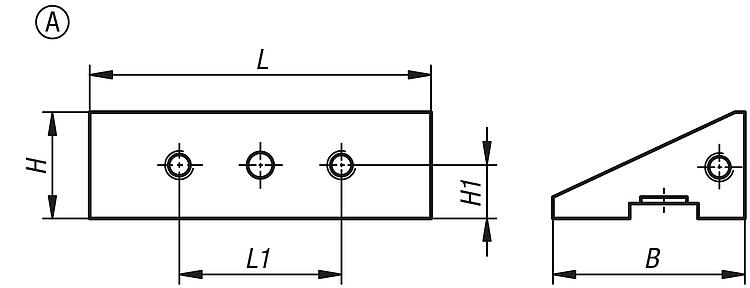

Attachment step jaws for centric vice, jaw width 80–125 mm, Form A |
More information |
| | | | | | | | | | | Reset |
|---|
| Order No. | Form | B | H
| H1 | L | L1 | CAD | Acc. | Price | Order |
|---|
| 41102-10-08025 | A | 45 | 25 | 12,5 | 80 | 38 |  | | on request | |
|

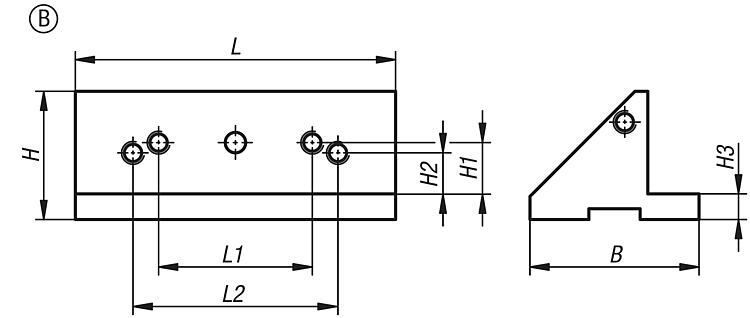

Attachment step jaws for centric vice, jaw width 80–125 mm, Form B |
More information |
| | | | | | | | | | | | | | Reset |
|---|
| Order No. | Form | B | H
| H1 | H2 | H3 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| 41102-10-12550 | B | 66 | 50 | 20 | 16 | 10 | 125 | 60 | 80 | | | on request | |
|
