Insertsfor stepped jaws
 41125

Inserts for stepped jaws

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Steel.Version:Hardened and ground.Note:Inserts Form A with smooth face Form B serrated face for maximum holding force.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 41125 Insertsfor stepped jaws 96,4 kB

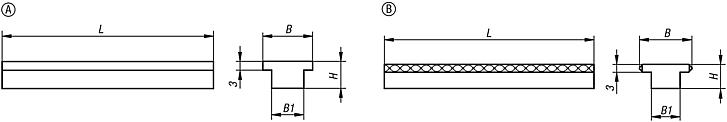

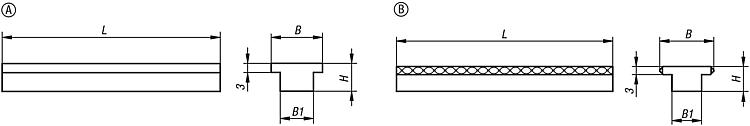

Drawings (total overview)

Insertsfor stepped jaws

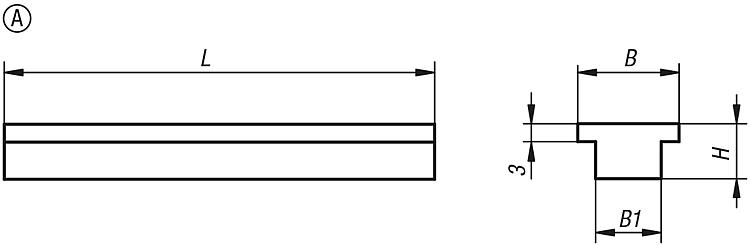

Inserts for stepped jaws, Form A

 More information

Drawings

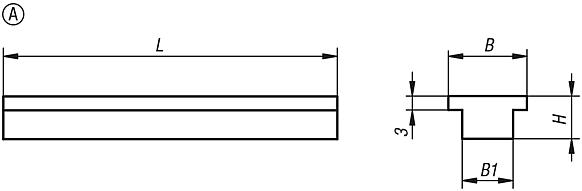

Inserts for stepped jaws, Form A

Item selection/filter
Order No.

FormBB1HLCADAcc.PriceOrder
41125-065117A17119,265 on request
41125-080117A17119,280 on request
41125-125117A17119,2125 on request

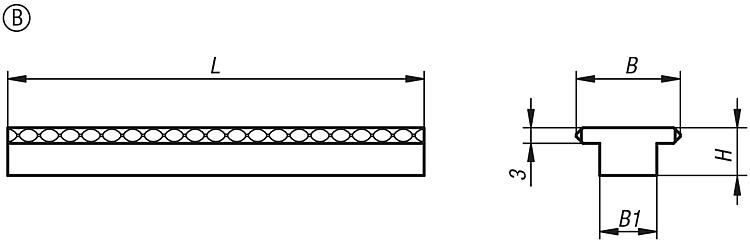

Inserts for stepped jaws, Form B

 More information

Drawings
Inserts for stepped jaws, Form B

Item selection/filter
Order No.

FormBB1HLCADAcc.PriceOrder
41125-065217B17119,265 on request
41125-080217B17119,280 on request
41125-125217B17119,2125 on request
