41101Centric vices jaw width 65 mm |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body and jaw holder mild steel.
Spindle high-strength special steel.Version:Body and jaw holder hardened and ground.Note for ordering:Supplied with hexagon crank handle.
Order jaw plates separately.Note:Mechanically operated centric vice.
Suitable for automation: prepared with gripper slot for handling systems.
Flexible mounting: suitable for zero-point systems, mounting on machine tables or on custom systems via a baseplate.
Centring precision: +/- 0.02 mm.

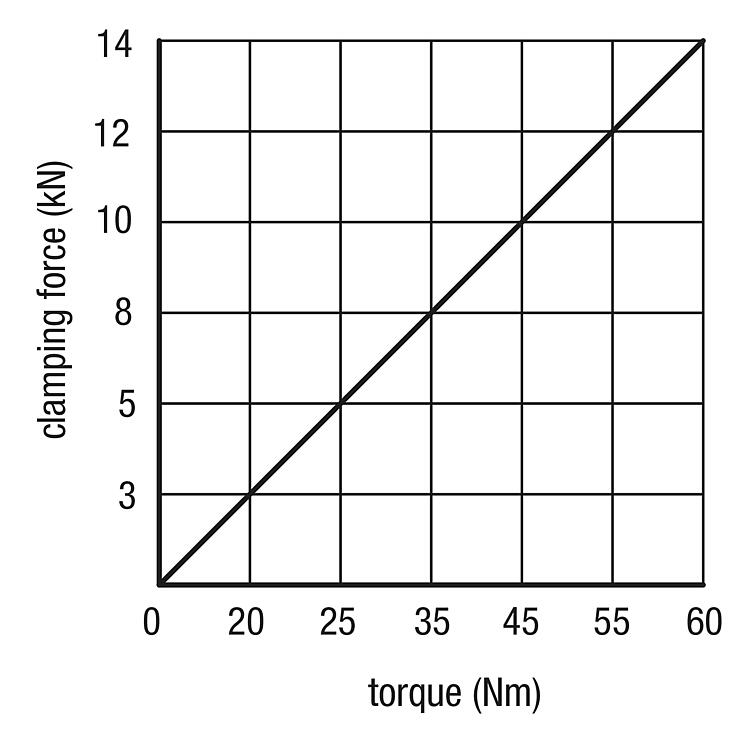

The use of a torque wrench is recommended to achieve a controlled clamping force. Features:- Clamping slide and spindle nut in one piece
- Slots and fastening threads for mounting attachment jaws
- Reversible jaws (accessories) with lateral thread for workpiece stop enables a wider clamping range
- Good swarf and coolant removalSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Dimensions | weight
kg
| CAD | Acc. | Price | Order |
|---|
| 41101-065100 | see drawing | 3.33 |  | | on request | |
