        Connectors 8 mm bush with latch lock, unshielded

Item description/product images

DescriptionMaterial:Housing: PUR.
Cable: PUR.
Insulating braid: PP.
Contacts: CuZn (brass) / CuSn (bronze).
Contact surface: Au (gold).Version:Bush (female).
Housing colour: black.
Cable colour: black.Note:Connector with latch lock (snap-in).
Connector moulded to cable.
The connectors are designed for use in plant, control and electrical appliance construction.Technical data:Mechanical service life: > 50 connection cycles.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80130 Connectors 8 mm bush with latch lock, unshielded

222 kB

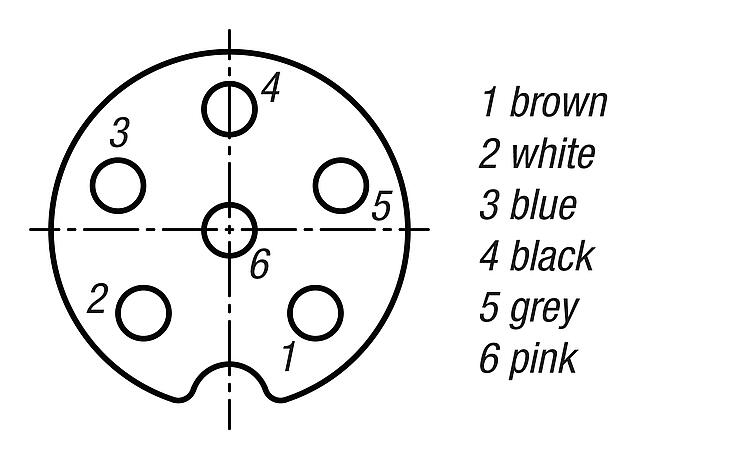

Drawings

Item selection/filter

Order No.	D1	P	No. of conductors x conductor cross-section	Safety rating	Operating voltage V	Rated surge voltage V	Rated current (40 °C) A	CAD	Acc.	Price	Order
80130-0806X2000	4,5	2000	6 X 0,25 mm²	IP65	30	800	1,5			on request
80130-0806X5000	4,5	5000	6 X 0,25 mm²	IP65	30	800	1,5			on request

Order No.	Conductive resistance (20 °C) Ω/Km	Contamination level	Test voltage V	Nominal voltage V	Cable bend radius fixed	Cable bend radius moving	CAD	Acc.	Price	Order
80130-0806X2000	79	3	2500 AC	300 AC	≥ 10 x D1	≥ 5 x D1			on request
80130-0806X5000	79	3	2500 AC	300 AC	≥ 10 x D1	≥ 5 x D1			on request

Order No.	Number of bend cycles max.	Temperature range cable moving	Temperature range cable fixed	EMC capability	Halogen-free	CAD	Acc.	Price	Order
80130-0806X2000	2000000 (25 °C)	-25 °C - +90 °C	-50 °C - +90 °C	-	yes			on request
80130-0806X5000	2000000 (25 °C)	-25 °C - +90 °C	-50 °C - +90 °C	-	yes			on request
