80150Connectors M8x1 bush with screw lock, unshielded |
go back |
|
|
DescriptionMaterial:Housing: plastic.
Cable: PUR (4 pole PVC).
Insulation braid: PP (4 pole PVC).
Contact: copper alloy.
Contact surface: Au (gold).
Lock: nickel plated die-cast zinc.Version:Bush (female).
Housing colour: black.
Cable colour: black.Note:Connector with screw lock.
Connector moulded to cable.

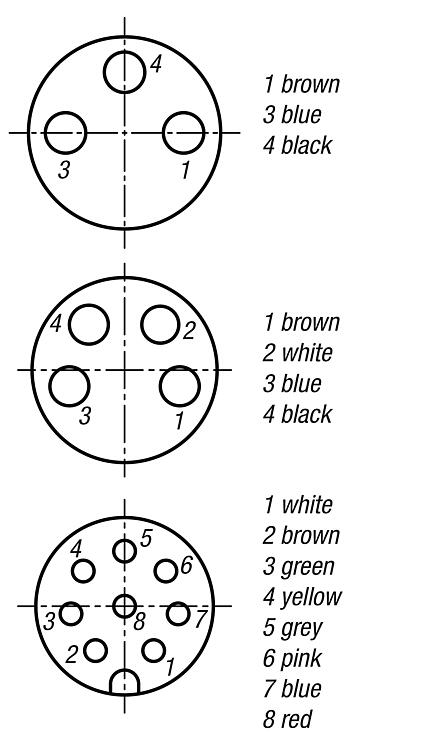

Wire ID acc. to DIN 47100 colour code.
Coding A. Recommended tightening torque for the lock 0.4 Nm.
The connectors are designed for use in plant, control and electrical appliance construction.Technical data:No. of connection cycles: ≥ 100. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

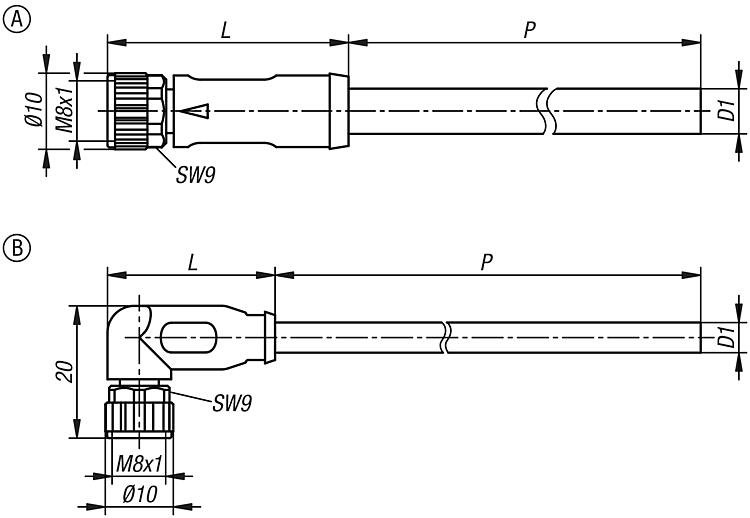

Drawings (total overview) |

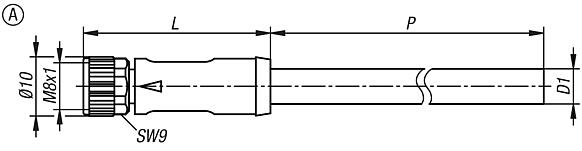

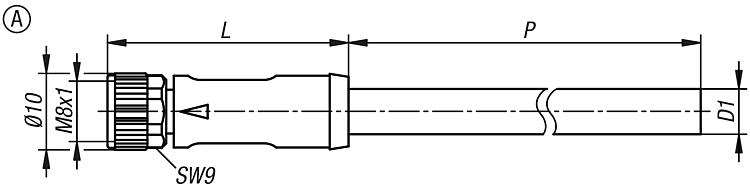

Connectors M8x1, bush with screw lock, unshielded, Form A, straight bush |
More information |
Order No.
| Version 2 | Form | Form definition | P | D1
| L | No. of conductors
x conductor
cross-section | Safety rating | Operating voltage
V | Rated
surge voltage
V | CAD | Acc. | Price | Order |
|---|
| 80150-010X2000 | 3-pin | A | straight bush | 2000 | 4,1 | 32 | 3 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 |  | | on request | | | 80150-010X5000 | 3-pin | A | straight bush | 5000 | 4,1 | 32 | 3 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-011X3000 | 4-pole | A | straight bush | 3000 | 4,8 | 32 | 4 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-011X5000 | 4-pole | A | straight bush | 5000 | 4,8 | 32 | 4 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-012X3000 | 8-pin | A | straight bush | 3000 | 5,5 | 34 | 8 x 0,14 mm² | IP65/IP67 | 30 AC / 30 DC | 800 | | | on request | | | 80150-012X5000 | 8-pin | A | straight bush | 5000 | 5,5 | 34 | 8 x 0,14 mm² | IP65/IP67 | 30 AC / 30 DC | 800 | | | on request | |
Order No.
| Rated current
(40 °C)
A | Conductive resistance
(20 °C)
Ω/Km | Contamination level | Nominal voltage
V | Test voltage
V | Cable
bend radius
moving | CAD | Acc. | Price | Order |
|---|
| 80150-010X2000 | 4 | 79 | 3 | 300 AC | 2500 AC | ≥ 10 x D1 | | | on request | | | 80150-010X5000 | 4 | 79 | 3 | 300 AC | 2500 AC | ≥ 10 x D1 | | | on request | | | 80150-011X3000 | 4 | 79 | 3 | 300 AC | 2000 AC | ≥ 10 x D1 | | | on request | | | 80150-011X5000 | 4 | 79 | 3 | 300 AC | 2000 AC | ≥ 10 x D1 | | | on request | | | 80150-012X3000 | 1,5 | 78 | 3 | 300 AC | 3000 AC | ≥ 10 x D1 | | | on request | | | 80150-012X5000 | 1,5 | 78 | 3 | 300 AC | 3000 AC | ≥ 10 x D1 | | | on request | |
Order No.
| Cable
bend radius
fixed | Number of
bend cycles
max. | Temperature range
cable
moving | Temperature range
cable
fixed | EMC capability | Halogen-free | CAD | Acc. | Price | Order |
|---|
| 80150-010X2000 | ≥ 5 x D1 | 10000000 (25 °C) | -25 °C - +80 °C | -40 °C - +80 °C | - | yes | | | on request | | | 80150-010X5000 | ≥ 5 x D1 | 10000000 (25 °C) | -25 °C - +80 °C | -40 °C - +80 °C | - | yes | | | on request | | | 80150-011X3000 | ≥ 5 x D1 | 2000000 (25 °C) | -5 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-011X5000 | ≥ 5 x D1 | 2000000 (25 °C) | -5 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-012X3000 | ≥ 6 x D1 | 2000000 (25 °C) | -15 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-012X5000 | ≥ 6 x D1 | 2000000 (25 °C) | -15 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | |
|

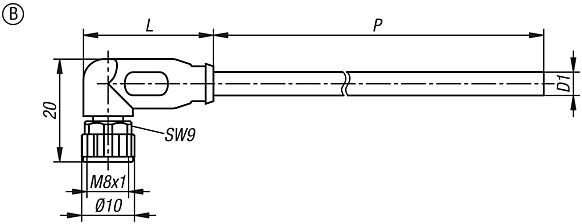

Connectors M8x1, bush with screw lock, unshielded, Form B, angled bush |
More information |
| Order No. | Version 2 | Form | Form definition | P | D1
| L | No. of conductors
x conductor
cross-section | Safety rating | Operating voltage
V | Rated
surge voltage
V | CAD | Acc. | Price | Order |
|---|
| 80150-030X2000 | 3-pin | B | angled bush | 2000 | 4,1 | 25 | 3 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-030X5000 | 3-pin | B | angled bush | 5000 | 4,1 | 25 | 3 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-031X3000 | 4-pole | B | angled bush | 3000 | 4,8 | 25 | 4 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-031X5000 | 4-pole | B | angled bush | 5000 | 4,8 | 25 | 4 x 0,25 mm² | IP65/IP67 | 50 AC / 60 DC | 1500 | | | on request | | | 80150-032X3000 | 8-pin | B | angled bush | 3000 | 5,5 | 24 | 8 x 0,14 mm² | IP65/IP67 | 30 AC / 30 DC | 800 | | | on request | | | 80150-032X5000 | 8-pin | B | angled bush | 5000 | 5,5 | 24 | 8 x 0,14 mm² | IP65/IP67 | 30 AC / 30 DC | 800 | | | on request | |
Order No.
| Rated current
(40 °C)
A | Conductive resistance
(20 °C)
Ω/Km | Contamination level | Nominal voltage
V | Test voltage
V | Cable
bend radius
moving | CAD | Acc. | Price | Order |
|---|
| 80150-030X2000 | 4 | 79 | 3 | 300 AC | 2500 AC | ≥ 10 x D1 | | | on request | | | 80150-030X5000 | 4 | 79 | 3 | 300 AC | 2500 AC | ≥ 10 x D1 | | | on request | | | 80150-031X3000 | 4 | 79 | 3 | 300 AC | 2000 AC | ≥ 10 x D1 | | | on request | | | 80150-031X5000 | 4 | 79 | 3 | 300 AC | 2000 AC | ≥ 10 x D1 | | | on request | | | 80150-032X3000 | 1,5 | 78 | 3 | 300 AC | 3000 AC | ≥ 10 x D1 | | | on request | | | 80150-032X5000 | 1,5 | 78 | 3 | 300 AC | 3000 AC | ≥ 10 x D1 | | | on request | |
Order No.
| Cable
bend radius
fixed | Number of
bend cycles
max. | Temperature range
cable
moving | Temperature range
cable
fixed | EMC capability | Halogen-free | CAD | Acc. | Price | Order |
|---|
| 80150-030X2000 | ≥ 5 x D1 | 10000000 (25 °C) | -25 °C - +80 °C | -40 °C - +80 °C | - | yes | | | on request | | | 80150-030X5000 | ≥ 5 x D1 | 10000000 (25 °C) | -25 °C - +80 °C | -40 °C - +80 °C | - | yes | | | on request | | | 80150-031X3000 | ≥ 5 x D1 | 2000000 (25 °C) | -5 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-031X5000 | ≥ 5 x D1 | 2000000 (25 °C) | -5 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-032X3000 | ≥ 6 x D1 | 2000000 (25 °C) | -15 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | | | 80150-032X5000 | ≥ 6 x D1 | 2000000 (25 °C) | -15 °C - +80 °C | -30 °C - +80 °C | - | no | | | on request | |
|
