        Connectors bush M12x1 with screw lock

Item description/product images

Show/filter all items

DescriptionMaterial:Housing: plastic.
Cable: PUR
(4 pole length 3 and 5 metres PVC.
8 pole length 10 metres PVC.
12 pole length 10 metres PVC).
Insulation braid: PP
(4 pole length 3 and 5 metres PVC.
8 pole length 10 metres PVC.
12 pole length 10 metres PVC).
Contact: copper alloy.
Contact surface: Au (gold).
Lock: nickel plated die-cast zinc.Version:Bush (female).
Housing colour: black.
Cable colour: black.Note:Connector with screw lock.
Connector moulded to cable.

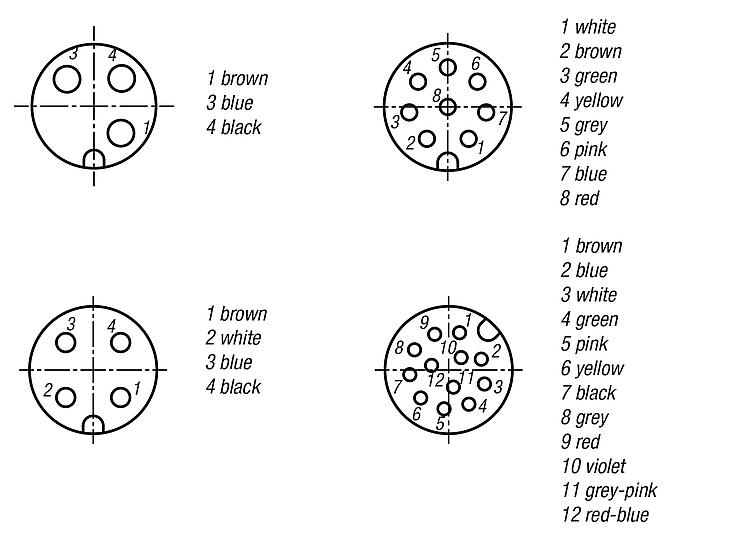

Wire ID acc. to DIN 47100 colour code.
Coding A. Recommended tightening torque for the lock 0.6 Nm.
The connectors are designed for use in plant, control and electrical appliance construction.Technical data:No. of connection cycles: ≥ 100.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80150-10 Connectors bush M12x1 with screw lock

287 kB

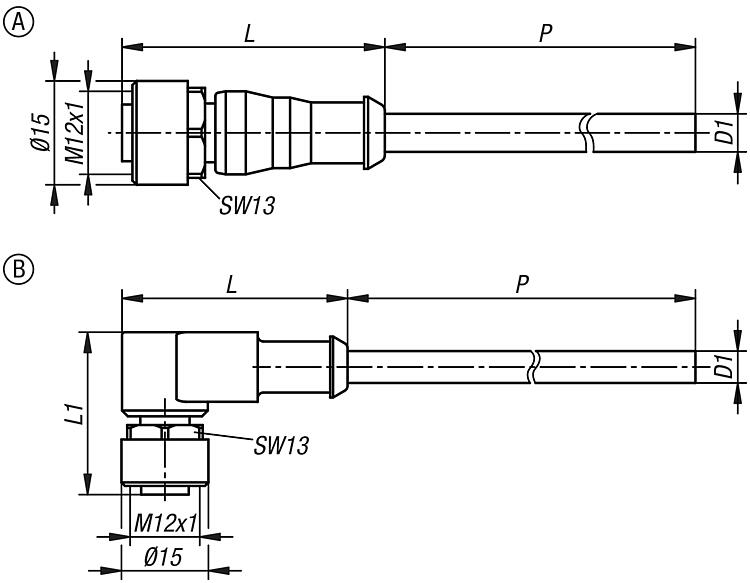

Drawings (total overview)

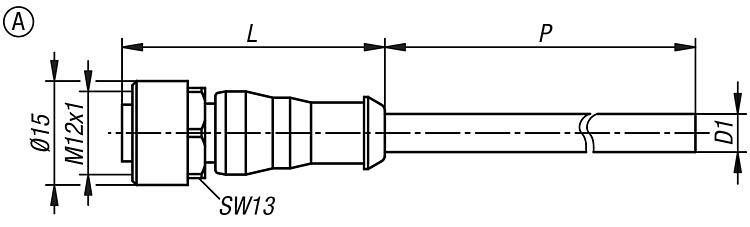

Connectors bush M12x1, with screw lock, Form A, straight bush

More information

Drawings

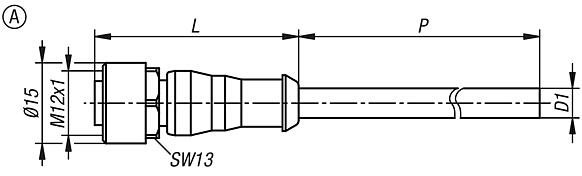

Connectors bush M12x1, with screw lock, Form A, straight bush

Item selection/filter

	3-pin 4-pole 8-pin 12-pin	A	straight bush	2000 5000 3000 2500 10000	4,1 5 5,8 6	38 43,5	3 x 0,34 mm² N=4 X 0,34 mm² 8 x 0,25 mm² 12 x 0,14 mm²	IP65/IP67	250 AC / 250 DC 30 AC / 30 DC				Reset
Order No.	Version 2	Form	Form definition	P	D1	L	No. of conductors x conductor cross-section	Safety rating	Operating voltage V	CAD	Acc.	Price	Order
80150-10-1203X2000	3-pin	A	straight bush	2000	4,1	38	3 x 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-1203X5000	3-pin	A	straight bush	5000	4,1	38	3 x 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-1204X3000	4-pole	A	straight bush	3000	5	38	N=4 X 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-1204X5000	4-pole	A	straight bush	5000	5	38	N=4 X 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-1208X2500	8-pin	A	straight bush	2500	5,8	43,5	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-1208X5000	8-pin	A	straight bush	5000	5,8	43,5	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-1208X10000	8-pin	A	straight bush	10000	6	43,5	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-1212X3000	12-pin	A	straight bush	3000	6	43,5	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-1212X5000	12-pin	A	straight bush	5000	6	43,5	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-1212X10000	12-pin	A	straight bush	10000	6	43,5	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request

	2500 800	4 2 1,5	57 60 79 138	3	300 AC	2500 AC 2000 AC 1500 AC				Reset
Order No.	Rated surge voltage V	Rated current (40 °C) A	Conductive resistance (20 °C) Ω/Km	Contamination level	Nominal voltage V	Test voltage V	CAD	Acc.	Price	Order
80150-10-1203X2000	2500	4	57	3	300 AC	2500 AC			on request
80150-10-1203X5000	2500	4	57	3	300 AC	2500 AC			on request
80150-10-1204X3000	2500	4	60	3	300 AC	2000 AC			on request
80150-10-1204X5000	2500	4	60	3	300 AC	2000 AC			on request
80150-10-1208X2500	800	2	79	3	300 AC	2500 AC			on request
80150-10-1208X5000	800	2	79	3	300 AC	2500 AC			on request
80150-10-1208X10000	800	2	79	3	300 AC	2000 AC			on request
80150-10-1212X3000	800	1,5	138	3	300 AC	1500 AC			on request
80150-10-1212X5000	800	1,5	138	3	300 AC	1500 AC			on request
80150-10-1212X10000	800	1,5	138	3	300 AC	1500 AC			on request

	≥ 10 x D1	≥ 5 x D1 ≥ 7,5 X D1	10000000 (25 °C) 2000000 (25 °C)	-25 °C - +80 °C -5 °C - +80 °C -25 °C - +85 °C -5 °C - +70 °C	-40 °C - +80 °C -30 °C - +80 °C -40 °C - +85 °C -30 °C - +70 °C	-	yes no				Reset
Order No.	Cable bend radius moving	Cable bend radius fixed	Number of bend cycles max.	Temperature range cable moving	Temperature range cable fixed	EMC capability	Halogen-free	CAD	Acc.	Price	Order
80150-10-1203X2000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-1203X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-1204X3000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-1204X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-1208X2500	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-1208X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-1208X10000	≥ 10 x D1	≥ 5 x D1	2000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-1212X3000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-25 °C - +85 °C	-40 °C - +85 °C	-	yes			on request
80150-10-1212X5000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-25 °C - +85 °C	-40 °C - +85 °C	-	yes			on request
80150-10-1212X10000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-5 °C - +70 °C	-30 °C - +70 °C	-	no			on request

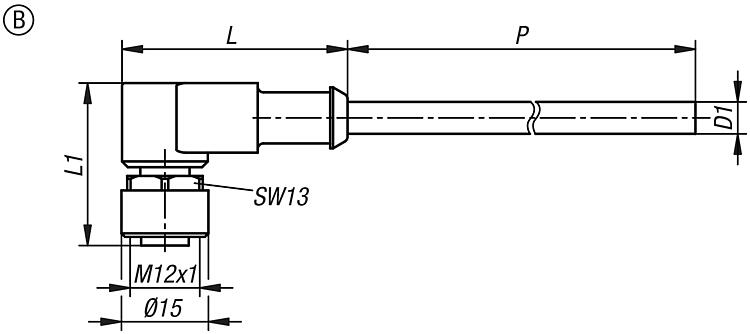

Connectors bush M12x1, with screw lock, Form B, angled bush

More information

Drawings

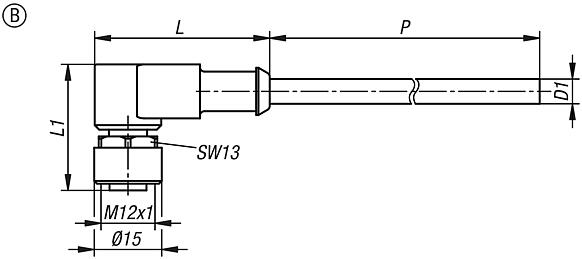

Connectors bush M12x1, with screw lock, Form B, angled bush

Item selection/filter

	3-pin 4-pole 8-pin 12-pin	B	angled bush	2000 5000 3000 10000	4,1 5 5,8 6	39	28 32	3 x 0,34 mm² N=4 X 0,34 mm² 8 x 0,25 mm² 12 x 0,14 mm²	IP65/IP67	250 AC / 250 DC 30 AC / 30 DC				Reset
Order No.	Version 2	Form	Form definition	P	D1	L	L1	No. of conductors x conductor cross-section	Safety rating	Operating voltage V	CAD	Acc.	Price	Order
80150-10-11203X2000	3-pin	B	angled bush	2000	4,1	39	28	3 x 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-11203X5000	3-pin	B	angled bush	5000	4,1	39	28	3 x 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-11204X3000	4-pole	B	angled bush	3000	5	39	28	N=4 X 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-11204X5000	4-pole	B	angled bush	5000	5	39	28	N=4 X 0,34 mm²	IP65/IP67	250 AC / 250 DC			on request
80150-10-11208X3000	8-pin	B	angled bush	3000	5,8	39	32	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-11208X5000	8-pin	B	angled bush	5000	5,8	39	32	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-11208X10000	8-pin	B	angled bush	10000	6	39	32	8 x 0,25 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-11212X3000	12-pin	B	angled bush	3000	6	39	32	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-11212X5000	12-pin	B	angled bush	5000	6	39	32	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request
80150-10-11212X10000	12-pin	B	angled bush	10000	6	39	32	12 x 0,14 mm²	IP65/IP67	30 AC / 30 DC			on request

	2500 800	4 2 1,5	57 60 79 138	3	300 AC	2500 AC 2000 AC 1500 AC				Reset
Order No.	Rated surge voltage V	Rated current (40 °C) A	Conductive resistance (20 °C) Ω/Km	Contamination level	Nominal voltage V	Test voltage V	CAD	Acc.	Price	Order
80150-10-11203X2000	2500	4	57	3	300 AC	2500 AC			on request
80150-10-11203X5000	2500	4	57	3	300 AC	2500 AC			on request
80150-10-11204X3000	2500	4	60	3	300 AC	2000 AC			on request
80150-10-11204X5000	2500	4	60	3	300 AC	2000 AC			on request
80150-10-11208X3000	800	2	79	3	300 AC	2500 AC			on request
80150-10-11208X5000	800	2	79	3	300 AC	2500 AC			on request
80150-10-11208X10000	800	2	79	3	300 AC	2000 AC			on request
80150-10-11212X3000	800	1,5	138	3	300 AC	1500 AC			on request
80150-10-11212X5000	800	1,5	138	3	300 AC	1500 AC			on request
80150-10-11212X10000	800	1,5	138	3	300 AC	1500 AC			on request

	≥ 10 x D1	≥ 5 x D1 ≥ 7,5 X D1	10000000 (25 °C) 2000000 (25 °C)	-25 °C - +80 °C -5 °C - +80 °C -25 °C - +85 °C -55 °C - +70 °C	-40 °C - +80 °C -30 °C - +80 °C -40 °C - +85 °C -30 °C - +70 °C	-	yes no				Reset
Order No.	Cable bend radius moving	Cable bend radius fixed	Number of bend cycles max.	Temperature range cable moving	Temperature range cable fixed	EMC capability	Halogen-free	CAD	Acc.	Price	Order
80150-10-11203X2000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-11203X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-11204X3000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-11204X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-11208X3000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-11208X5000	≥ 10 x D1	≥ 5 x D1	10000000 (25 °C)	-25 °C - +80 °C	-40 °C - +80 °C	-	yes			on request
80150-10-11208X10000	≥ 10 x D1	≥ 5 x D1	2000000 (25 °C)	-5 °C - +80 °C	-30 °C - +80 °C	-	no			on request
80150-10-11212X3000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-25 °C - +85 °C	-40 °C - +85 °C	-	yes			on request
80150-10-11212X5000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-25 °C - +85 °C	-40 °C - +85 °C	-	yes			on request
80150-10-11212X10000	≥ 10 x D1	≥ 7,5 X D1	2000000 (25 °C)	-55 °C - +70 °C	-30 °C - +70 °C	-	no			on request
