        Subplates machined all sides grey cast iron

Item description/product images

Show/filter all items

DescriptionMaterial:GJL 250 annealed.Note:

The plates are also available with slots.

Type A:
ground contact faces (Ra 0.8).

Type B:
ground contact faces (Ra 0.8) and sides (Ra 1.6).

Type C:
milled contact faces and sides (Ra 3.2).

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01150 Subplates machined all sides grey cast iron

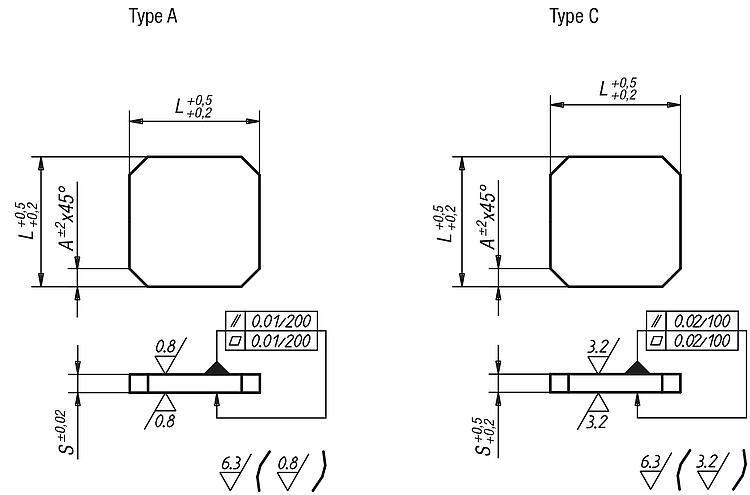

Drawings (total overview)

Subplates machined all sides grey cast iron

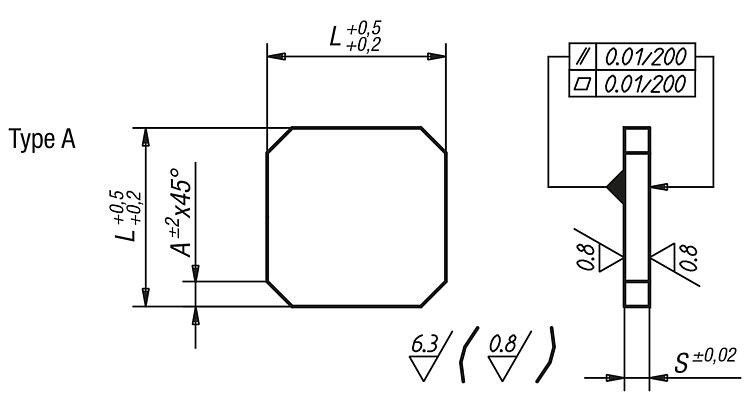

Subplates machined all sides, grey cast iron, type A

More information

Drawings

Subplates machined all sides, grey cast iron, type A

Item selection/filter

Order No.	Type	L	S	A	CAD	Acc.	Price	Order
01150-001	A	200	25	25			on request
01150-002	A	250	35	35			on request
01150-004	A	320	40	40			on request
01150-006	A	400	45	50			on request
01150-008	A	500	50	60			on request
01150-010	A	630	63	70			on request
01150-012	A	800	70	100			on request

Subplates machined all sides, grey cast iron, type B

More information

Drawings

Subplates machined all sides, grey cast iron, type B

Item selection/filter

Order No.	Type	L	S	A	CAD	Acc.	Price	Order
01150-0011	B	200	25	25			on request
01150-0021	B	250	35	35			on request
01150-0041	B	320	40	40			on request
01150-0061	B	400	45	50			on request
01150-0081	B	500	50	60			on request
01150-0101	B	630	63	70			on request
01150-0121	B	800	70	100			on request

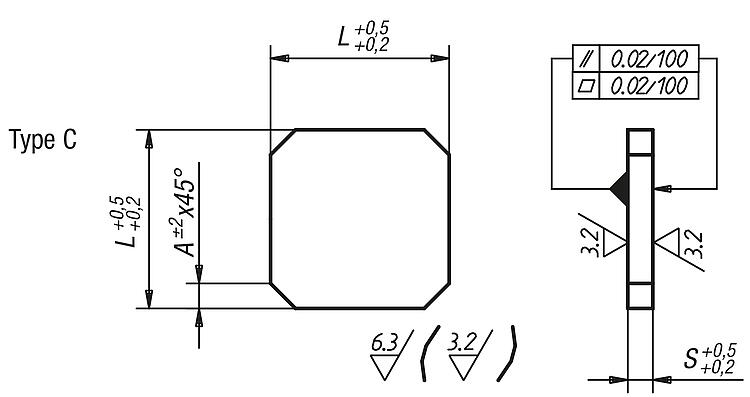

Subplates machined all sides, grey cast iron, type C

More information

Drawings

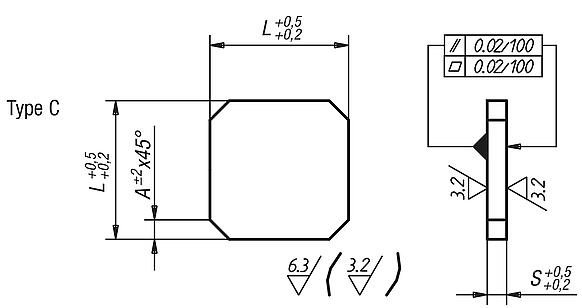

Subplates machined all sides, grey cast iron, type C

Item selection/filter

Order No.	Type	L	S	A	CAD	Acc.	Price	Order
01150-00111	C	200	25	25			on request
01150-00211	C	250	35	35			on request
01150-00411	C	320	40	40			on request
01150-00611	C	400	45	50			on request
01150-00811	C	500	50	60			on request
01150-01011	C	630	63	70			on request
01150-01211	C	800	70	100			on request
