        Indexing plungers steel or stainless steel with plastic eyelet grip

Item description/product images

Show/filter all items

DescriptionProduct description:Indexing plungers are used to prevent changes to the locking position due to lateral forces. Another locking position can be set only after the plunger has been manually released. Material:

Steel version:
Threaded sleeve 1.0715.
Indexing pin 1.4305.

Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Eyelet grip thermoplastic, black grey RAL 7021 or traffic red RAL 3020.

Version:Steel version:
Indexing pin hardened.
Threaded sleeve trivalent blue passivated.
Indexing pin bright.

Stainless steel version:
Indexing pin not hardened.
Steel parts bright.Note:Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

Pay attention to the max. tightening torque when assembling.On request:Other travels possible on request.Drawing reference:

Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03089-05 Indexing plungers steel or stainless steel with plastic eyelet grip

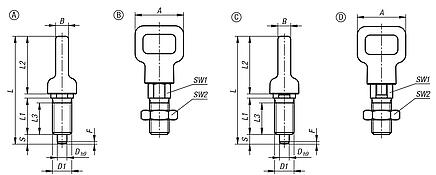

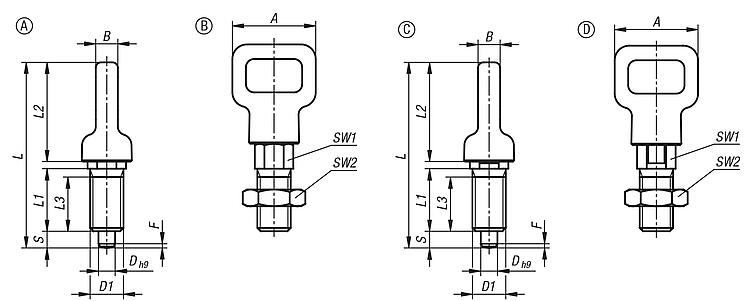

Drawings (total overview)

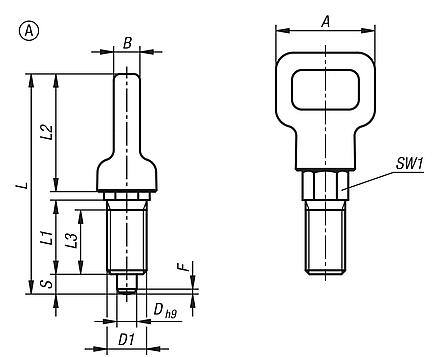

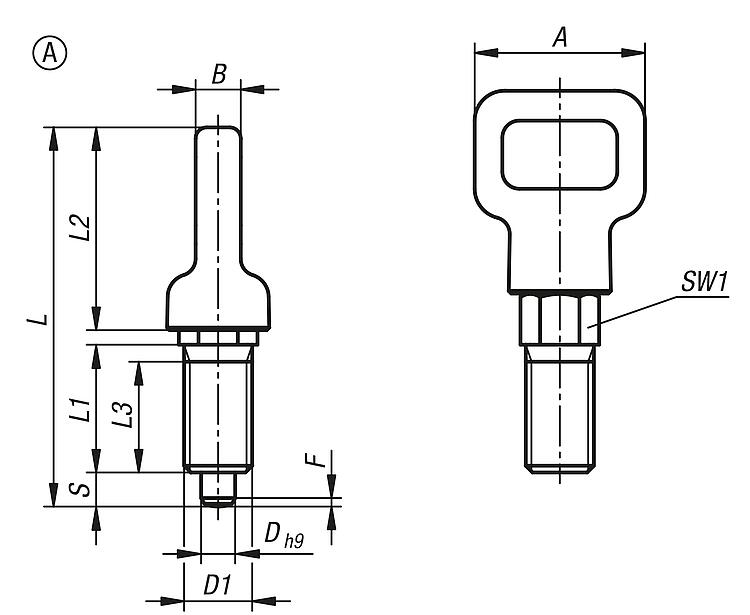

Indexing plungers steel or stainless steel with plastic eyelet grip

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form A

More information

Drawings

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form A

Item selection/filter

Order No.	Form	Main material	Component colour	D	D1	A	B	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-05-0104080	A	steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-0115100	A	steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-0126120	A	steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-0138160	A	steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-0104081	A	steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-0115101	A	steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-0126121	A	steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-0138161	A	steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-010408084	A	steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-011510084	A	steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-012612084	A	steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-013816084	A	steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-010408184	A	steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-011510184	A	steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-012612184	A	steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-013816184	A	steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-1104080	A	stainless steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-1115100	A	stainless steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-1126120	A	stainless steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-1138160	A	stainless steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-1104081	A	stainless steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-1115101	A	stainless steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-1126121	A	stainless steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-1138161	A	stainless steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-110408084	A	stainless steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-111510084	A	stainless steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-112612084	A	stainless steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-113816084	A	stainless steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-110408184	A	stainless steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-111510184	A	stainless steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-112612184	A	stainless steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-113816184	A	stainless steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request

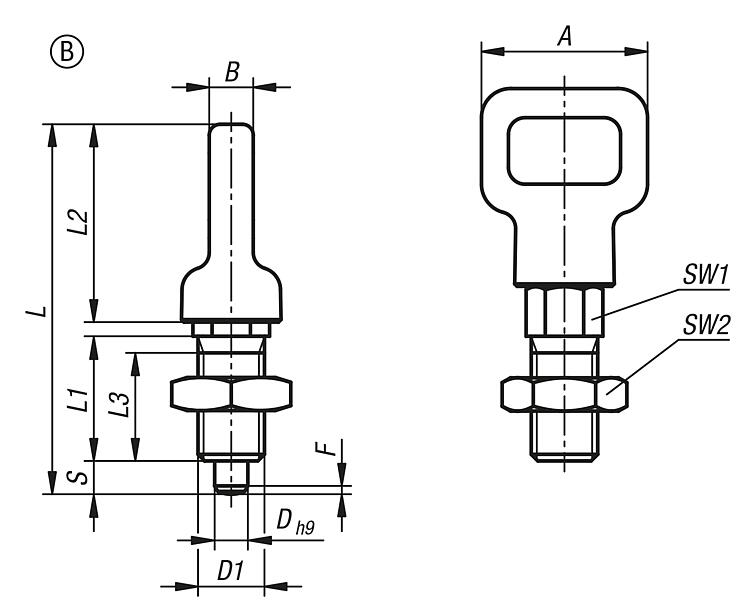

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form B

More information

Drawings

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form B

Item selection/filter

Order No.	Form	Main material	Component colour	D	D1	A	B	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-05-0204080	B	steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-0215100	B	steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-0226120	B	steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-0238160	B	steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-0204081	B	steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-0215101	B	steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-0226121	B	steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-0238161	B	steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-020408084	B	steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-021510084	B	steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-022612084	B	steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-023816084	B	steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-020408184	B	steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-021510184	B	steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-022612184	B	steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-023816184	B	steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-1204080	B	stainless steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-1215100	B	stainless steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-1226120	B	stainless steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-1238160	B	stainless steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-1204081	B	stainless steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-1215101	B	stainless steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-1226121	B	stainless steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-1238161	B	stainless steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-120408084	B	stainless steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-121510084	B	stainless steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-122612084	B	stainless steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-123816084	B	stainless steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-120408184	B	stainless steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-121510184	B	stainless steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-122612184	B	stainless steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-123816184	B	stainless steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request

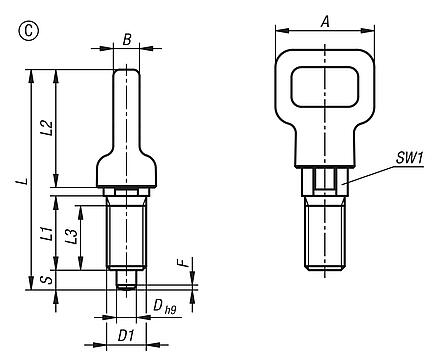

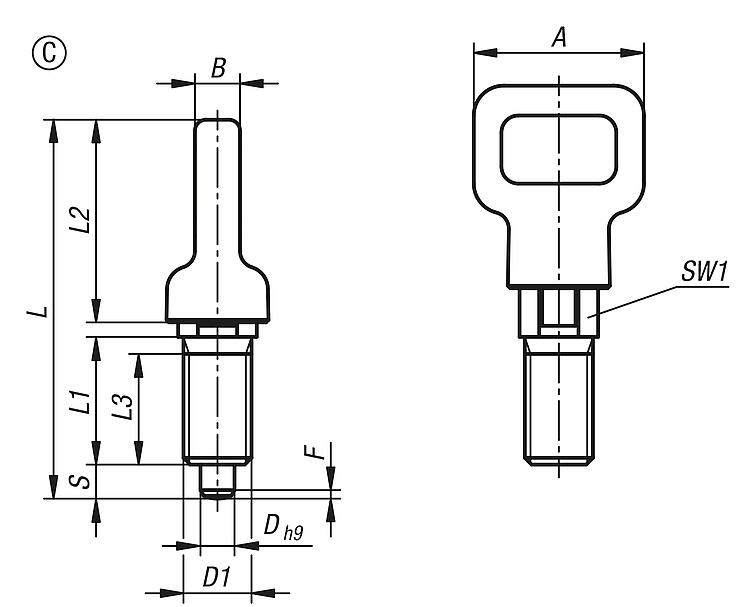

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form C

More information

Drawings

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form C

Item selection/filter

Order No.	Form	Main material	Component colour	D	D1	A	B	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-05-0304080	C	steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-0315100	C	steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-0326120	C	steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-0338160	C	steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-0304081	C	steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-0315101	C	steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-0326121	C	steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-0338161	C	steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-030408084	C	steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-031510084	C	steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-032612084	C	steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-033816084	C	steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-030408184	C	steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-031510184	C	steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-032612184	C	steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-033816184	C	steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-1304080	C	stainless steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-1315100	C	stainless steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-1326120	C	stainless steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-1338160	C	stainless steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-1304081	C	stainless steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-1315101	C	stainless steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-1326121	C	stainless steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-1338161	C	stainless steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-130408084	C	stainless steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-131510084	C	stainless steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-132612084	C	stainless steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-133816084	C	stainless steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request
03089-05-130408184	C	stainless steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	1	6	12	2			on request
03089-05-131510184	C	stainless steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	1,3	6	12	7			on request
03089-05-132612184	C	stainless steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	1,8	8	15	15			on request
03089-05-133816184	C	stainless steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	2,3	8	19	20			on request

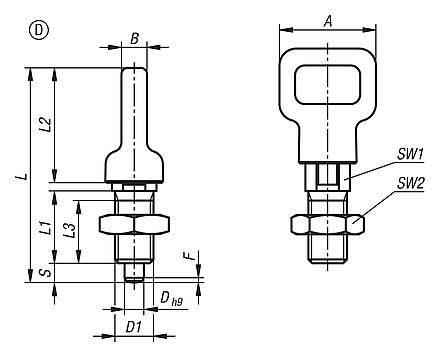

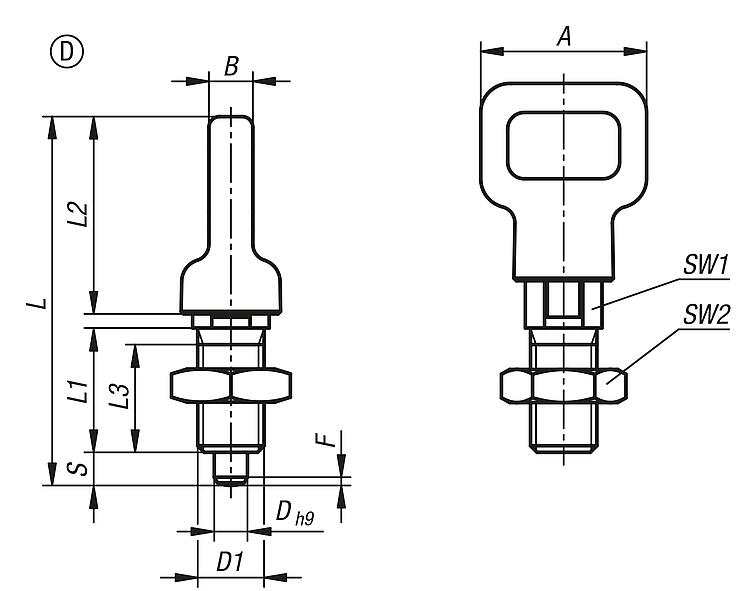

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form D

More information

Drawings

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form D

Item selection/filter

Order No.	Form	Main material	Component colour	D	D1	A	B	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-05-0404080	D	steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-0415100	D	steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-0426120	D	steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-0438160	D	steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-0404081	D	steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-0415101	D	steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-0426121	D	steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-0438161	D	steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-040408084	D	steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-041510084	D	steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-042612084	D	steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-043816084	D	steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-040408184	D	steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-041510184	D	steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-042612184	D	steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-043816184	D	steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-1404080	D	stainless steel	black grey RAL 7021	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-1415100	D	stainless steel	black grey RAL 7021	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-1426120	D	stainless steel	black grey RAL 7021	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-1438160	D	stainless steel	black grey RAL 7021	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-1404081	D	stainless steel	black grey RAL 7021	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-1415101	D	stainless steel	black grey RAL 7021	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-1426121	D	stainless steel	black grey RAL 7021	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-1438161	D	stainless steel	black grey RAL 7021	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-140408084	D	stainless steel	traffic red RAL 3020	4	M8	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-141510084	D	stainless steel	traffic red RAL 3020	5	M10	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-142612084	D	stainless steel	traffic red RAL 3020	6	M12	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-143816084	D	stainless steel	traffic red RAL 3020	8	M16	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request
03089-05-140408184	D	stainless steel	traffic red RAL 3020	4	M8x1	20	5,3	44,5	15	23,8	13	4	8	13	1	6	12	2			on request
03089-05-141510184	D	stainless steel	traffic red RAL 3020	5	M10x1	25	6,7	52,2	17	28,5	15	5	10	17	1,3	6	12	7			on request
03089-05-142612184	D	stainless steel	traffic red RAL 3020	6	M12x1,5	30	8	61,7	20	34	17	6	12	19	1,8	8	15	15			on request
03089-05-143816184	D	stainless steel	traffic red RAL 3020	8	M16x1,5	40	10,7	81	26	45,3	23	8	16	24	2,3	8	19	20			on request

Other items in this category

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-50 | 51-60 | 61-70 | > | >>

Indexing plungers, steel or stainless steel with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip

Indexing plungers, steel or stainless steel with plastic mushroom grip and thread lock

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip and thread lock

Indexing plungers, steel or stainless steel with plastic mushroom grip and extended indexing pin

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip and extended indexing pin

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

03089

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

Indexing plungers, stainless steel with stainless steel mushroom grip

03089

Indexing plungers, stainless steel with stainless steel mushroom grip

Indexing plungers, steel or stainless steel for thin-walled parts, with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel for thin-walled parts, with plastic mushroom grip

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and cylindrical indexing pin

03089

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and cylindrical indexing pin

Bushes cylindrical

03089

Bushes cylindrical

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and tapered indexing pin

03089

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and tapered indexing pin

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-50 | 51-60 | 61-70 | > | >>

Shopping cart

Number of items:

0

Amount:

0.00 €

欢迎扫描二维码
咨询诺瑞朗官方客服微信

China

苏ICP备20011289号-1

苏公网安备32058502011222

Copyright © 2025 norelem. All rights reserved.

Tel. +49 71 45/206-44 to 45 · Fax +49 71 45/206-83
