Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

03089

Indexing plungers ECO, steel or stainless steel, with plastic...

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

Item description/product images

Show/filter all items

DescriptionProduct description:Indexing plungers are used to prevent changes to the locking position due to lateral forces. Another locking position can be set only after the plunger has been manually released. Material:

Steel version:
Threaded sleeve 1.0715.
Indexing pin 1.4305.

Stainless steel version:
Threaded sleeve and indexing pin 1.4305.

Mushroom knob black grey thermoplastic RAL 7021.

Version:Steel version:
Indexing pin hardened.
Threaded sleeve trivalent blue passivated.
Indexing pin bright.

Stainless steel version:
Indexing pin not hardened.
Steel parts bright.Note:Pay attention to the max. tightening torque when assembling.On request:Special versions.Drawing reference:

Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03089 Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

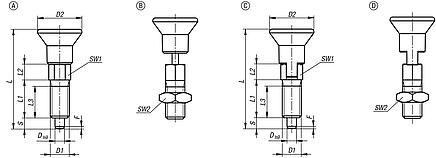

Drawings (total overview)

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

More information

Drawings

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip

Item selection/filter

	A	steel stainless steel	3 4 5 6 8	M6 M8 M10 M12 M6x0,75 M8x1 M10x1 M12x1,5	14 18 25	31,5 36 40 42,5 47,5 51,7 61,7	12 15 17 20 26	5 6 7 8 10	10 13 15 17 23	3,5 4 5 6 8	6 8 10 12	0,8 1 1,3 1,8 2,3	4 6 8	10 12 15 19	2 7 15 20				Reset
Order No.	Form	Main material	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-01903060	A	steel	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-01004060	A	steel	4	M6	14	36	15	6	13	4	6	1	6	12	2			on request
03089-01004080	A	steel	4	M8	14	36	15	6	13	4	8	1	6	12	7			on request
03089-01105080	A	steel	5	M8	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-01105100	A	steel	5	M10	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-01206100	A	steel	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-01206120	A	steel	6	M12	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-01308120	A	steel	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-11903060	A	stainless steel	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-11004060	A	stainless steel	4	M6	14	36	15	6	13	4	6	1	6	12	2			on request
03089-11004080	A	stainless steel	4	M8	14	36	15	6	13	4	8	1	6	12	7			on request
03089-11105080	A	stainless steel	5	M8	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-11105100	A	stainless steel	5	M10	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-11206100	A	stainless steel	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-11206120	A	stainless steel	6	M12	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-11308120	A	stainless steel	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-01903061	A	steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-01004061	A	steel	4	M6x0,75	14	36	15	6	13	4	6	1	6	12	2			on request
03089-01004081	A	steel	4	M8x1	14	36	15	6	13	4	8	1	6	12	7			on request
03089-01105081	A	steel	5	M8x1	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-01105101	A	steel	5	M10x1	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-01206101	A	steel	6	M10x1	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-01206121	A	steel	6	M12x1,5	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-01308121	A	steel	8	M12x1,5	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-11903061	A	stainless steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-11004061	A	stainless steel	4	M6x0,75	14	36	15	6	13	4	6	1	6	12	2			on request
03089-11004081	A	stainless steel	4	M8x1	14	36	15	6	13	4	8	1	6	12	7			on request
03089-11105081	A	stainless steel	5	M8x1	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-11105101	A	stainless steel	5	M10x1	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-11206101	A	stainless steel	6	M10x1	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-11206121	A	stainless steel	6	M12x1,5	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-11308121	A	stainless steel	8	M12x1,5	25	61,7	26	10	23	8	12	2,3	8	19	20			on request

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip and locknut

More information

Drawings

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip and locknut

Item selection/filter

	B	steel stainless steel	3 4 5 6 8	M6 M8 M10 M12 M6x0,75 M8x1 M10x1 M12x1,5	14 18 25	31,5 36 40 42,5 47,5 51,7 61,7	12 15 17 20 26	5 6 7 8 10	10 13 15 17 23	3,5 4 5 6 8	6 8 10 12	10 13 17 19	0,8 1 1,3 1,8 2,3	4 6 8	10 12 15 19	2 7 15 20				Reset
Order No.	Form	Main material	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-02903060	B	steel	3	M6	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-02004060	B	steel	4	M6	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-02004080	B	steel	4	M8	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-02105080	B	steel	5	M8	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-02105100	B	steel	5	M10	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-02206100	B	steel	6	M10	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-02206120	B	steel	6	M12	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-02308120	B	steel	8	M12	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-12903060	B	stainless steel	3	M6	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-12004060	B	stainless steel	4	M6	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-12004080	B	stainless steel	4	M8	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-12105080	B	stainless steel	5	M8	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-12105100	B	stainless steel	5	M10	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-12206100	B	stainless steel	6	M10	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-12206120	B	stainless steel	6	M12	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-12308120	B	stainless steel	8	M12	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-02903061	B	steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-02004061	B	steel	4	M6x0,75	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-02004081	B	steel	4	M8x1	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-02105081	B	steel	5	M8x1	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-02105101	B	steel	5	M10x1	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-02206101	B	steel	6	M10x1	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-02206121	B	steel	6	M12x1,5	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-02308121	B	steel	8	M12x1,5	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-12903061	B	stainless steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-12004061	B	stainless steel	4	M6x0,75	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-12004081	B	stainless steel	4	M8x1	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-12105081	B	stainless steel	5	M8x1	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-12105101	B	stainless steel	5	M10x1	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-12206101	B	stainless steel	6	M10x1	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-12206121	B	stainless steel	6	M12x1,5	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-12308121	B	stainless steel	8	M12x1,5	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip and locking slot

More information

Drawings

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip and locking slot

Item selection/filter

	C	steel stainless steel	3 4 5 6 8	M6 M8 M10 M12 M6x0,75 M8x1 M10x1 M12x1,5	14 18 25	31,5 36 40 42,5 47,5 51,7 61,7	12 15 17 20 26	5 6 7 8 10	10 13 15 17 23	3,5 4 5 6 8	6 8 10 12	0,8 1 1,3 1,8 2,3	4 6 8	10 12 15 19	2 7 15 20				Reset
Order No.	Form	Main material	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-03903060	C	steel	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-03004060	C	steel	4	M6	14	36	15	6	13	4	6	1	6	12	2			on request
03089-03004080	C	steel	4	M8	14	36	15	6	13	4	8	1	6	12	7			on request
03089-03105080	C	steel	5	M8	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-03105100	C	steel	5	M10	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-03206100	C	steel	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-03206120	C	steel	6	M12	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-03308120	C	steel	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-13903060	C	stainless steel	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-13004060	C	stainless steel	4	M6	14	36	15	6	13	4	6	1	6	12	2			on request
03089-13004080	C	stainless steel	4	M8	14	36	15	6	13	4	8	1	6	12	7			on request
03089-13105080	C	stainless steel	5	M8	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-13105100	C	stainless steel	5	M10	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-13206100	C	stainless steel	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-13206120	C	stainless steel	6	M12	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-13308120	C	stainless steel	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-03903061	C	steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-03004061	C	steel	4	M6x0,75	14	36	15	6	13	4	6	1	6	12	2			on request
03089-03004081	C	steel	4	M8x1	14	36	15	6	13	4	8	1	6	12	7			on request
03089-03105081	C	steel	5	M8x1	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-03105101	C	steel	5	M10x1	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-03206101	C	steel	6	M10x1	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-03206121	C	steel	6	M12x1,5	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-03308121	C	steel	8	M12x1,5	25	61,7	26	10	23	8	12	2,3	8	19	20			on request
03089-13903061	C	stainless steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	0,8	4	10	2			on request
03089-13004061	C	stainless steel	4	M6x0,75	14	36	15	6	13	4	6	1	6	12	2			on request
03089-13004081	C	stainless steel	4	M8x1	14	36	15	6	13	4	8	1	6	12	7			on request
03089-13105081	C	stainless steel	5	M8x1	14	40	17	7	15	5	8	1,3	6	12	7			on request
03089-13105101	C	stainless steel	5	M10x1	18	42,5	17	7	15	5	10	1,3	6	12	15			on request
03089-13206101	C	stainless steel	6	M10x1	18	47,5	20	8	17	6	10	1,8	8	15	15			on request
03089-13206121	C	stainless steel	6	M12x1,5	25	51,7	20	8	17	6	12	1,8	8	15	20			on request
03089-13308121	C	stainless steel	8	M12x1,5	25	61,7	26	10	23	8	12	2,3	8	19	20			on request

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip, locking slot and locknut

More information

Drawings

Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip, locking slot and locknut

Item selection/filter

	D	steel stainless steel	3 4 5 6 8	M6 M8 M10 M12 M6x0,75 M8x1 M10x1 M12x1,5	14 18 25	31,5 36 40 42,5 47,5 51,7 61,7	12 15 17 20 26	5 6 7 8 10	10 13 15 17 23	3,5 4 5 6 8	6 8 10 12	10 13 17 19	0,8 1 1,3 1,8 2,3	4 6 8	10 12 15 19	2 7 15 20				Reset
Order No.	Form	Main material	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque max. Nm	CAD	Acc.	Price	Order
03089-04903060	D	steel	3	M6	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-04004060	D	steel	4	M6	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-04004080	D	steel	4	M8	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-04105080	D	steel	5	M8	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-04105100	D	steel	5	M10	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-04206100	D	steel	6	M10	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-04206120	D	steel	6	M12	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-04308120	D	steel	8	M12	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-14903060	D	stainless steel	3	M6	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-14004060	D	stainless steel	4	M6	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-14004080	D	stainless steel	4	M8	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-14105080	D	stainless steel	5	M8	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-14105100	D	stainless steel	5	M10	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-14206100	D	stainless steel	6	M10	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-14206120	D	stainless steel	6	M12	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-14308120	D	stainless steel	8	M12	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-04903061	D	steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-04004061	D	steel	4	M6x0,75	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-04004081	D	steel	4	M8x1	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-04105081	D	steel	5	M8x1	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-04105101	D	steel	5	M10x1	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-04206101	D	steel	6	M10x1	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-04206121	D	steel	6	M12x1,5	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-04308121	D	steel	8	M12x1,5	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request
03089-14903061	D	stainless steel	3	M6x0,75	14	31,5	12	5	10	3,5	6	10	0,8	4	10	2			on request
03089-14004061	D	stainless steel	4	M6x0,75	14	36	15	6	13	4	6	10	1	6	12	2			on request
03089-14004081	D	stainless steel	4	M8x1	14	36	15	6	13	4	8	13	1	6	12	7			on request
03089-14105081	D	stainless steel	5	M8x1	14	40	17	7	15	5	8	13	1,3	6	12	7			on request
03089-14105101	D	stainless steel	5	M10x1	18	42,5	17	7	15	5	10	17	1,3	6	12	15			on request
03089-14206101	D	stainless steel	6	M10x1	18	47,5	20	8	17	6	10	17	1,8	8	15	15			on request
03089-14206121	D	stainless steel	6	M12x1,5	25	51,7	20	8	17	6	12	19	1,8	8	15	20			on request
03089-14308121	D	stainless steel	8	M12x1,5	25	61,7	26	10	23	8	12	19	2,3	8	19	20			on request

Other items in this category

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-50 | 51-60 | 61-70 | > | >>

Indexing plungers, steel or stainless steel with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip

Indexing plungers, steel or stainless steel with plastic mushroom grip and thread lock

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip and thread lock

Indexing plungers, steel or stainless steel with plastic mushroom grip and extended indexing pin

03089

Indexing plungers, steel or stainless steel
with plastic mushroom grip and extended indexing pin

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

03089

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and thread lock

Indexing plungers, stainless steel with stainless steel mushroom grip

03089

Indexing plungers, stainless steel with stainless steel mushroom grip

Indexing plungers, stainless steel short version with stainless steel mushroom grip

03089

Indexing plungers, stainless steel short version with stainless steel mushroom grip

Indexing plungers, steel or stainless steel for thin-walled parts, with plastic mushroom grip

03089

Indexing plungers, steel or stainless steel for thin-walled parts, with plastic mushroom grip

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and cylindrical indexing pin

03089

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip and cylindrical indexing pin

Bush, cylindrical, steel or stainless steel, for Premium indexing plunger

03089

Bush, cylindrical, steel or stainless steel, for Premium indexing plunger

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-50 | 51-60 | 61-70 | > | >>

Shopping cart

Number of items:

0

Amount:

0.00 €

欢迎扫描二维码
咨询诺瑞朗官方客服微信

China

苏ICP备20011289号-1

苏公网安备32058502011222

Copyright © 2025 norelem. All rights reserved.

Tel. +49 71 45/206-44 to 45 · Fax +49 71 45/206-83

请您留言

诺瑞朗中国区 0512-5377 5817

提交
