03090Indexing plungers, steel or stainless steel with plastic cam... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead-centre of the cam.
The ergonomic cam lever enables light handling with low effort. Material:Steel version:
Grub screw and indexing pin steel.
Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Handle fibreglass reinforced thermoplastic PPA (high temperature resistant). Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve, bright.
Indexing pin ground and left bright.
Grip black or traffic red RAL3020.Temperature range:Permanent operating temperature acc. to IEC 216 max. 160°C.
Short-term operating temperature max. 250°C.Advantages:Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.On request:Special versions.Accessory:Spacer rings 03089
Positioning bushes for indexing plunger 03099-50

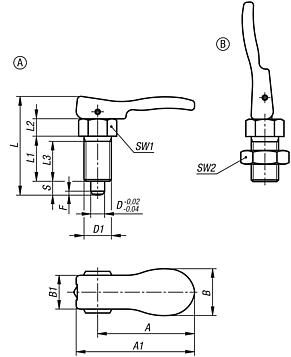

Mounting brackets 03099Drawing reference:Form A: without locknut
Form B: with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

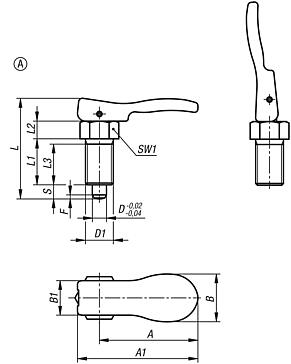

Indexing plungers, steel or stainless steel with plastic cam lever |
More information |
| Order No. | Main
material | Component
colour | Form | A | A1 | B | B1 | D
| D1 | Travel
S | L | L1 | L2 | L3 | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-8105 | steel | black | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 1,3 | 5 | 12 |  | | on request | | | 03090-8206 | steel | black | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 1,8 | 6 | 14 | | | on request | | | 03090-8308 | steel | black | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 2,3 | 15 | 35 | | | on request | | | 03090-8410 | steel | black | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 2,8 | 15 | 34 | | | on request | | | 03090-8105154 | steel | traffic red RAL 3020 | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 1,3 | 5 | 12 | | | on request | | | 03090-8206154 | steel | traffic red RAL 3020 | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 1,8 | 6 | 14 | | | on request | | | 03090-8308154 | steel | traffic red RAL 3020 | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 2,3 | 15 | 35 | | | on request | | | 03090-8410154 | steel | traffic red RAL 3020 | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 2,8 | 15 | 34 | | | on request | | | 03090-18105 | stainless steel | black | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 1,3 | 5 | 12 | | | on request | | | 03090-18206 | stainless steel | black | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 1,8 | 6 | 14 | | | on request | | | 03090-18308 | stainless steel | black | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 2,3 | 15 | 35 | | | on request | | | 03090-18410 | stainless steel | black | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 2,8 | 15 | 34 | | | on request | | | 03090-18105154 | stainless steel | traffic red RAL 3020 | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 1,3 | 5 | 12 | | | on request | | | 03090-18206154 | stainless steel | traffic red RAL 3020 | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 1,8 | 6 | 14 | | | on request | | | 03090-18308154 | stainless steel | traffic red RAL 3020 | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 2,3 | 15 | 35 | | | on request | | | 03090-18410154 | stainless steel | traffic red RAL 3020 | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 2,8 | 15 | 34 | | | on request | |
|

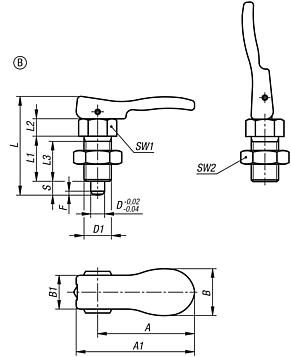

Indexing plungers, steel or stainless steel with plastic cam lever and locknut |
More information |
| Order No. | Main
material | Component
colour | Form | A | A1 | B | B1 | D
| D1 | Travel
S | L | L1 | L2 | L3 | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-9105 | steel | black | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | 03090-9206 | steel | black | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | 03090-9308 | steel | black | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | 03090-9410 | steel | black | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 30 | 2,8 | 15 | 34 | | | on request | | | 03090-9105154 | steel | traffic red RAL 3020 | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | 03090-9206154 | steel | traffic red RAL 3020 | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | 03090-9308154 | steel | traffic red RAL 3020 | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | 03090-9410154 | steel | traffic red RAL 3020 | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 30 | 2,8 | 15 | 34 | | | on request | | | 03090-19105 | stainless steel | black | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | 03090-19206 | stainless steel | black | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | 03090-19308 | stainless steel | black | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | 03090-19410 | stainless steel | black | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 30 | 2,8 | 15 | 34 | | | on request | | | 03090-19105154 | stainless steel | traffic red RAL 3020 | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 39 | 17 | 7 | 15 | 13 | 17 | 1,3 | 5 | 12 | | | on request | | | 03090-19206154 | stainless steel | traffic red RAL 3020 | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 44 | 20 | 8 | 17 | 14 | 19 | 1,8 | 6 | 14 | | | on request | | | 03090-19308154 | stainless steel | traffic red RAL 3020 | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 56,9 | 26 | 10 | 23 | 19 | 24 | 2,3 | 15 | 35 | | | on request | | | 03090-19410154 | stainless steel | traffic red RAL 3020 | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 62,9 | 28 | 12 | 25 | 22 | 30 | 2,8 | 15 | 34 | | | on request | |
|
