Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

03093

Indexing plungers, steel or stainless steel without collar, with...

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel version
Indexing pin hardened:
grade 5.8.

Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.

Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Mushroom knob black-grey thermoplastic.

Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A washer is available to aid by screwing in the indexing plungers. The washer slides beneath the mushroom knob so that the carrier pins engage in the slot.On request:Special versions.Accessory:Spacer rings 03089.

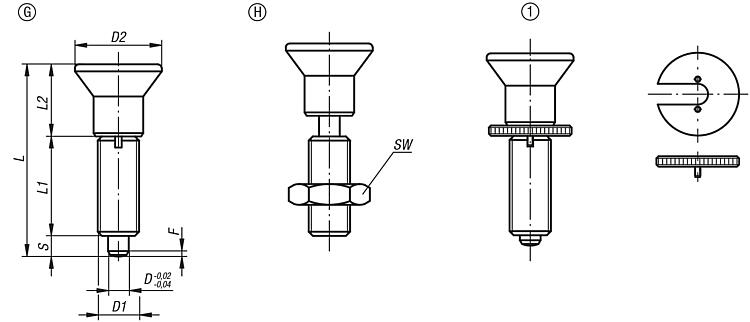

fastening sets for thin-walled parts 03094-10.Drawing reference:

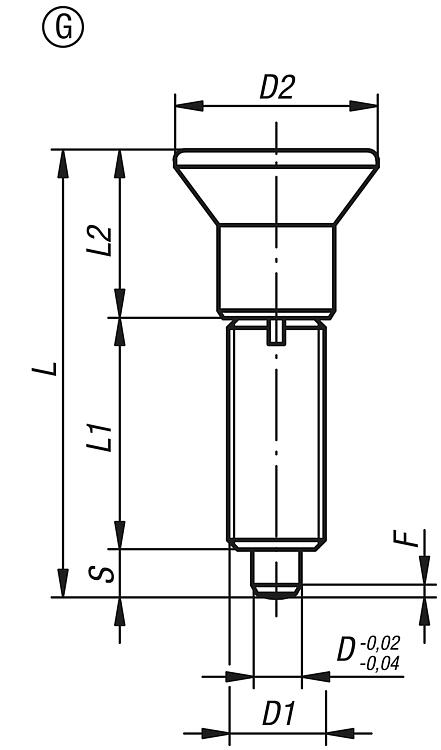

Form G: without locknut

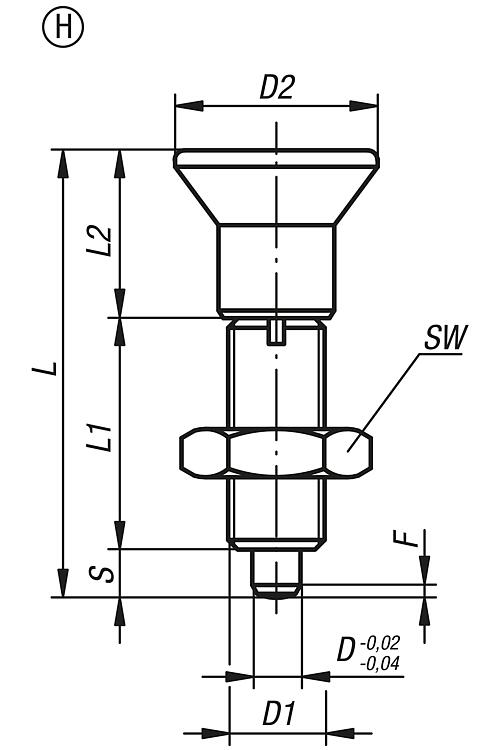

Form H: with locknut

1) Indexing plunger with screw-in washer

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03093 Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

Drawings (total overview)

Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

More information

Drawings

Indexing plungers, steel or stainless steel without collar, with plastic mushroom grip

Item selection/filter

Order No.	Form	Main material	Surface finish body	D	D1	D2	L	L1	L2	Travel S	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No. screw-in washer	CAD	Acc.	Price	Order
03093-1903	G	steel	hardened	3	M6x0,75	14	31,5	17	11	3,5	0,8	4,5	10	03094-99			on request
03093-1004	G	steel	hardened	4	M8x1	18	38,5	21	13,5	4	1,3	6	12	03094-90			on request
03093-1105	G	steel	hardened	5	M10x1	21	43,5	24	14,5	5	1,3	5	12	03094-91			on request
03093-1206	G	steel	hardened	6	M12x1,5	25	51,7	28	17,7	6	1,8	6	14	03094-92			on request
03093-1308	G	steel	hardened	8	M16x1,5	33	68	36	24	8	2,3	15	35	03094-93			on request
03093-1410	G	steel	hardened	10	M20x1,5	33	74	40	24	10	2,8	15	34	03094-94			on request
03093-1412	G	steel	hardened	12	M20x1,5	33	78	42	24	12	2,8	15	39	03094-94			on request
03093-1516	G	steel	hardened	16	M24x2	40	96	50	30	16	3,2	20	46	03094-95			on request
03093-01903	G	stainless steel	hardened	3	M6x0,75	14	31,5	17	11	3,5	0,8	4,5	10	03094-99			on request
03093-01004	G	stainless steel	hardened	4	M8x1	18	38,5	21	13,5	4	1,3	6	12	03094-90			on request
03093-01105	G	stainless steel	hardened	5	M10x1	21	43,5	24	14,5	5	1,3	5	12	03094-91			on request
03093-01206	G	stainless steel	hardened	6	M12x1,5	25	51,7	28	17,7	6	1,8	6	14	03094-92			on request
03093-01308	G	stainless steel	hardened	8	M16x1,5	33	68	36	24	8	2,3	15	35	03094-93			on request
03093-01410	G	stainless steel	hardened	10	M20x1,5	33	74	40	24	10	2,8	15	34	03094-94			on request
03093-01412	G	stainless steel	hardened	12	M20x1,5	33	78	42	24	12	2,8	15	39	03094-94			on request
03093-01516	G	stainless steel	hardened	16	M24x2	40	96	50	30	16	3,2	20	46	03094-95			on request
03093-11903	G	stainless steel	not hardened	3	M6x0,75	14	31,5	17	11	3,5	0,8	4,5	10	03094-99			on request
03093-11004	G	stainless steel	not hardened	4	M8x1	18	38,5	21	13,5	4	1,3	6	12	03094-90			on request
03093-11105	G	stainless steel	not hardened	5	M10x1	21	43,5	24	14,5	5	1,3	5	12	03094-91			on request
03093-11206	G	stainless steel	not hardened	6	M12x1,5	25	51,7	28	17,7	6	1,8	6	14	03094-92			on request
03093-11308	G	stainless steel	not hardened	8	M16x1,5	33	68	36	24	8	2,3	15	35	03094-93			on request
03093-11410	G	stainless steel	not hardened	10	M20x1,5	33	74	40	24	10	2,8	15	34	03094-94			on request
03093-11412	G	stainless steel	not hardened	12	M20x1,5	33	78	42	24	12	2,8	15	39	03094-94			on request
03093-11516	G	stainless steel	not hardened	16	M24x2	40	96	50	30	16	3,2	20	46	03094-95			on request

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and locknut

More information

Drawings

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and locknut

Item selection/filter

Order No.	Form	Main material	Surface finish body	D	D1	D2	L	L1	L2	Travel S	SW	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Order No. screw-in washer	CAD	Acc.	Price	Order
03093-2903	H	steel	hardened	3	M6x0,75	14	31,5	17	11	3,5	10	0,8	4,5	10	03094-99			on request
03093-2004	H	steel	hardened	4	M8x1	18	38,5	21	13,5	4	13	1,3	6	12	03094-90			on request
03093-2105	H	steel	hardened	5	M10x1	21	43,5	24	14,5	5	17	1,3	5	12	03094-91			on request
03093-2206	H	steel	hardened	6	M12x1,5	25	51,7	28	17,7	6	19	1,8	6	14	03094-92			on request
03093-2308	H	steel	hardened	8	M16x1,5	33	68	36	24	8	24	2,3	15	35	03094-93			on request
03093-2410	H	steel	hardened	10	M20x1,5	33	74	40	24	10	30	2,8	15	34	03094-94			on request
03093-2412	H	steel	hardened	12	M20x1,5	33	78	42	24	12	30	2,8	15	39	03094-94			on request
03093-2516	H	steel	hardened	16	M24x2	40	96	50	30	16	36	3,2	20	46	03094-95			on request
03093-02903	H	stainless steel	hardened	3	M6x0,75	14	31,5	17	11	3,5	10	0,8	4,5	10	03094-99			on request
03093-02004	H	stainless steel	hardened	4	M8x1	18	38,5	21	13,5	4	13	1,3	6	12	03094-90			on request
03093-02105	H	stainless steel	hardened	5	M10x1	21	43,5	24	14,5	5	17	1,3	5	12	03094-91			on request
03093-02206	H	stainless steel	hardened	6	M12x1,5	25	51,7	28	17,7	6	19	1,8	6	14	03094-92			on request
03093-02308	H	stainless steel	hardened	8	M16x1,5	33	68	36	24	8	24	2,3	15	35	03094-93			on request
03093-02410	H	stainless steel	hardened	10	M20x1,5	33	74	40	24	10	30	2,8	15	34	03094-94			on request
03093-02412	H	stainless steel	hardened	12	M20x1,5	33	78	42	24	12	30	2,8	15	39	03094-94			on request
03093-02516	H	stainless steel	hardened	16	M24x2	40	96	50	30	16	36	3,2	20	46	03094-95			on request
03093-12903	H	stainless steel	not hardened	3	M6x0,75	14	31,5	17	11	3,5	10	0,8	4,5	10	03094-99			on request
03093-12004	H	stainless steel	not hardened	4	M8x1	18	38,5	21	13,5	4	13	1,3	6	12	03094-90			on request
03093-12105	H	stainless steel	not hardened	5	M10x1	21	43,5	24	14,5	5	17	1,3	5	12	03094-91			on request
03093-12206	H	stainless steel	not hardened	6	M12x1,5	25	51,7	28	17,7	6	19	1,8	6	14	03094-92			on request
03093-12308	H	stainless steel	not hardened	8	M16x1,5	33	68	36	24	8	24	2,3	15	35	03094-93			on request
03093-12410	H	stainless steel	not hardened	10	M20x1,5	33	74	40	24	10	30	2,8	15	34	03094-94			on request
03093-12412	H	stainless steel	not hardened	12	M20x1,5	33	78	42	24	12	30	2,8	15	39	03094-94			on request
03093-12516	H	stainless steel	not hardened	16	M24x2	40	96	50	30	16	36	3,2	20	46	03094-95			on request
