03098-20Indexing plunger mini steel or stainless steel with plastic... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.
Indexing plungers mini enable a wide range of applications, especially in small installation spaces. They are a space-saving and cost-effective alternative to the familiar standard designs.Material:Steel version:
Threaded sleeve machining steel.
Indexing pin stainless steel 1.4305.
Stainless steel version:
Threaded sleeve and indexing pin stainless steel 1.4305.
Compression spring stainless steel 1.4568.
Mushroom grip thermoplastic. Version:Steel version:
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Threaded sleeve and indexing pin bright.Type of operation:In Form C, the mushroom grip can be rotated by 30° to hold the indexing pin in pulled position.Assembly:The indexing pin must be pulled out for installation with an open-end spanner.Accessory:Spacer rings 03089.
Hexagon nuts, low profile DIN 439 / ISO 4035, 07212.

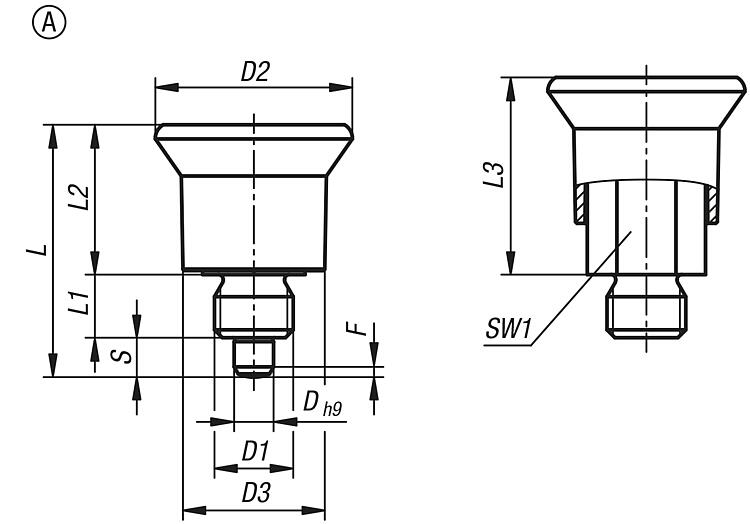

Positioning bushes for indexing plunger 03099-50.Drawing reference:Form A: non-lockout type, without locknut
Form C: lockout type, without locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

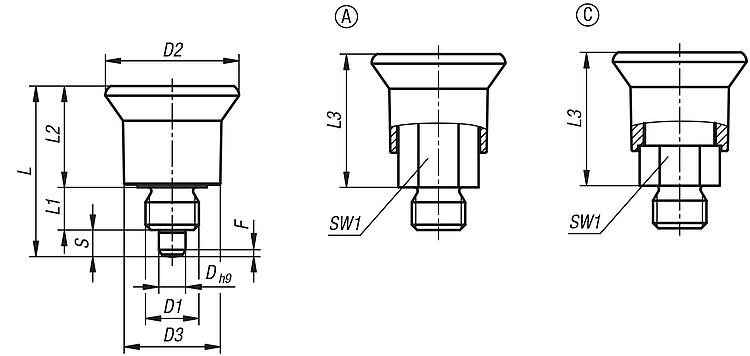

Drawings (total overview) |

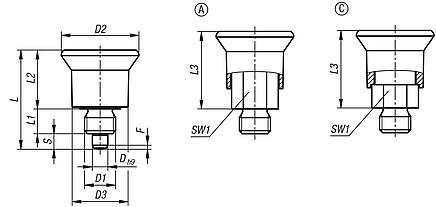

Indexing plunger mini steel or stainless steel
with plastic mushroom grip |
More information |
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | D3 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03098-20-1004081 | A | steel | blue-passivated | black grey RAL 7021 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 |  | | on request | | | 03098-20-1005081 | A | steel | blue-passivated | black grey RAL 7021 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-1105101 | A | steel | blue-passivated | black grey RAL 7021 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-1106101 | A | steel | blue-passivated | black grey RAL 7021 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-1206121 | A | steel | blue-passivated | black grey RAL 7021 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-1208121 | A | steel | blue-passivated | black grey RAL 7021 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-1308161 | A | steel | blue-passivated | black grey RAL 7021 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-1310161 | A | steel | blue-passivated | black grey RAL 7021 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-100408184 | A | steel | blue-passivated | traffic red RAL 3020 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-100508184 | A | steel | blue-passivated | traffic red RAL 3020 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-110510184 | A | steel | blue-passivated | traffic red RAL 3020 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-110610184 | A | steel | blue-passivated | traffic red RAL 3020 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-120612184 | A | steel | blue-passivated | traffic red RAL 3020 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-120812184 | A | steel | blue-passivated | traffic red RAL 3020 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-130816184 | A | steel | blue-passivated | traffic red RAL 3020 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-131016184 | A | steel | blue-passivated | traffic red RAL 3020 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-11004081 | A | stainless steel | bright | black grey RAL 7021 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-11005081 | A | stainless steel | bright | black grey RAL 7021 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-11105101 | A | stainless steel | bright | black grey RAL 7021 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-11106101 | A | stainless steel | bright | black grey RAL 7021 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-11206121 | A | stainless steel | bright | black grey RAL 7021 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-11208121 | A | stainless steel | bright | black grey RAL 7021 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-11308161 | A | stainless steel | bright | black grey RAL 7021 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-11310161 | A | stainless steel | bright | black grey RAL 7021 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-1100408184 | A | stainless steel | bright | traffic red RAL 3020 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-1100508184 | A | stainless steel | bright | traffic red RAL 3020 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-1110510184 | A | stainless steel | bright | traffic red RAL 3020 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-1110610184 | A | stainless steel | bright | traffic red RAL 3020 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-1120612184 | A | stainless steel | bright | traffic red RAL 3020 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-1131016184 | A | stainless steel | bright | traffic red RAL 3020 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-1120812184 | A | stainless steel | bright | traffic red RAL 3020 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-1130816184 | A | stainless steel | bright | traffic red RAL 3020 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | |
|
Indexing plunger mini, steel or stainless steel with plastic mushroom grip and locking slot |
More information |
| Order No. | Form | Main
material | Surface finish
body | Component
colour | D | D1 | D2 | D3 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03098-20-3004081 | C | steel | blue-passivated | black grey RAL 7021 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-3005081 | C | steel | blue-passivated | black grey RAL 7021 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-3105101 | C | steel | blue-passivated | black grey RAL 7021 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-3106101 | C | steel | blue-passivated | black grey RAL 7021 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-3206121 | C | steel | blue-passivated | black grey RAL 7021 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-3208121 | C | steel | blue-passivated | black grey RAL 7021 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-3308161 | C | steel | blue-passivated | black grey RAL 7021 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-3310161 | C | steel | blue-passivated | black grey RAL 7021 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-300408184 | C | steel | blue-passivated | traffic red RAL 3020 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-300508184 | C | steel | blue-passivated | traffic red RAL 3020 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-310510184 | C | steel | blue-passivated | traffic red RAL 3020 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-310610184 | C | steel | blue-passivated | traffic red RAL 3020 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-320612184 | C | steel | blue-passivated | traffic red RAL 3020 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-320812184 | C | steel | blue-passivated | traffic red RAL 3020 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-330816184 | C | steel | blue-passivated | traffic red RAL 3020 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-331016184 | C | steel | blue-passivated | traffic red RAL 3020 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-13004081 | C | stainless steel | bright | black grey RAL 7021 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-13005081 | C | stainless steel | bright | black grey RAL 7021 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-13105101 | C | stainless steel | bright | black grey RAL 7021 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-13106101 | C | stainless steel | bright | black grey RAL 7021 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-13206121 | C | stainless steel | bright | black grey RAL 7021 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-13208121 | C | stainless steel | bright | black grey RAL 7021 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-13308161 | C | stainless steel | bright | black grey RAL 7021 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-13310161 | C | stainless steel | bright | black grey RAL 7021 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | | | 03098-20-1300408184 | C | stainless steel | bright | traffic red RAL 3020 | 4 | M8x1 | 21 | 15 | 26,5 | 6 | 16,5 | 21,5 | 4 | 10 | 1 | 3 | 16 | | | on request | | | 03098-20-1300508184 | C | stainless steel | bright | traffic red RAL 3020 | 5 | M8x1 | 21 | 15 | 27,5 | 6 | 16,5 | 21,5 | 5 | 10 | 1,3 | 3 | 16 | | | on request | | | 03098-20-1310510184 | C | stainless steel | bright | traffic red RAL 3020 | 5 | M10x1 | 25 | 18 | 32 | 8 | 19 | 25 | 5 | 13 | 1,3 | 4,5 | 12,5 | | | on request | | | 03098-20-1310610184 | C | stainless steel | bright | traffic red RAL 3020 | 6 | M10x1 | 25 | 18 | 33 | 8 | 19 | 25 | 6 | 13 | 1,8 | 4,5 | 12,5 | | | on request | | | 03098-20-1320612184 | C | stainless steel | bright | traffic red RAL 3020 | 6 | M12x1,5 | 29 | 20 | 39 | 10 | 23 | 31 | 6 | 14 | 1,8 | 5 | 19 | | | on request | | | 03098-20-1320812184 | C | stainless steel | bright | traffic red RAL 3020 | 8 | M12x1,5 | 29 | 20 | 41 | 10 | 23 | 31 | 8 | 14 | 2,3 | 5 | 19 | | | on request | | | 03098-20-1330816184 | C | stainless steel | bright | traffic red RAL 3020 | 8 | M16x1,5 | 33 | 23 | 46 | 12 | 26 | 36 | 8 | 17 | 2,3 | 12 | 38 | | | on request | | | 03098-20-1331016184 | C | stainless steel | bright | traffic red RAL 3020 | 10 | M16x1,5 | 33 | 23 | 48 | 12 | 26 | 36 | 10 | 17 | 2,8 | 12 | 38 | | | on request | |
|
