03098-40Indexing plunger mini, die-cast zinc with plastic mushroom grip... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.
Indexing plungers mini enable a wide range of applications, especially in small installation spaces. They are a space-saving and cost-effective alternative to the familiar standard designs.
The mounting flange enables fastening to thin-walled components using countersunk screws.Material:Mounting flange die-cast zinc.
Indexing pin stainless steel 1.4305.
Compression spring stainless steel 1.4568.
Mushroom grip thermoplastic. Version:Mounting flange blue passivated.

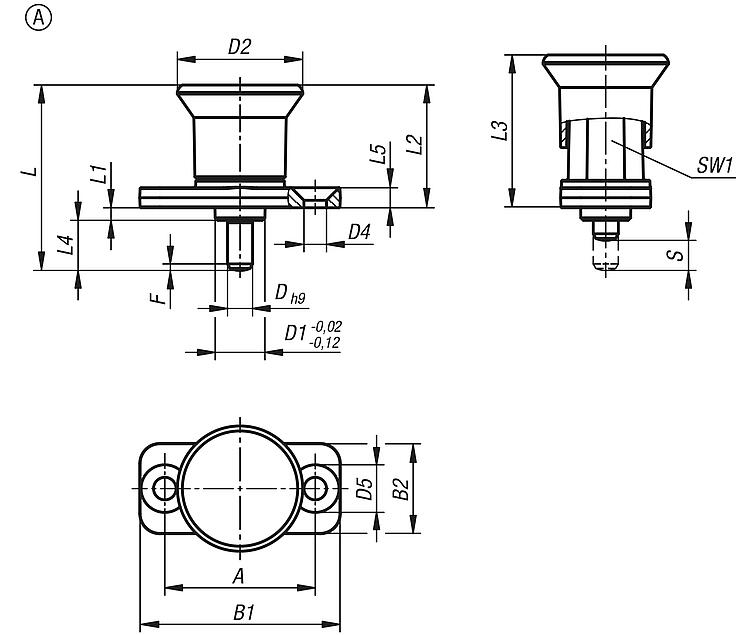

Indexing pin bright.Note:In Form C, the mushroom grip can be rotated by 30° to hold the indexing pin in pulled position.Accessory:Countersunk screws DIN EN ISO 10642, 07175.Drawing reference:Form A: non-lockout type, without locknut

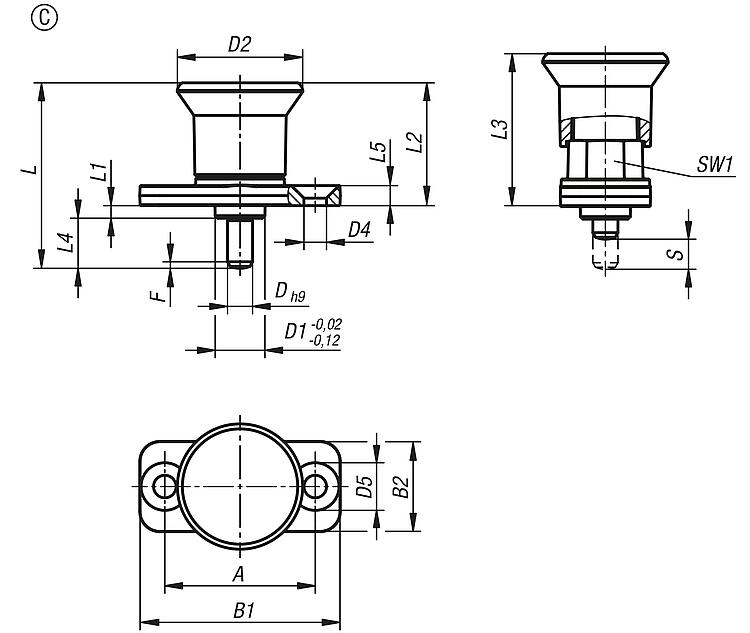

Form C: lockout type, without locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

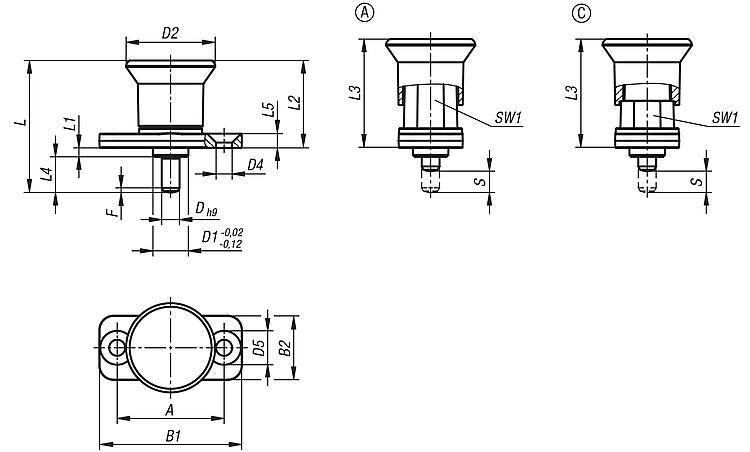

Drawings (total overview) |

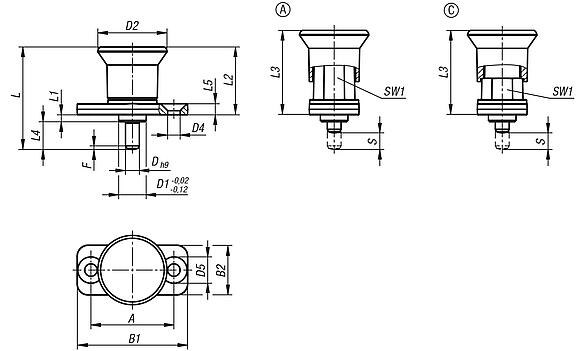

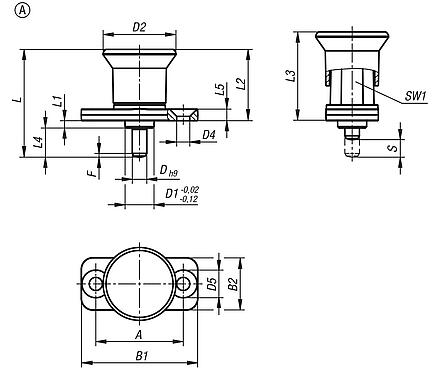

Indexing plunger mini, die-cast zinc with plastic mushroom grip and mounting flange |
More information |
| Order No. | Form | Component
colour | A | B1 | B2 | D
| D1 | D2 | D4 | D5 | Fx30° | L | L1 | L2 | L3 | L4 | L5 | Travel
S | SW1 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03098-40-100404 | A | black grey RAL 7021 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 26,5 | 2 | 20,5 | 25,5 | 4 | 4 | 4 | 10 | 3 | 16 |  | | on request | | | 03098-40-100408 | A | black grey RAL 7021 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 30,5 | 2 | 20,5 | 25,5 | 8 | 4 | 5 | 10 | 3 | 16 | | | on request | | | 03098-40-110505 | A | black grey RAL 7021 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 32 | 2,5 | 24,5 | 30,5 | 5 | 4 | 5 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-110510 | A | black grey RAL 7021 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 37 | 2,5 | 24,5 | 30,5 | 10 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-110606 | A | black grey RAL 7021 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 33 | 2,5 | 24,5 | 30,5 | 6 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-110612 | A | black grey RAL 7021 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 39 | 2,5 | 24,5 | 30,5 | 12 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-130808 | A | black grey RAL 7021 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 46 | 2,5 | 35,5 | 45,5 | 8 | 5 | 8 | 17 | 12 | 38 | | | on request | | | 03098-40-130816 | A | black grey RAL 7021 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 54 | 2,5 | 35,5 | 45,5 | 16 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-131010 | A | black grey RAL 7021 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 48 | 2,5 | 35,5 | 45,5 | 10 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-131020 | A | black grey RAL 7021 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 58 | 2,5 | 35,5 | 45,5 | 20 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-10040484 | A | traffic red RAL 3020 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 26,5 | 2 | 20,5 | 25,5 | 4 | 4 | 4 | 10 | 3 | 16 | | | on request | | | 03098-40-10040884 | A | traffic red RAL 3020 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 30,5 | 2 | 20,5 | 25,5 | 8 | 4 | 5 | 10 | 3 | 16 | | | on request | | | 03098-40-11050584 | A | traffic red RAL 3020 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 32 | 2,5 | 24,5 | 30,5 | 5 | 4 | 5 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-11051084 | A | traffic red RAL 3020 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 37 | 2,5 | 24,5 | 30,5 | 10 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-11060684 | A | traffic red RAL 3020 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 33 | 2,5 | 24,5 | 30,5 | 6 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-11061284 | A | traffic red RAL 3020 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 39 | 2,5 | 24,5 | 30,5 | 12 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-13080884 | A | traffic red RAL 3020 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 46 | 2,5 | 35,5 | 45,5 | 8 | 5 | 8 | 17 | 12 | 38 | | | on request | | | 03098-40-13081684 | A | traffic red RAL 3020 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 54 | 2,5 | 35,5 | 45,5 | 16 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-13101084 | A | traffic red RAL 3020 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 48 | 2,5 | 35,5 | 45,5 | 10 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-13102084 | A | traffic red RAL 3020 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 58 | 2,5 | 35,5 | 45,5 | 20 | 5 | 10 | 17 | 12 | 38 | | | on request | |
|

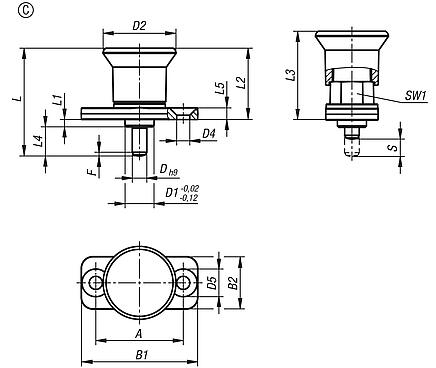

Indexing plunger mini, die-cast zinc with plastic mushroom grip and mounting flange and locking slot |
More information |
| Order No. | Form | Component
colour | A | B1 | B2 | D
| D1 | D2 | D4 | D5 | Fx30° | L | L1 | L2 | L3 | L4 | L5 | Travel
S | SW1 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03098-40-300404 | C | black grey RAL 7021 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 26,5 | 2 | 20,5 | 25,5 | 4 | 4 | 4 | 10 | 3 | 16 | | | on request | | | 03098-40-300408 | C | black grey RAL 7021 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 30,5 | 2 | 20,5 | 25,5 | 8 | 4 | 5 | 10 | 3 | 16 | | | on request | | | 03098-40-310505 | C | black grey RAL 7021 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 32 | 2,5 | 24,5 | 30,5 | 5 | 4 | 5 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-310510 | C | black grey RAL 7021 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 37 | 2,5 | 24,5 | 30,5 | 10 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-310606 | C | black grey RAL 7021 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 33 | 2,5 | 24,5 | 30,5 | 6 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-310612 | C | black grey RAL 7021 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 39 | 2,5 | 24,5 | 30,5 | 12 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-330808 | C | black grey RAL 7021 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 46 | 2,5 | 35,5 | 45,5 | 8 | 5 | 8 | 17 | 12 | 38 | | | on request | | | 03098-40-330816 | C | black grey RAL 7021 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 54 | 2,5 | 35,5 | 45,5 | 16 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-331010 | C | black grey RAL 7021 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 48 | 2,5 | 35,5 | 45,5 | 10 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-331020 | C | black grey RAL 7021 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 58 | 2,5 | 35,5 | 45,5 | 20 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-30040484 | C | traffic red RAL 3020 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 26,5 | 2 | 20,5 | 25,5 | 4 | 4 | 4 | 10 | 3 | 16 | | | on request | | | 03098-40-30040884 | C | traffic red RAL 3020 | 25 | 35 | 15 | 4 | 8 | 21 | 4,5 | 9,5 | 1 | 30,5 | 2 | 20,5 | 25,5 | 8 | 4 | 5 | 10 | 3 | 16 | | | on request | | | 03098-40-31050584 | C | traffic red RAL 3020 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 32 | 2,5 | 24,5 | 30,5 | 5 | 4 | 5 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-31051084 | C | traffic red RAL 3020 | 30 | 40 | 18 | 5 | 10 | 25 | 4,5 | 9,5 | 1,3 | 37 | 2,5 | 24,5 | 30,5 | 10 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-31060684 | C | traffic red RAL 3020 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 33 | 2,5 | 24,5 | 30,5 | 6 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-31061284 | C | traffic red RAL 3020 | 30 | 40 | 18 | 6 | 10 | 25 | 4,5 | 9,5 | 1,8 | 39 | 2,5 | 24,5 | 30,5 | 12 | 4 | 6 | 13 | 4,5 | 12,5 | | | on request | | | 03098-40-33080884 | C | traffic red RAL 3020 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 46 | 2,5 | 35,5 | 45,5 | 8 | 5 | 8 | 17 | 12 | 38 | | | on request | | | 03098-40-33081684 | C | traffic red RAL 3020 | 38 | 50 | 23 | 8 | 14 | 33 | 5,5 | 10,5 | 2,3 | 54 | 2,5 | 35,5 | 45,5 | 16 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-33101084 | C | traffic red RAL 3020 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 48 | 2,5 | 35,5 | 45,5 | 10 | 5 | 10 | 17 | 12 | 38 | | | on request | | | 03098-40-33102084 | C | traffic red RAL 3020 | 38 | 50 | 23 | 10 | 14 | 33 | 5,5 | 10,5 | 2,8 | 58 | 2,5 | 35,5 | 45,5 | 20 | 5 | 10 | 17 | 12 | 38 | | | on request | |
|
