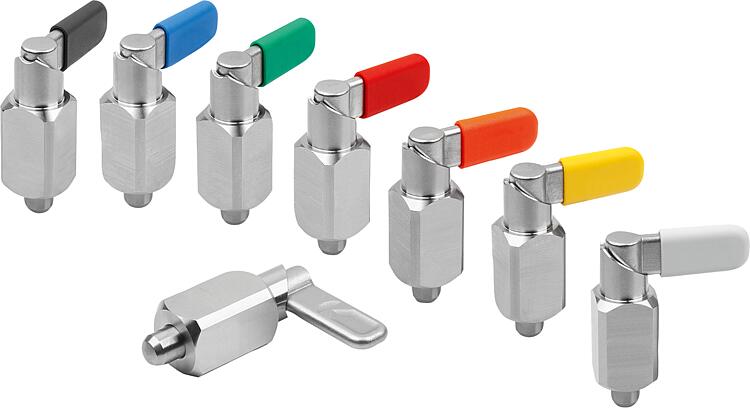

Cam-action indexing plungers, stainless steel with square sleeve

03099-19

Cam-action indexing plungers, stainless steel with square sleeve

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Cam-action indexing plungers, stainless steel with square sleeve

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.4308.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplastic PA.Version:Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light grey RAL 7035Note:The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Square sleeve for welding.On request:Special versions.
Accessory:Positioning bushes 03099-50, 03099-60, 03099-61.
Drawing reference:

Form G: without grip cap
Form H: with grip cap

Special features:

Stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-19 Cam-action indexing plungers, stainless steel with square sleeve

Drawings (total overview)

Cam-action indexing plungers, stainless steel with square sleeve

Cam-action indexing plungers, stainless steel with square sleeve, Form G, without grip cap

More information

Drawings

Cam-action indexing plungers, stainless steel with square sleeve, Form G, without grip cap

Item selection/filter

	G	4 5 6 8 10 12	10 12 16 20	38,5 47,4 61,2 71	25 30 40 50	9 10,8 14,4 18	3 3,6 4,8 6	6 8 10 12	1 1,3 1,8 2,3 2,8 3	12 16 20 24	8 15 20	14 35 60				Reset
Order No.	Form	D	D1	L	L1	B	B1	H	Fx30°	SW	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-19-1100410	G	4	10	38,5	25	9	3	6	1	12	8	14			on request
03099-19-1100510	G	5	10	38,5	25	9	3	6	1,3	12	8	14			on request
03099-19-1100610	G	6	10	38,5	25	9	3	6	1,8	12	8	14			on request
03099-19-1100512	G	5	12	47,4	30	10,8	3,6	8	1,3	16	8	14			on request
03099-19-1100612	G	6	12	47,4	30	10,8	3,6	8	1,8	16	8	14			on request
03099-19-1100812	G	8	12	47,4	30	10,8	3,6	8	2,3	16	8	14			on request
03099-19-1100616	G	6	16	61,2	40	14,4	4,8	10	1,8	20	15	35			on request
03099-19-1100816	G	8	16	61,2	40	14,4	4,8	10	2,3	20	15	35			on request
03099-19-1101016	G	10	16	61,2	40	14,4	4,8	10	2,8	20	15	35			on request
03099-19-1100820	G	8	20	71	50	18	6	12	2,3	24	20	60			on request
03099-19-1101020	G	10	20	71	50	18	6	12	2,8	24	20	60			on request
03099-19-1101220	G	12	20	71	50	18	6	12	3	24	20	60			on request

Cam-action indexing plungers, stainless steel with square sleeve, Form H, with grip caps

More information

Drawings

Cam-action indexing plungers, stainless steel with square sleeve, Form H, with grip caps

Item selection/filter

	H	black grey RAL 7021 orange RAL 2004 colza yellow RAL 1021 traffic red RAL 3020 signal green RAL 6032 traffic blue RAL 5017 light grey RAL 7035	4 5 6 8 10 12	10 12 16 20	39,5 48,4 62,3 72,3	26,3 31,1 41,5 51,3	10,9 12,9 16,6 20,5	4,9 5,7 7 8,5	6 8 10 12	1 1,3 1,8 2,3 2,8 3	12 16 20 24	8 15 20	14 35 60				Reset
Order No.	Form	Component colour	D	D1	L	L1	B	B1	H	Fx30°	SW	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-19-1110410	H	black grey RAL 7021	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-1110510	H	black grey RAL 7021	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-1110610	H	black grey RAL 7021	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-1110512	H	black grey RAL 7021	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-1110612	H	black grey RAL 7021	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-1110812	H	black grey RAL 7021	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-1110616	H	black grey RAL 7021	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-1110816	H	black grey RAL 7021	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-1111016	H	black grey RAL 7021	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-1110820	H	black grey RAL 7021	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-1111020	H	black grey RAL 7021	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-1111220	H	black grey RAL 7021	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-11104102	H	orange RAL 2004	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-11105102	H	orange RAL 2004	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-11106102	H	orange RAL 2004	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-11105122	H	orange RAL 2004	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-11106122	H	orange RAL 2004	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-11108122	H	orange RAL 2004	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-11106162	H	orange RAL 2004	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-11108162	H	orange RAL 2004	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-11110162	H	orange RAL 2004	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-11108202	H	orange RAL 2004	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-11110202	H	orange RAL 2004	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-11112202	H	orange RAL 2004	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-111041016	H	colza yellow RAL 1021	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-111051016	H	colza yellow RAL 1021	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-111061016	H	colza yellow RAL 1021	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-111051216	H	colza yellow RAL 1021	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-111061216	H	colza yellow RAL 1021	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-111081216	H	colza yellow RAL 1021	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-111061616	H	colza yellow RAL 1021	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-111081616	H	colza yellow RAL 1021	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-111101616	H	colza yellow RAL 1021	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-111082016	H	colza yellow RAL 1021	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-111102016	H	colza yellow RAL 1021	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-111122016	H	colza yellow RAL 1021	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-111041084	H	traffic red RAL 3020	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-111051084	H	traffic red RAL 3020	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-111061084	H	traffic red RAL 3020	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-111051284	H	traffic red RAL 3020	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-111061284	H	traffic red RAL 3020	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-111081284	H	traffic red RAL 3020	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-111061684	H	traffic red RAL 3020	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-111081684	H	traffic red RAL 3020	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-111101684	H	traffic red RAL 3020	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-111082084	H	traffic red RAL 3020	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-111102084	H	traffic red RAL 3020	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-111122084	H	traffic red RAL 3020	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-111041086	H	signal green RAL 6032	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-111051086	H	signal green RAL 6032	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-111061086	H	signal green RAL 6032	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-111051286	H	signal green RAL 6032	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-111061286	H	signal green RAL 6032	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-111081286	H	signal green RAL 6032	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-111061686	H	signal green RAL 6032	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-111081686	H	signal green RAL 6032	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-111101686	H	signal green RAL 6032	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-111082086	H	signal green RAL 6032	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-111102086	H	signal green RAL 6032	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-111122086	H	signal green RAL 6032	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-111041087	H	traffic blue RAL 5017	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-111051087	H	traffic blue RAL 5017	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-111061087	H	traffic blue RAL 5017	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-111051287	H	traffic blue RAL 5017	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-111061287	H	traffic blue RAL 5017	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-111081287	H	traffic blue RAL 5017	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-111061687	H	traffic blue RAL 5017	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-111081687	H	traffic blue RAL 5017	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-111101687	H	traffic blue RAL 5017	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-111082087	H	traffic blue RAL 5017	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-111102087	H	traffic blue RAL 5017	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-111122087	H	traffic blue RAL 5017	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
03099-19-111041088	H	light grey RAL 7035	4	10	39,5	26,3	10,9	4,9	6	1	12	8	14			on request
03099-19-111051088	H	light grey RAL 7035	5	10	39,5	26,3	10,9	4,9	6	1,3	12	8	14			on request
03099-19-111061088	H	light grey RAL 7035	6	10	39,5	26,3	10,9	4,9	6	1,8	12	8	14			on request
03099-19-111051288	H	light grey RAL 7035	5	12	48,4	31,1	12,9	5,7	8	1,3	16	8	14			on request
03099-19-111061288	H	light grey RAL 7035	6	12	48,4	31,1	12,9	5,7	8	1,8	16	8	14			on request
03099-19-111081288	H	light grey RAL 7035	8	12	48,4	31,1	12,9	5,7	8	2,3	16	8	14			on request
03099-19-111061688	H	light grey RAL 7035	6	16	62,3	41,5	16,6	7	10	1,8	20	15	35			on request
03099-19-111081688	H	light grey RAL 7035	8	16	62,3	41,5	16,6	7	10	2,3	20	15	35			on request
03099-19-111101688	H	light grey RAL 7035	10	16	62,3	41,5	16,6	7	10	2,8	20	15	35			on request
03099-19-111082088	H	light grey RAL 7035	8	20	72,3	51,3	20,5	8,5	12	2,3	24	20	60			on request
03099-19-111102088	H	light grey RAL 7035	10	20	72,3	51,3	20,5	8,5	12	2,8	24	20	60			on request
03099-19-111122088	H	light grey RAL 7035	12	20	72,3	51,3	20,5	8,5	12	3	24	20	60			on request
