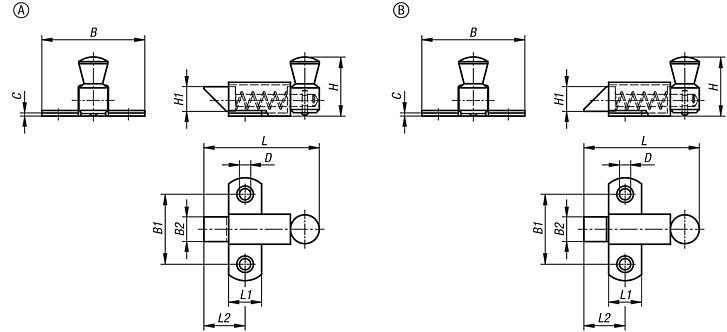

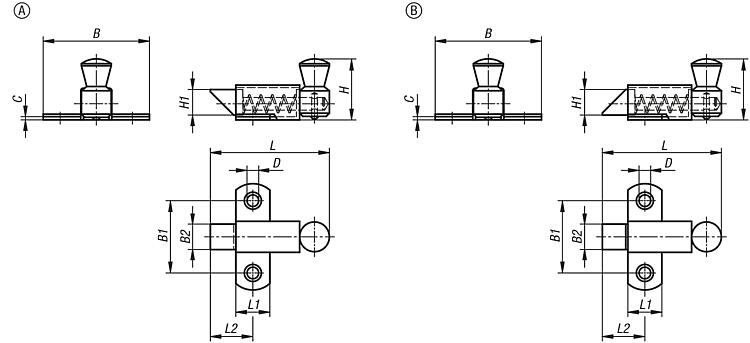

Item description/product images |
|
|
DescriptionMaterial:Housing die-cast zinc.
Grip, underlay and slot tabs thermoplastic PA.
Bolt stainless steel.Version:Housing painted silver.
Grip, underlay and slot tabs black.
Bolt bright.Note:Spring loaded bolt.
Supplied with:

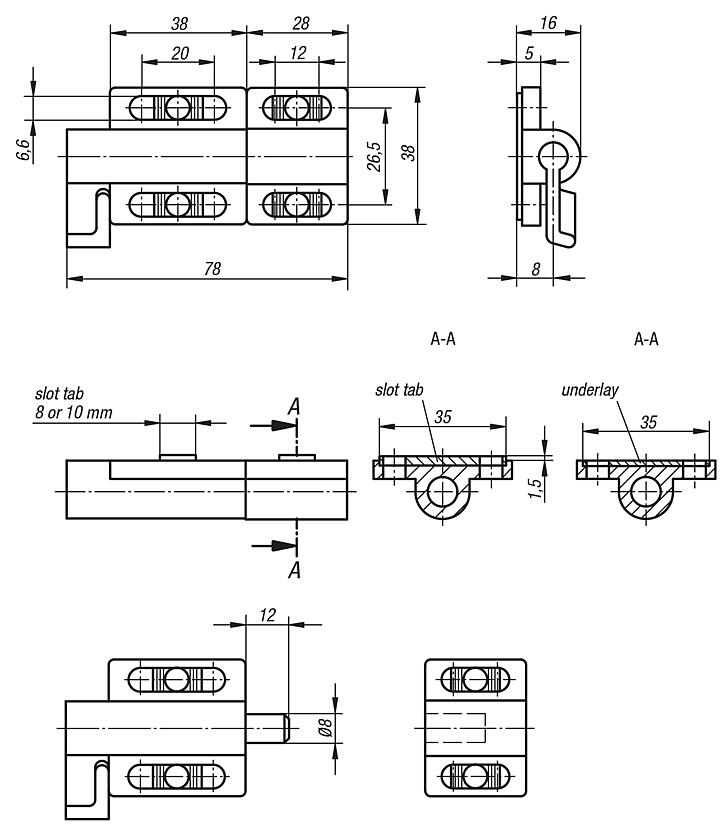

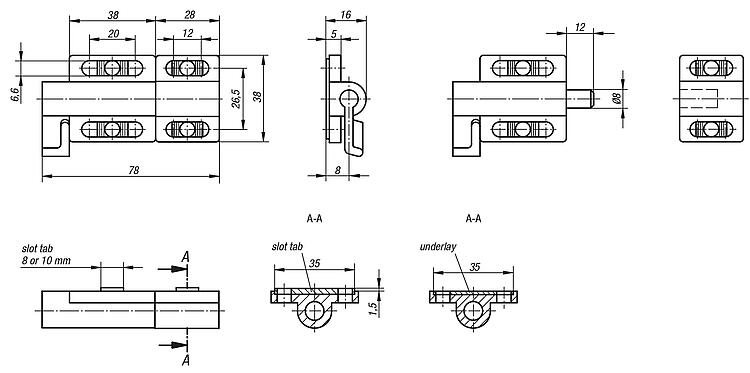

- 2 underlays for mounting on level surfaces.
- 2 of each tabs for mounting on profiles with 8 or 10 mm slots.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03102-38038028 | 5 | 15 |  | | on request | |
