Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

03186

Precision indexing plungers, steel with plastic spherical knob...

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.
Grip ball thermoplastic.Version:Hardened and ground.
Grip ball black grey.Note:The indexing plungers with bushes are a perfect combination for rapid positioning and fixing. The precise design of both the indexing plungers and the bush guarantees high repeating accuracy when assembling two elements.

Technical Information see assembly and installation instructions.Drawing reference:

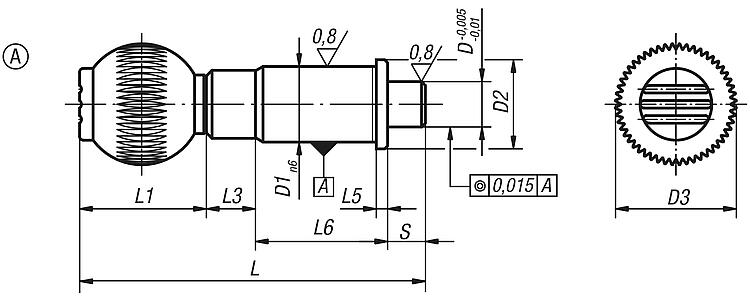

Form A: standard

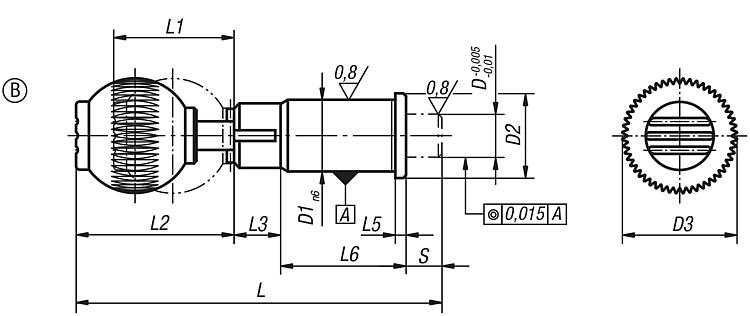

Form B: lockable

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03186 Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

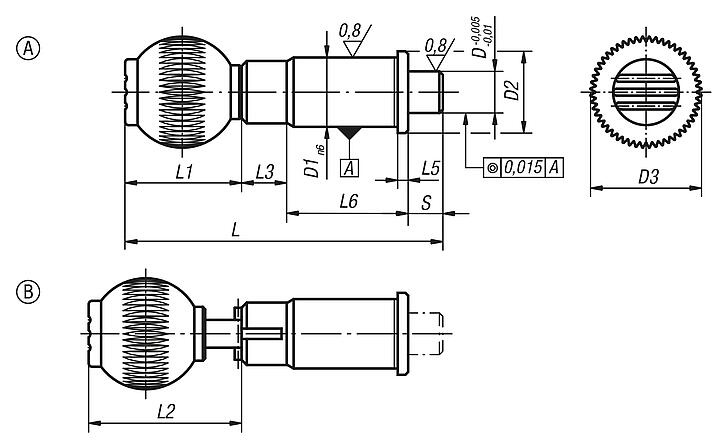

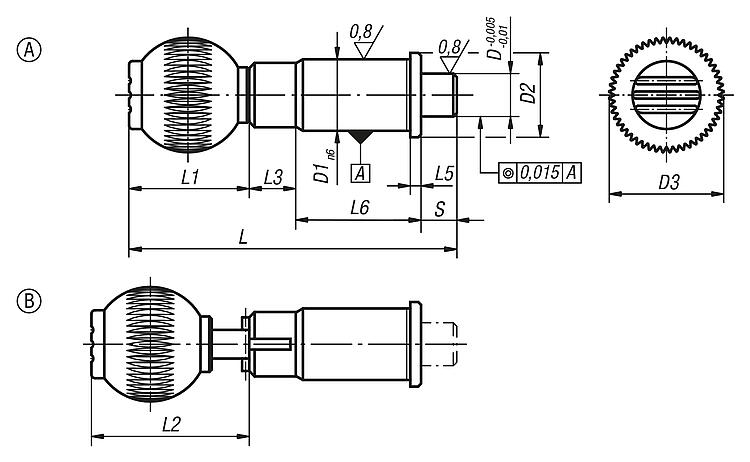

Drawings (total overview)

Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

More information

Drawings

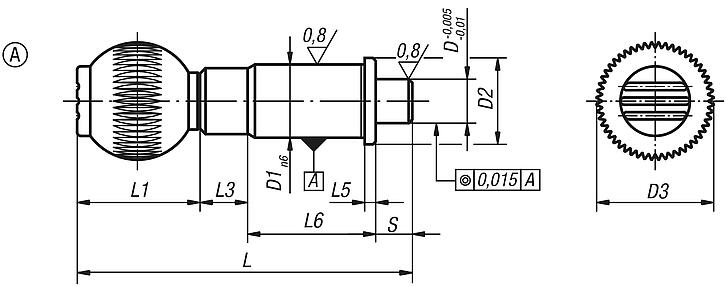

Precision indexing plungers, steel with plastic spherical knob and cylindrical indexing pin

Item selection/filter

	A	10 12 16 20 25	16 20 25 30 38	19 23 28 33 42	25 32 40 50	79 91 106,5 114,5 134	25 33 41,5 51	13	2,5 3	31 35 42 50 60	10	15 20 36	30 35 50 63 73	M6 M8 M10				Reset
Order No.	Form	D	D1	D2	D3	L	L1	L3	L5	L6	Travel S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	female thread grip ball	CAD	Acc.	Price	Order
03186-010	A	10	16	19	25	79	25	13	2,5	31	10	15	30	M6			on request
03186-012	A	12	20	23	32	91	33	13	3	35	10	15	35	M8			on request
03186-016	A	16	25	28	40	106,5	41,5	13	3	42	10	20	50	M10			on request
03186-020	A	20	30	33	40	114,5	41,5	13	3	50	10	36	63	M10			on request
03186-025	A	25	38	42	50	134	51	13	3	60	10	20	73	M10			on request

Precision indexing plungers, steel with plastic spherical knob, cylindrical indexing pin and locking slot

More information

Drawings

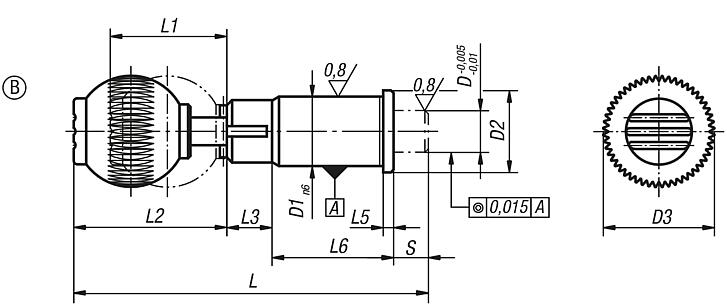

Precision indexing plungers, steel with plastic spherical knob, cylindrical indexing pin and locking slot

Item selection/filter

	B	10 12 16 20 25	16 20 25 30 38	19 23 28 33 42	25 32 40 50	79 91 106,5 114,5 134	25 33 41,5 51	36,5 44,5 53 62,5	13	2,5 3	31 35 42 50 60	10	15 20 36	30 35 50 63 73	M6 M8 M10				Reset
Order No.	Form	D	D1	D2	D3	L	L1	L2	L3	L5	L6	Travel S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	female thread grip ball	CAD	Acc.	Price	Order
03186-110	B	10	16	19	25	79	25	36,5	13	2,5	31	10	15	30	M6			on request
03186-112	B	12	20	23	32	91	33	44,5	13	3	35	10	15	35	M8			on request
03186-116	B	16	25	28	40	106,5	41,5	53	13	3	42	10	20	50	M10			on request
03186-120	B	20	30	33	40	114,5	41,5	53	13	3	50	10	36	63	M10			on request
03186-125	B	25	38	42	50	134	51	62,5	13	3	60	10	20	73	M10			on request
