Indexing and clamping grips, steel with plastic star grip
 03190-10

Indexing and clamping grips, steel with plastic star grip

 go back

Item description/product images

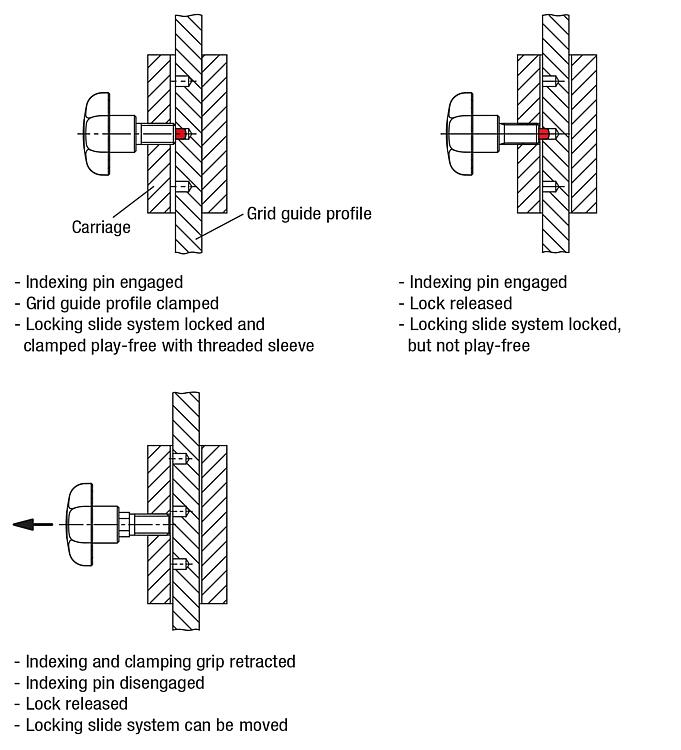

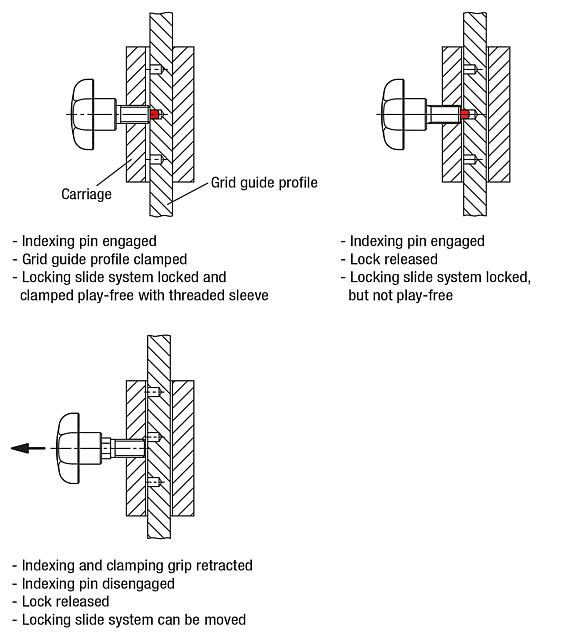

DescriptionProduct description:The indexing and clamping grips enable the positioning, securing and clamping of diverse positioning elements with just one product. Indexing is carried out using the indexing pin and the item is clamped using the end face of the sleeve.Material:

Star grip black grey thermoplastic.
Threaded sleeve steel.
Indexing pin stainless steel 1.4305.

Version:Steel electro zinc-plated.
Stainless steel bright.Advantages:Indexing and clamping with one product.
Ergonomic operation via star grip.On request:Special versions.Accessory:Hexagon nuts thin DIN 439Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 03190-10 Indexing and clamping grips, steel with plastic star grip 257 kB

Drawings

Indexing and clamping grips, steel with plastic star grip

Item selection/filter
Order No.D

D1D2D3HH1LL1Travel
S		SWCADAcc.PriceOrder
03190-10-1080404M832142010391548 on request
03190-10-2100505M10401824,91346,917510 on request
03190-10-3120606M12502231,81757,820612 on request
03190-10-4160808M16632640217426816 on request
03190-10-1080414M8x132142010391548 on request
03190-10-2100515M10x1401824,91346,917510 on request
03190-10-3120616M12x1,5502231,81757,820612 on request
03190-10-4160818M16x1,5632640217426816 on request
