        Locating cylinder stainless steel pneumatic

Item description/product images

DescriptionProduct description:By locating cylinder Form A, the clamping balls are pushed out by a spring. Compressed air is used to retract the balls.

By locating cylinder Form B, the clamping balls are initially retracted. Compressed air pushes the balls out.Material:Body, stainless steel.
Seal, NBR.Version:Stainless steel bright.Note for ordering:Form A is marked with a groove.Note:The stated clamping and retaining forces are related to an operating pressure of 0.5 Mpa.
When using several positioning units, the distance tolerance of ± 0.1 mm should not be exceeded.
Repeat accuracy ±0.2 mm.

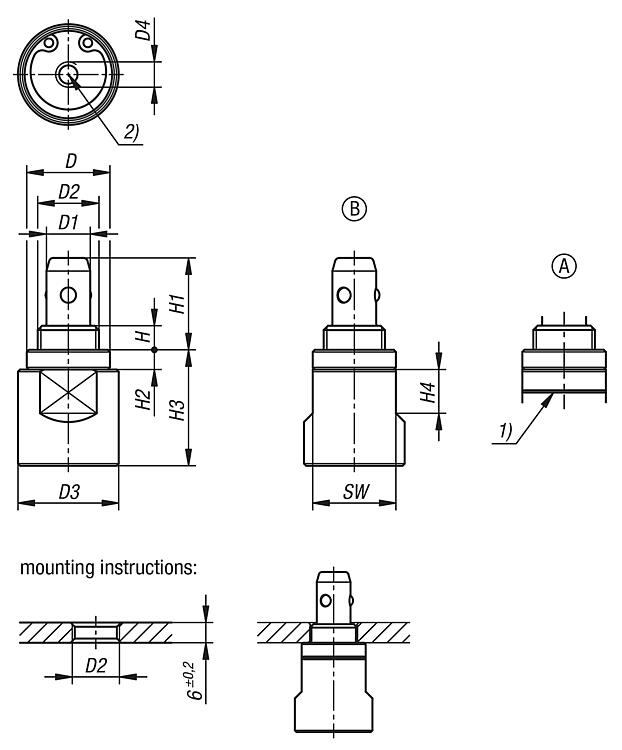

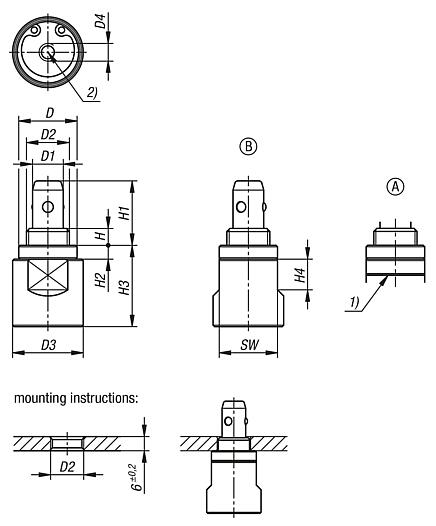

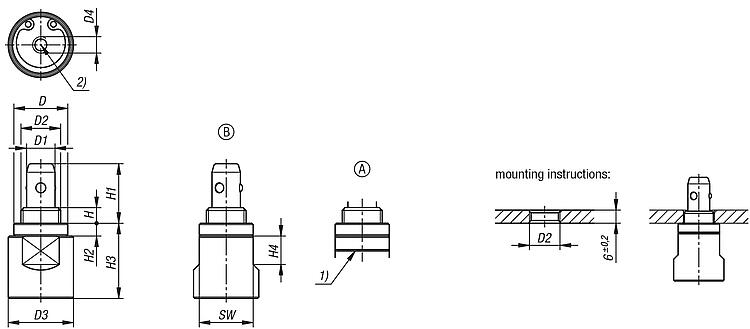

Assembly:Installation dimensions are for a 6 mm thick plate.Accessory:03161-11 locating bushes stainless steel.Drawing reference:

1) Form A ID groove
2) Pneumatic connection

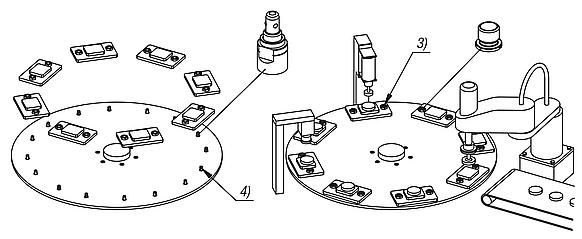

3) Locating bush for locating cylinder
4) Form A locating cylinder
5) Form B locating cylinder

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03161-10 Locating cylinder stainless steel pneumatic

400 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	D3	D4	H	H1	H2	H3	H4	SW	Operating pressure MPa	F N	Holding force N	CAD	Acc.	Price	Order
03161-10-10140	A	spring-loaded	19	10	M14x1	23	M5	5,5	21	4,5	26,5	10	19	0,3 - 0,7	50	150			on request
03161-10-10141	B	clamped pneumatically	19	10	M14x1	23	M5	5,5	21	4,5	26,5	10	19	0,3 - 0,7	150	300			on request
