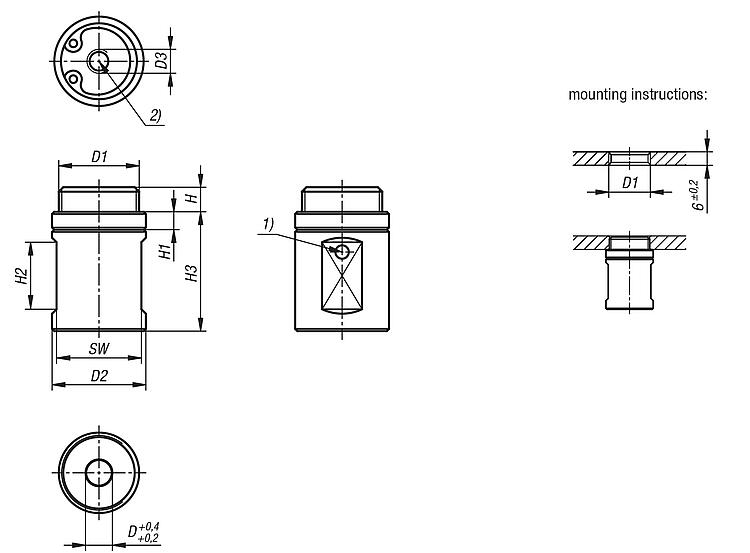

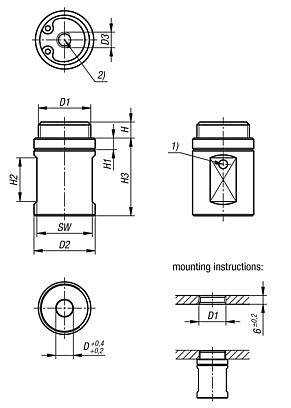

DescriptionProduct description:Clamped using compressed air. Released via integrate spring.Material:Body, stainless steel. Seal, NBR.Version:Stainless steel bright.Note:Installed dimensions for plate thickness 6 mm. The stated clamping and retaining forces are related to an operating pressure of 0.5 Mpa. When using several positioning units, the distance tolerance of ±0.1 mm should not be exceeded. Repeat accuracy ±0.2 mm. Accessory:Clamping pins 03192-25.Drawing reference:
