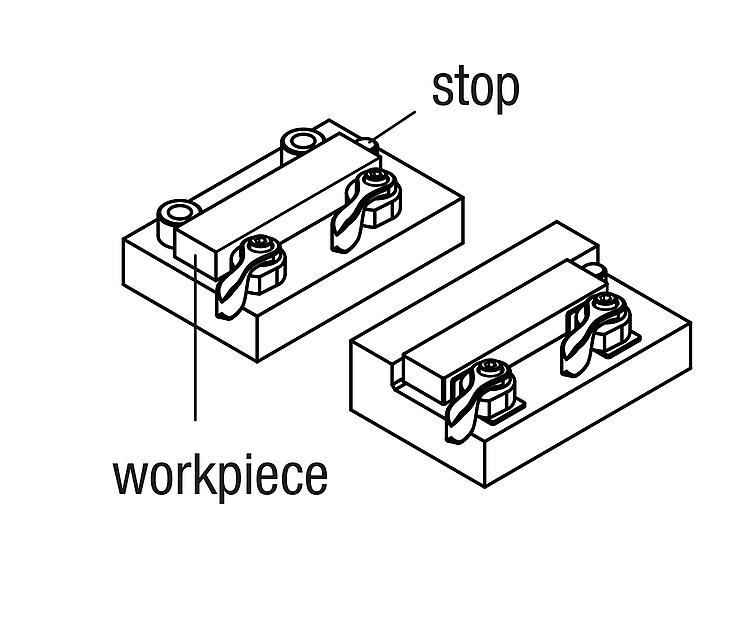

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:Dimension A refers to the distance from the workpiece to screw centre (cam screw).
Form B with clamp plate is recommended to minimise scratches on the workpiece.

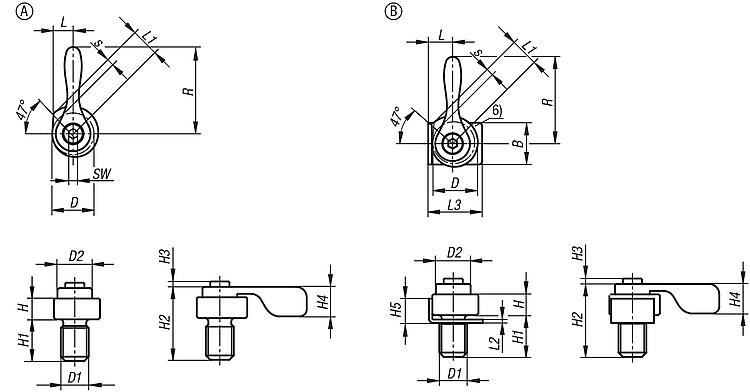

The hexagonal key on the tension lever enables the lever to be mounted in 60° increments, thus aligning it according to the users requirements. Advantages:- Compact design - Rapid and easy clamping of the component - Tool-free clamping with tension leverAccessory:Clamping plate 04431-15.Drawing reference:
(1) Clamping screw (2) Spring washer (3) Tension lever (4) Hex key (5) Cam clamp (6) Clamping plate
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
